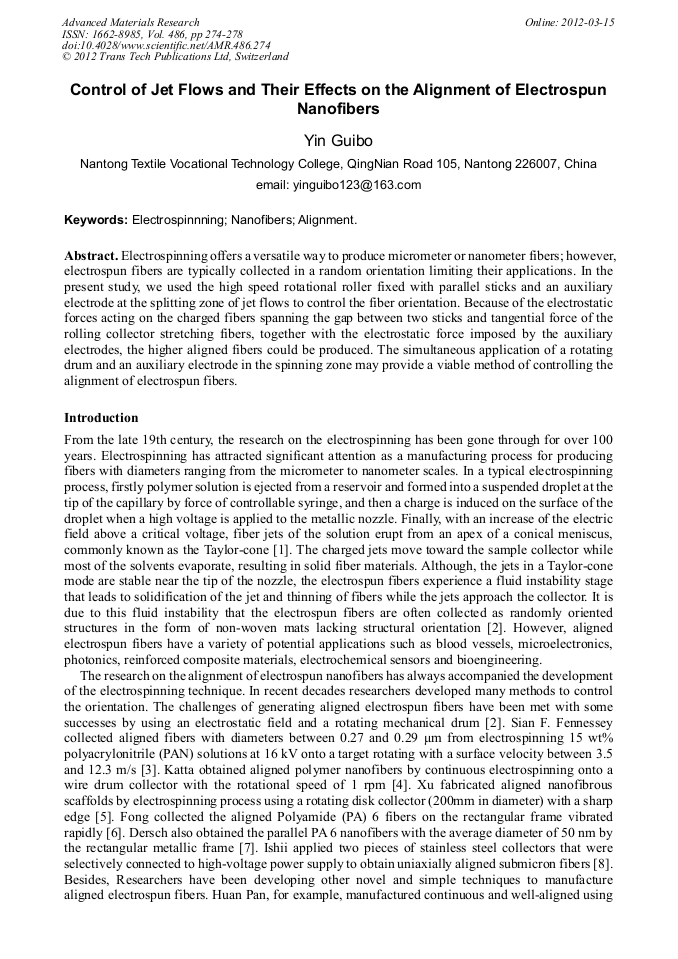

Control of Jet Flows and their Effects on the Alignment of Electrospun Nanofibers

Abstract:

Electrospinning offers a versatile way to produce micrometer or nanometer fibers; however, electrospun fibers are typically collected in a random orientation limiting their applications. In the present study, we used the high speed rotational roller fixed with parallel sticks and an auxiliary electrode at the splitting zone of jet flows to control the fiber orientation. Because of the electrostatic forces acting on the charged fibers spanning the gap between two sticks and tangential force of the rolling collector stretching fibers, together with the electrostatic force imposed by the auxiliary electrodes, the higher aligned fibers could be produced. The simultaneous application of a rotating drum and an auxiliary electrode in the spinning zone may provide a viable method of controlling the alignment of electrospun fibers.

• Periodical: Advanced Materials Research (Volume 486)
• Pages: 274-278
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.486.274
• Online since: March 2012
• Authors: Gui Bo Yin
• Keywords: Alignment, Electro-Spinning, Nanofiber

References

[1] GeunHyung Kim, Young-Sam Cho, Wan Doo Kim: European Poly. J. 42 (2006), p. (2031).

[2] Yiquan Wu, Lisa A. Carnell, Robert L. Clark: Polymer 48 (2007), p.5653.

[3] Sian F. Fennessey, Richard J. Farris: Polymer 45 (2004), p.4217.

[4] Katta, Malessandro, RD Ramsieretal: NanoLetters, 11 (2004), p.2215.

[5] C.Y. Xu, R. Inai, M. Kotaki: Biomaterials 25 (2004), p.877.

[6] H Fong, WD Liu, CS Wang: Polymer 43 (2002), p.775.

[7] Rdersch, TQ Liu, AK Schaper: J. Polym. Sci. A Polym. Chem, 41 (2003), p.545.

[8] Yuya Ishii, Heisuke Sakai, Hideyuki Murata: Materials Letters 62 (2008) 3370.

[9] Huan Pan, Luming Li, Long Hu, Xiaojie Cui: Polymer 47 (2006), p.4901.

[10] Yue Wu, Jian-Yong Yu, Ji-Huan He, Yu-Qin Wan: Chaos, Solitons and Fractals 32 (2007), p.5.

[11] Yang DY, Lu B, ZhaoY; Adv. Mater. 21 (2007), p.3702.

[12] Wee-Eong Teo, Renuga Gopal, Ramakrishnan Ramaseshan: Polymer 48 (2007), p.3.

[13] José Antonio Gómez-Tejedor, Niek Van Overberghe, Patricia Rico: European Polymer Journal 47 (2011), p.119.

[14] Information on: http: /rsbweb. nih. gov/ij/plugins/oval-profile. html.
