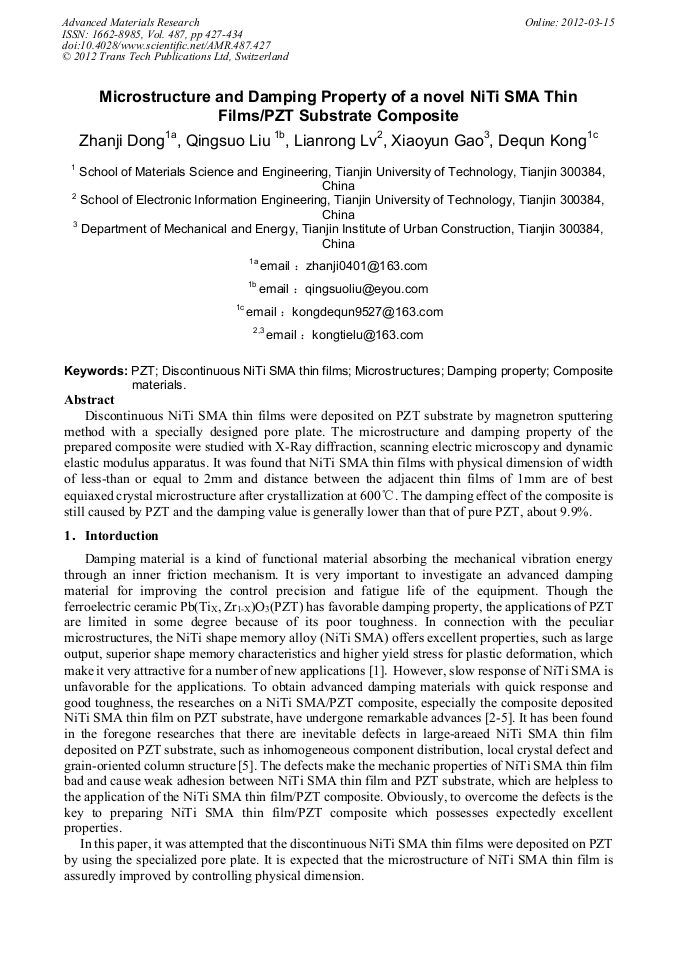

Microstructure and Damping Property of the Discontinuous NiTi SMA Thin Films/PZT Substrate Composite

Abstract:

Discontinuous NiTi SMA thin films were deposited on PZT substrate by magnetron sputtering method with a specially designed pore plate. The microstructure and damping property of the prepared composite were studied with X-Ray diffraction, scanning electric microscopy and dynamic elastic modulus apparatus. It was found that NiTi SMA thin films with physical dimension of width of less-than or equal to 2mm and distance between the adjacent thin films of 1mm are of best equiaxed crystal microstructure after crystallization at 600°C. The damping effect of the composite is still caused by PZT and the damping value is generally lower than that of pure PZT, about 9.9%.

You might also be interested in these eBooks

Emerging Materials and Mechanics Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 487)

Pages:

427-434

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.487.427

Citation:

Cite this paper

Online since:

March 2012

Authors:

Zhan Ji Dong, Qing Suo Liu, Lian Rong Lv, Xiao Yun Gao, De Qun Kong

Keywords:

Composite Material, Damping Property, Discontinuous Niti Sma Thin Films, Microstructure, PZT

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Ishida A, Martynov Valery. Sputter-Deposited shape-memory alloy thin films: properties and applications J. MRS Bulletin. 27 (2002) 111-114.

DOI: 10.1557/mrs2002.46

Google Scholar

[2] Kim Ick-jun, Lee Hee-Woong. Fabrication of TiNi/PZT Heterostructure Films For Smart Systems J. Scripta Material. 44 (2001) 525-530.

DOI: 10.1016/s1359-6462(00)00630-8

Google Scholar

[3] Shen X and Han Jh. Study of a Reduced and Internally Biased Oxide Wafer PZT Actuator and Its Integration with Shape Memory Alloy J. Smart Materials & Structures. 15 (2006) 89-93.

DOI: 10.1088/0964-1726/15/4/n03

Google Scholar

[4] Shen X et al. Study of Rainbow Actuator and its Integration with SMA J. Journal of Intelligent Material Systems And Structures. 19 (2008) 277-281.

DOI: 10.1177/1045389x07083619

Google Scholar

[5] QS Liu, XP Wu. 2009 Preparation of NiTi SMA/PZT Heterogeneity Composite Based on PZT by Magnetron Sputtering Method J. Rare Metal Materials and Engineering. 38: 428-431 [in Chinese].

Google Scholar

[6] Mauro D et al 2000 Implementation and Testing of Passive Control Devices Based on Shape Memory Alloys J. Earthquake Engineer in and Structural Dynamics. 29 (1999) 945-968.

DOI: 10.1002/1096-9845(200007)29:7<945::aid-eqe958>3.0.co;2-#

Google Scholar

[7] JR Cheng. Preparation And Characterization Of The Ferroelectric-Ferroelastic PZT-NiTi Multilayer Films J. Journal Of Functional Materials And Devices. 5 255-261

Google Scholar

[8] Thielicke E and Obermeier E. Mir-actuators and their technologies J. Mechatronics. 10 (2000) 431-455.

Google Scholar

[9] Ben Poquette. High Damping in Piezoelectric Reinforce Metal Matrix Composites J. Journal of Alloys and Compounds. 2 (2004) 281-288.

Google Scholar

[10] Y N Wang et al. Mechanical And Dielectric Loss Related To Ferroelectric And Relaxer Phase Transitions And Domain Walls J. Chinese Journal Of Materials Research. 8 (1994) 2.

Google Scholar
