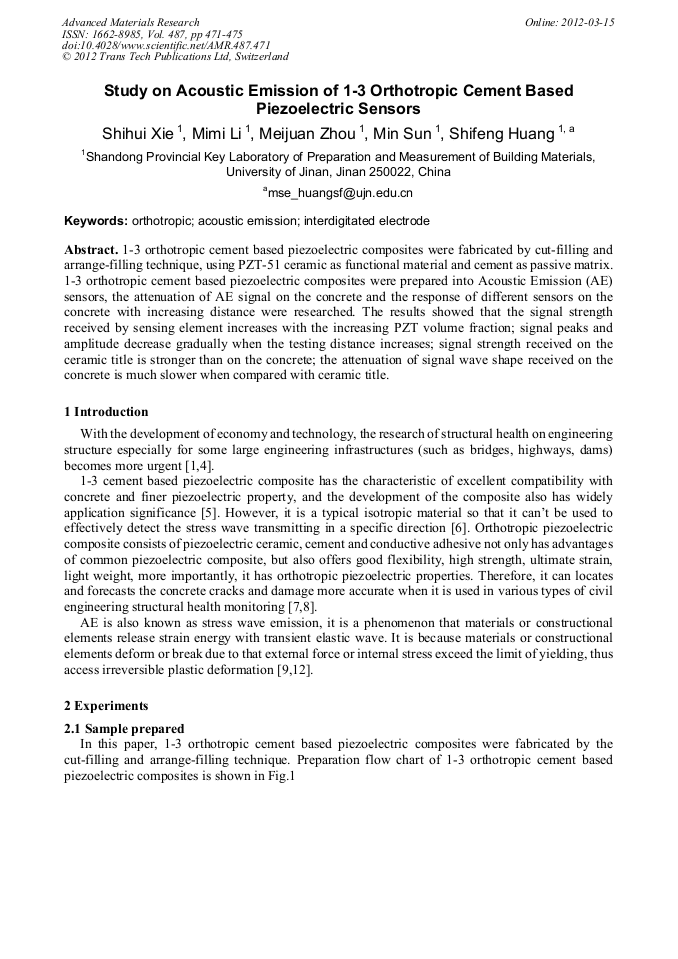

Study on Acoustic Emission of 1-3 Orthotropic Cement Based Piezoelectric Sensors

Abstract:

1-3 orthotropic cement based piezoelectric composites were fabricated by cut-filling and arrange-filling technique, using PZT-51 ceramic as functional material and cement as passive matrix. 1-3 orthotropic cement based piezoelectric composites were prepared into Acoustic Emission (AE) sensors, the attenuation of AE signal on the concrete and the response of different sensors on the concrete with increasing distance were researched. The results showed that the signal strength received by sensing element increases with the increasing PZT volume fraction; signal peaks and amplitude decrease gradually when the testing distance increases; signal strength received on the ceramic title is stronger than on the concrete; the attenuation of signal wave shape received on the concrete is much slower when compared with ceramic title.

• Periodical: Advanced Materials Research (Volume 487)
• Pages: 471-475
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.487.471
• Online since: March 2012
• Authors: Shi Hui Xie, Mi Mi Li, Mei Juan Zhou, Min Sun, Shi Feng Huang
• Keywords: Acoustic Emission (AE), Interdigitated Electrode, Orthotropic

References

[1] Dong B Q, Li Z J: Cement based piezoelectric ceramic smart composites. Sci. Technol. 65(2005) 1363-1371.

DOI: 10.1016/j.compscitech.2004.12.006

[2] Aizawa S, Kakizawa T, Higasino M: Casestudies of smart materials for civil structures. Smart. Mater. Struc. 7(1998) 617-626.

DOI: 10.1088/0964-1726/7/5/006

[3] Zhao G Q, Luo Y, Zhu J G. Study on AE technique of distributed piezoelectric orthotropic. Journal of Vibration,Measurement & Diagnosis. 4(2003) 268-270.

[4] Aftab A. Structural health monitoring of innovative Canadian civil engineering structures. Structural Health Monitoring. 1(2002) 89-103.

DOI: 10.1177/147592170200100106

[5] Zhang Dong, Wu Keru, Li Zongjin. Fabrication and properties of 0-3 cement based piezoelectric smart composites. Journal of Chinese Ceramic Society. 30(2002) 161-166.

[6] LUO Y, LIU H G, ZHAO G Q. Calibration of OPCM sensor for surface elastic waves. Optics and Precision Engineering. 6(2008) 2334-2340.

[7] Chaipanich A. Dielectric and piezoelectric properties of PZT-silica fume cement composites. Curr. Appl. Phyc. 7(2007) 532–536.

DOI: 10.1016/j.cap.2006.10.016

[8] Gu J Z, Wang X W, Luo Y. Orthotropic piezoelectric sensors applied in health monitoring of structure. Journal of Vibration Engineering. 20(2007) 381-387.

[9] Li M, Chen W M, Wang M C. A load simulation method of piezoelectric actuator in FEM for smart structures. Science in China Series E: Technological Sciences. 52(2009) 2576-2584.

DOI: 10.1007/s11431-009-0211-4

[10] Yin H Y, Zhao Y L, Lv H B. Parameter setting of acoustic emission used in concrete nondestructive testing. Concrete. 3(2009) 125-128.

[11] Schse W, Igor Grabec. Intelligent Processing of Acoustic Emission Signal. Journal of Materials Evaluation. 30(1992) 826-854

[12] Geng R S. Developmental status of acoustic emission technique. Nondestructive testing. 20(2001) 151-158.
