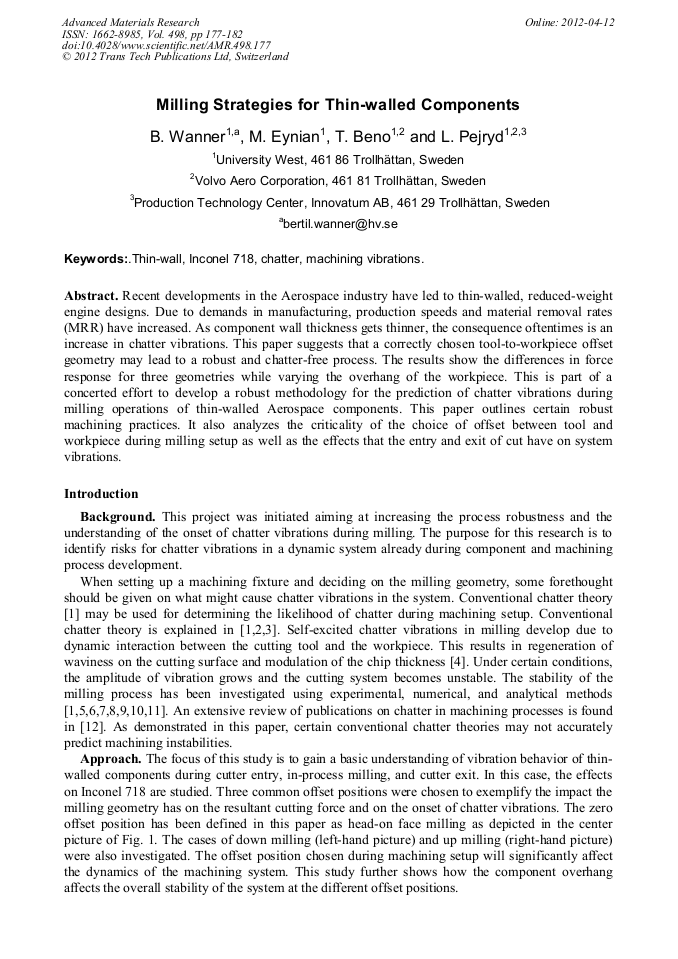

Milling Strategies for Thin-Walled Components

Abstract:

Recent developments in the Aerospace industry have led to thin-walled, reduced-weight engine designs. Due to demands in manufacturing, production speeds and material removal rates (MRR) have increased. As component wall thickness gets thinner, the consequence oftentimes is an increase in chatter vibrations. This paper suggests that a correctly chosen tool-to-workpiece offset geometry may lead to a robust and chatter-free process. The results show the differences in force response for three geometries while varying the overhang of the workpiece. This is part of a concerted effort to develop a robust methodology for the prediction of chatter vibrations during milling operations of thin-walled Aerospace components. This paper outlines certain robust machining practices. It also analyzes the criticality of the choice of offset between tool and workpiece during milling setup as well as the effects that the entry and exit of cut have on system vibrations.

• Periodical: Advanced Materials Research (Volume 498)
• Pages: 177-182
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.498.177
• Online since: April 2012
• Authors: B. Wanner, M. Eynian, T. Beno, L. Pejryd
• Keywords: Chatter, Inconel 718, Machining Vibrations, Thin-Wall

References

[1] Y. Altintas and E. Budak: Annals of the CIRP Vol. 44(1) (1995), pp.357-362.

[2] S. Smith and J. Tlusty: Annals of the CIRP 42(1) (1993), pp.463-466.

[3] S.A. Tobias and W. Fishwick: A Theory of Regenerative Chatter (The Engineer, London 1958).

[4] F. Koenigsberger and J. Tlusty: Machine Tool Structures Vol. 1: Stability Against Chatter (Pergamon Press, 1967).

[5] I. Minis, T. Yanushevsky, R. Tembo and R. Hocken: Annals of the CIRP Vol 39 (1990), pp.459-462.

DOI: 10.1016/s0007-8506(07)61096-8

[6] R. Shridhar, R.E. Hohn and G.W. Long: J. of Eng. for Ind. Vol. 90 (1968), pp.330-334.

[7] E. Budak and Y. Altintas: J. of Dyn. Sys., Meas. and Control Vol. 120 (1998), pp.31-36.

[8] E. Budak and Y. Altintas: J. of Dyn. Sys., Meas. and Control Vol. 120 (1998), pp.22-30.

[9] J. Tlusty and F. Ismail: Annals of the CIRP Vol. 30(1) (1981), pp.299-304.

[10] S.A. Tobias: Machine Tool Vibration (Blackie and Sons Ltd., 1965).

[11] L. Arnaud, O. Gonzalo, S. Seguy, H. Jauregi and G. Peigue: Int. J. Adv. Manuf. Technol. (2010).

[12] G. Quintana and J. Ciurana: Int. J. of Mach. Tools and Manuf. Vol. 51 (5) (2011), p.363–376.
