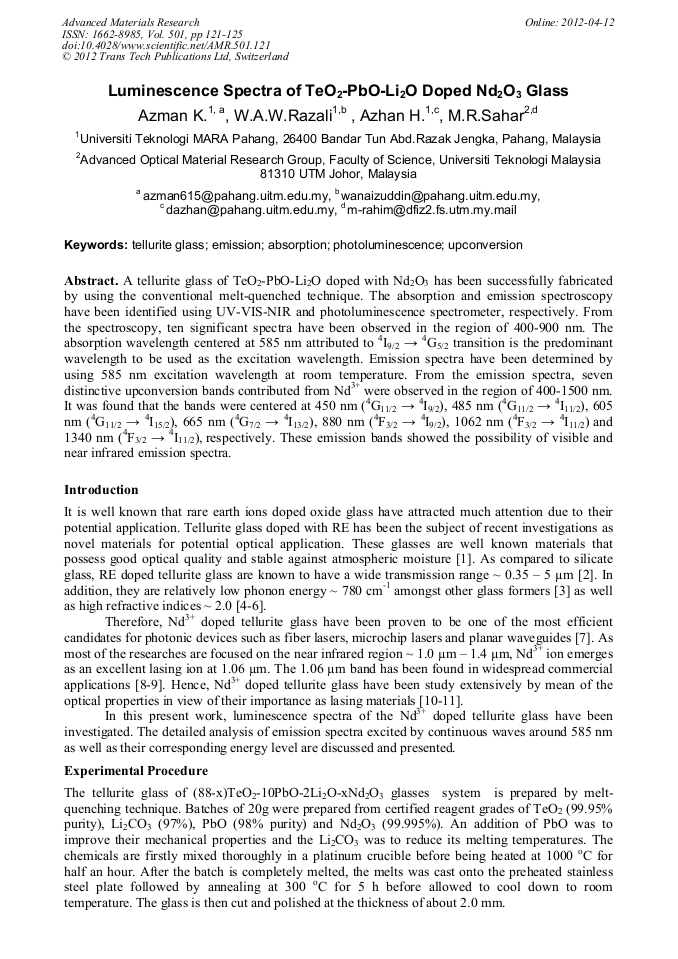

Luminescence Spectra of TeO₂-PbO-Li₂O Doped Nd₂O₃ Glass

Abstract:

A tellurite glass of TeO2-PbO-Li2O doped with Nd2O3 has been successfully fabricated by using the conventional melt-quenched technique. The absorption and emission spectroscopy have been identified using UV-VIS-NIR and photoluminescence spectrometer, respectively. From the spectroscopy, ten significant spectra have been observed in the region of 400-900 nm. The absorption wavelength centered at 585 nm attributed to 4I9/2 → 4G5/2 transition is the predominant wavelength to be used as the excitation wavelength. Emission spectra have been determined by using 585 nm excitation wavelength at room temperature. From the emission spectra, seven distinctive upconversion bands contributed from Nd3+ were observed in the region of 400-1500 nm. It was found that the bands were centered at 450 nm (4G11/2 → 4I9/2), 485 nm (4G11/2 → 4I11/2), 605 nm (4G11/2 → 4I15/2), 665 nm (4G7/2 → 4I13/2), 880 nm (4F3/2 → 4I9/2), 1062 nm (4F3/2 → 4I11/2) and 1340 nm (4F3/2 → 4I11/2), respectively. Tthese emission bands showed the possibility of visible and near infrared emission spectra.

• Periodical: Advanced Materials Research (Volume 501)
• Pages: 121-125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.501.121
• Online since: April 2012
• Authors: K. Azman, W.A.W. Razali, H. Azhan, M.R. Sahar
• Keywords: Absorption, Emission, Photoluminescence (PL), Tellurite Glass, Upconversion

References

[1] Kumar,K., Rai, S.B., Anita Rai, Strong blue emission from Pr3+ ions through energy transfer process from Nd3+ to Pr3+ via Yb3+ in tellurite glass, J.Spectrochimica Acta Part A 71 (2008) 508-512.

DOI: 10.1016/j.saa.2007.12.043

[2] Wade S.A., Collins, S.F., Baxter, G.W., (2003), Rare Earth Doped Optical Fibers for Temperature Sensing Utilizing Ratio-Based Technology, J.Appl.Phys. 94 (2003) 4743.

[3] Koepke, Cz., Wisniewski, K., Sikorski, L., Piatkowski, D., Kowalska, K., Naftaly, M., Upconverted luminescence under 800 nm laser diode excitation in Nd3+-activated fluoroaluminate glass, J.Opt. Mat. 28 (2006) 129-136.

DOI: 10.1016/j.optmat.2004.10.034

[4] Nazabal V., Todoroki S., Nukui A., Matsumoto T., Suehara S., Hondo T., Araki, T., Inuoe S., Rivero C., Cardinal T., Oxyfluoride tellurite glasses doped by erbium: thermal analysis, structural organization and spectral properties, J.Non-Cryst. Solids 325 (2003) 85-102.

DOI: 10.1016/s0022-3093(03)00313-2

[5] Lin H., Tanabe S., Lin L., Yang D.L., Liu K., Wong W.H., Yu J.Y., Pun E.Y.B., Infrequent blue and green emission transitions from Eu3+ in heavy metal tellurite glasses with low phonon energy, J. Phys. Lett. A 358 (2006) 474-477.

DOI: 10.1016/j.physleta.2006.05.066

[6] Wang J.S., Vogel E.M., Snitzer E., Jackel J.L., Da Silva V.L., Silberberg Y., 1.3 μm emission of neodymium and praseodymium in tellurite-based glasses, J. Non-Cryst. Solids 178 (1994) 109-113.

DOI: 10.1016/0022-3093(94)90273-9

[7] Kumar K.U, Prahyusha V.A. Babu,P., Jayashankar C.K., Joshi A.S., Spehgini,A., Bettinelli,M., Fluorescence properties of Nd3+-doped tellurite glasses, J.Spectrochimica Acta Part A 67 (2007) 702-708.

DOI: 10.1016/j.saa.2006.08.027

[8] Ramli A., M.R. Sahar, Optical absorption spectrum and Judd-Ofelts analysis study of Eu3+ doped zinc oxychloride tellurite glasses, J.Solid State Sci.Tech. 16 (2008) 29-36.

[9] Koepke,Cz., Wisniewski, K., Sikorski,L.,Piatkowski,D.,Kowalska,K., Naftaly,M., Upconverted luminescence under 800 nm laser diode excitation in Nd3+-activated fluoroaluminate glass, J.Opt. Mat. 28 (2006) 129-136.

DOI: 10.1016/j.optmat.2004.10.034

[10] M.R. Sahar, K.Sulhadi, M.S. Rohani, The preparation and structural studies in the (80 − x)TeO2–20ZnO–(x)Er2O3 glass system, J.Non-Cryst.Solids 354 (2008) 1179-1181.

DOI: 10.1016/j.jnoncrysol.2006.12.127

[11] Azman K., M.R. Sahar, M.S. Rohani, Ramli A., Electronic absorption spectra and optical band gap of Neodymium doped tellurite glass, J. Solid State Sci.Tech. Lett. 15 (2008) 33-37.

[12] Singh,A., Nath,P., Absorption spectra of Holmium ion in glasses, Glass Ceram. Bull. 22 (1983) 46-51.

[13] Ravi K. Kumar V.V., Bhatnagar A.K., Jagannathan,R. Structural and optical studies of Pr3+, Nd3+, Er3+ and Eu3+ ions in tellurite based oxyfluoride, TeO2-LiF glass, J.Phys. D: Appl.Phys. 34 (2001) 1563-1568.

DOI: 10.1088/0022-3727/34/11/301

[14] Amorim H.T., Vermelho M.V.D., Gouveia-Neto A.S., Cassanjes F.C., Ribeiro S.J.L., Messaddeq,Y., Energy upconversion luminescence in neodymium-doped tellurite glass, J. Alloys Comp. 346 (2002) 282-284.

DOI: 10.1016/s0925-8388(02)00513-3

[15] Cases R., Chamarro M.A., Alcala R., Rodriguez V.D., Optical properties of Nd3+ and Dy3+ ions in ZnF2 based glasses, J. Lumin. 48 & 49 (1991) 509-514.

DOI: 10.1016/0022-2313(91)90181-t
