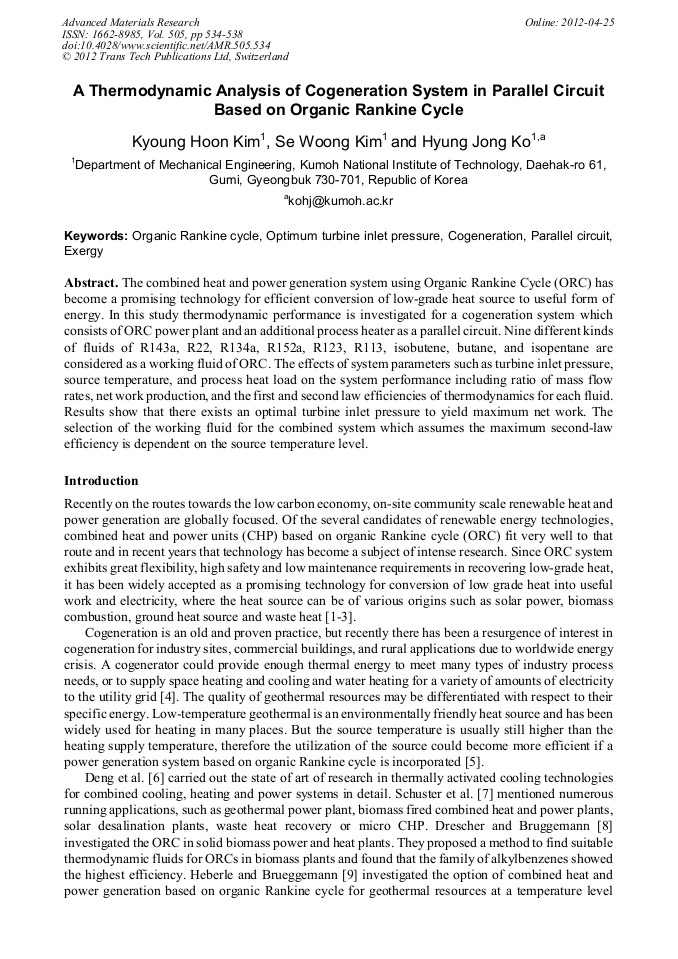

A Thermodynamic Analysis of Cogeneration System in Parallel Circuit Based on Organic Rankine Cycle

Abstract:

The combined heat and power generation system using Organic Rankine Cycle (ORC) has become a promising technology for efficient conversion of low-grade heat source to useful form of energy. In this study thermodynamic performance is investigated for a cogeneration system which consists of ORC power plant and an additional process heater as a parallel circuit. Nine different kinds of fluids of R143a, R22, R134a, R152a, R123, R113, isobutene, butane, and isopentane are considered as a working fluid of ORC. The effects of system parameters such as turbine inlet pressure, source temperature, and process heat load on the system performance including ratio of mass flow rates, net work production, and the first and second law efficiencies of thermodynamics for each fluid. Results show that there exists an optimal turbine inlet pressure to yield maximum net work. The selection of the working fluid for the combined system which assumes the maximum second-law efficiency is dependent on the source temperature level.

• Periodical: Advanced Materials Research (Volume 505)
• Pages: 534-538
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.505.534
• Online since: April 2012
• Authors: Kyoung Hoon Kim, Se Woong Kim, Hyung Jong Ko
• Keywords: Cogeneration, Exergy, Optimum Turbine Inlet Pressure, Organic Rankine Cycle (ORC), Parallel Circuit

References

[1] D. Mikielewicz and J. Mikielewicz: App. Therm. Eng. Vol. 30 (2010), p.2357.

[2] S.R. Wood and P.N. Rowley: Biomass and Bioenergy. Vol. 35 (2011), p.3849.

[3] K.H. Kim and C.H. Han: Adv. Sci. Lett. (2011), in press.

[4] N.T. Raj, S. Iniyan and R. Goic: Energy Reviews, Vol. 15 (2011), p.3640.

[5] T. Guo, H.X. Wang and S.J. Zhang: Energy Convs. Mgmt Vol. 52 (2011), p.2384.

[6] J. Deng, R.Z. Wang and G.Y. Han: Progress Energy Comb. Sci. Vol. 37 (2011), p.172.

[7] A. Schuster, S. Karellas and H. Splithoff: App. Therm. Eng. Vol. 29 (2008), p.1809.

[8] U. Drescher and D. Brueggemann: App. Therm. Eng. Vol. 29 (2007), p.223.

[9] F. Heberle and D. Brueggemann: App. Therm. Eng. Vol. 30 (2010), p.1326.

[10] T. Yang, G.J. Chen and T.M. Guo: Chem. Eng. J. Vol. 67 (1997), p.27.
