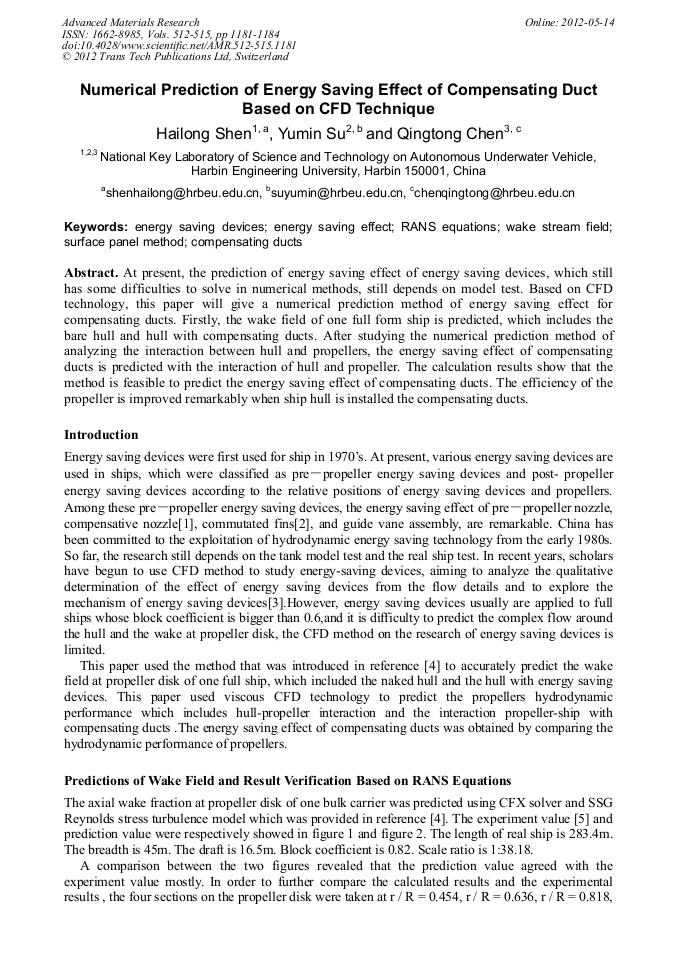

Numerical Prediction of Energy Saving Effect of Compensating Duct Based on CFD Technique

Abstract:

At present, the prediction of energy saving effect of energy saving devices, which still has some difficulties to solve in numerical methods, still depends on model test. Based on CFD technology, this paper will give a numerical prediction method of energy saving effect for compensating ducts. Firstly, the wake field of one full form ship is predicted, which includes the bare hull and hull with compensating ducts. After studying the numerical prediction method of analyzing the interaction between hull and propellers, the energy saving effect of compensating ducts is predicted with the interaction of hull and propeller. The calculation results show that the method is feasible to predict the energy saving effect of compensating ducts. The efficiency of the propeller is improved remarkably when ship hull is installed the compensating ducts.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 1181-1184
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.1181
• Online since: May 2012
• Authors: Hai Long Shen, Yu Min Su, Qing Tong Chen
• Keywords: Compensating Ducts, Energy Saving Effect, Energy-Saving Device, RANS Equations, Surface Panel Method, Wake Stream Field

References

[1] Ou Lijian, Li Jieya, Wang Zhiyong et al (2000). A study on the application of the compensating duct on the twin-tail fin ship. Journal of South China University of Technology, 28(6):49-52.

[2] Liu Qimin, Zhu Lan, Wangzhengyao et al.(2007). Research and its application of the mechanism about the vertica commutating fin before screw at stern for reducing vibration. Ship Engineering, 29(6):50-53.

[3] Huang Sheng, Zhu Xiangyuan, Guo Chunyu et al.(2007). CFD simulation of propeller and rudder performance when using additional thrust fins. Journal of Marine Science and Application, 6(4):27-31.

DOI: 10.1007/s11804-007-7023-3

[4] SHEN Hai-long, SU Yu-min (2008). Study of mesh partition methods for numerical simulation of flow field of full form ships. Journal of Harbin Engineering University, 29(11)：1190-1198.

[5] Henrik Andreasson (2003). 175000 TDW bulk carrier Calm water model tests. Sweden: SSPA.

[6] SHEN Hai-long,SU Yu-min (2010). Study on the interaction between ship hull and propeller based on sliding mesh technique. Journal of Harbin Engineering University, 31(1)：1-7.
