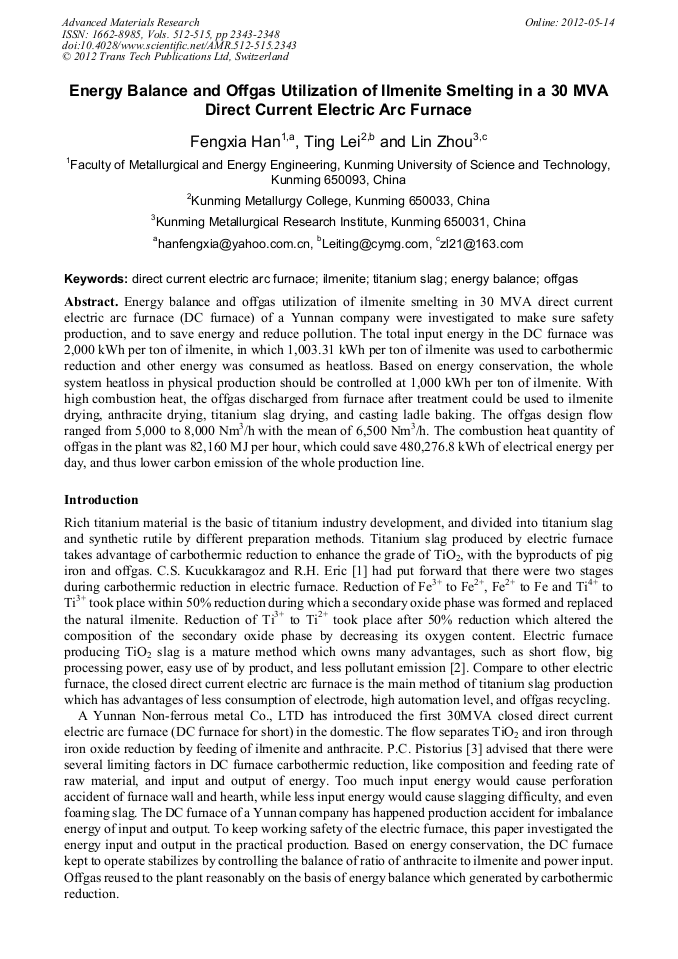

Energy Balance and Offgas Utilization of Ilmenite Smelting in a 30 MVA Direct Current Electric Arc Furnace

Abstract:

Energy balance and offgas utilization of ilmenite smelting in 30 MVA direct current electric arc furnace (DC furnace) of a Yunnan company were investigated to make sure safety production, and to save energy and reduce pollution. The total input energy in the DC furnace was 2,000 kWh per ton of ilmenite, in which 1,003.31 kWh per ton of ilmenite was used to carbothermic reduction and other energy was consumed as heatloss. Based on energy conservation, the whole system heatloss in physical production should be controlled at 1,000 kWh per ton of ilmenite. With high combustion heat, the offgas discharged from furnace after treatment could be used to ilmenite drying, anthracite drying, titanium slag drying, and casting ladle baking. The offgas design flow ranged from 5,000 to 8,000 Nm³/h with the mean of 6,500 Nm³/h. The combustion heat quantity of offgas in the plant was 82,160 MJ per hour, which could save 480,276.8 kWh of electrical energy per day, and thus lower carbon emission of the whole production line.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 2343-2348
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.2343
• Online since: May 2012
• Authors: Feng Xia Han, Ting Lei, Lin Zhou
• Keywords: Direct Current Electric Arc Furnace, Energy Balance, Ilmenite, Offgas, Titanium Slag

References

[1] C.S. Kucukkaragoz, R. H.Eric. J. Minerals Engineering. Vol.19 (2006), p.334

[2] D.C. Li, H. Liu, D.L. Zhou: Process of Titanium Smelting (Chemical Industry Press, China 2009), In Chinese.

[3] P.C. Pistorius. J. The Southern African Institute of Mining and Metallurgy. Vol.108 (2008), p.35

[4] S.L. Yang, J.F. Sheng: Titanium Slag and Pig Iron Smelting Technology (Metallurgy Industry Press, China 2006), In Chinese.

[5] W. Mo: Titanium (Metallurgy Industry Press, China 2008), In Chinese.

[6] J. Muller, J.H. Zietsman. INFACON XI. (2007), p.837

[7] P. C. Pistorius. J. Scandinavian Journal of Metallurgy. Vol.31 (2002), p.120

[8] F.X. Han, T. Lei, L. Zhou, S.H. Huang. G.G. Lv, in: Ratio of Anthracite to Ilmenite of Titanium Slag Smelted by the 30 MVA DC Arc Furnace accepted by Chinese Journal of Rare Metals, In Chinese.

[9] Coletle Coetzee. Solidification Behaviour of Titania Slags. Pretoria: the Built Environment and Information Technology University of Pretoria, 2003.

[10] J.Y. Lang, Y.C. Che. Databook of Thermodynamics of Inorganic Substance. (Northeast University Press, China 1993), In Chinese.

[11] F.X. Han, T. Lei, S.H. Huang, L. Zhou, J. Zou. J. Light Metals. Vol. 1(2011), p.48

[12] M. Gous. Southern African Pyrometallurgy (2006), p.189
