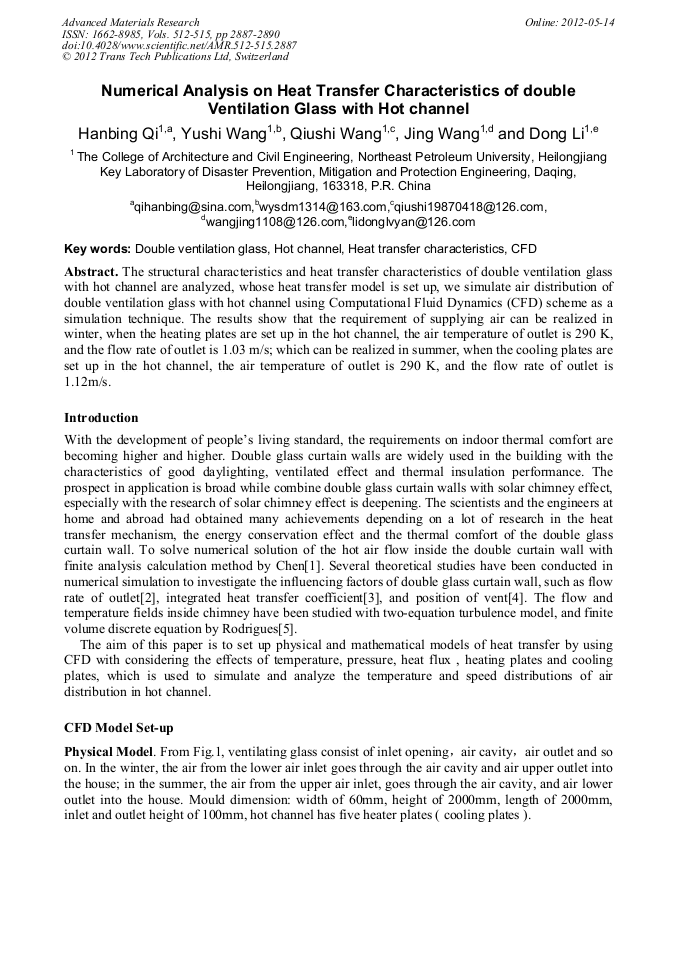

Numerical Analysis on Heat Transfer Characteristics of Double Ventilation Glass with Hot Channel

Abstract:

The structural characteristics and heat transfer characteristics of double ventilation glass with hot channel are analyzed, whose heat transfer model is set up, we simulate air distribution of double ventilation glass with hot channel using Computational Fluid Dynamics (CFD) scheme as a simulation technique. The results show that the requirement of supplying air can be realized in winter, when the heating plates are set up in the hot channel, the air temperature of outlet is 290 K, and the flow rate of outlet is 1.03 m/s; which can be realized in summer, when the cooling plates are set up in the hot channel, the air temperature of outlet is 290 K, and the flow rate of outlet is 1.12m/s.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 2887-2890
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.2887
• Online since: May 2012
• Authors: Han Bing Qi, Yu Shi Wang, Qiu Shi Wang, Jing Wang, Dong Li
• Keywords: Computational Fluid Dynamics (CFD), Double Ventilation Glass, Heat Transfer Characteristic, Hot Channel

References

[1] H. Chen, Q.H. Jiang, J.J. Gou, and K.C. Zhang, et al: J. Acta Scientiarum Naturalium Universitatis Sunyatseni, Vol. 44(2005), p.34 (In Chinese)

[2] T.Liu, P.D.Gu, S.X. Wei: J. Journal of Dong Hua University( Natural Science), Vol. 34(2008), p.486 (In Chinese)

[3] Y.F. Gao, L.H. Zhao, L.Li, et al: J. HV&AC, Vol. 37(2007), p.20 (In Chinese)

[4] C.H. Zhou, Y.G.Wu, H.L. Chen: J. Sichuan Building Science, Vol. 37(2) (2011), p.256 (In Chinese)

[5] A.M. Rodrigues, A .Canha, A . Lahellec, et al: J. Building and Environment, Vol. 35(2000)， p.455 (In Chinese)
