Preparation of Unburned Brick from the High Titania Blast Furnace Slag and Styrene-Acrylate Emulsion

Xiang Wen Kong; Dan Wang

doi:10.4028/www.scientific.net/AMR.512-515.2982

Paper Titles

Chlorine Ion Penetration Resistance of Concretes Containing Super-Fine Limestone Powder
p.2961

Fatigue Property Analysis of Modified Asphalt Emulsion-Cement Cold Recycling Mixtures
p.2965

Green Transformation Technology Suitability Research of Existing Office Building
p.2972

High-Volume Fly Ash Concrete for Sustainable Construction
p.2976

Preparation of Unburned Brick from the High Titania Blast Furnace Slag and Styrene-Acrylate Emulsion
p.2982

SCC Produced with Recycled Concrete Aggregates
p.2986

The Antibacterial Property of La³⁺/ZnO Rare Earth Compound Antibacterial Imitation Porcelain Paint
p.2990

The Applied Research for Filling Subgrade with Construction Waste
p.2995

The Frost Resistance of High Strength Concrete Containing Super-Fine Mineral Admixture
p.2999

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 512-515Preparation of Unburned Brick from the High...

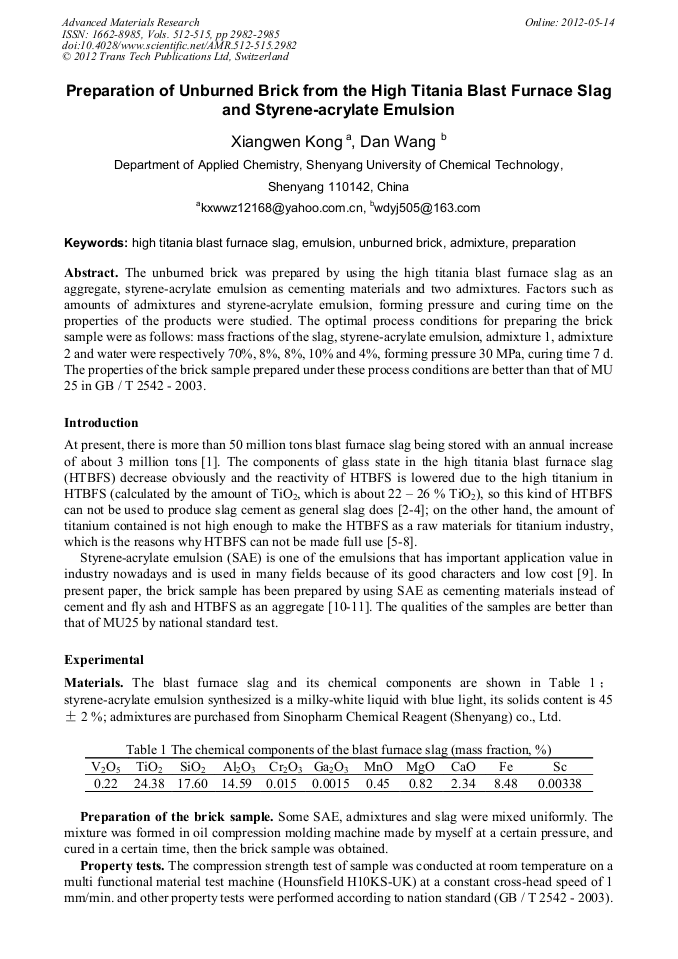

Preparation of Unburned Brick from the High Titania Blast Furnace Slag and Styrene-Acrylate Emulsion

Abstract:

The unburned brick was prepared by using the high titania blast furnace slag as an aggregate, styrene-acrylate emulsion as cementing materials and two admixtures. Factors such as amounts of admixtures and styrene-acrylate emulsion, forming pressure and curing time on the properties of the products were studied. The optimal process conditions for preparing the brick sample were as follows: mass fractions of the slag, styrene-acrylate emulsion, admixture 1, admixture 2 and water were respectively 70%, 8%, 8%, 10% and 4%, forming pressure 30 MPa, curing time 7 d. The properties of the brick sample prepared under these process conditions are better than that of MU 25 in GB / T 2542 - 2003.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 512-515)

Pages:

2982-2985

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.512-515.2982

Citation:

Cite this paper

Online since:

May 2012

Authors:

Xiang Wen Kong, Dan Wang

Keywords:

Admixture, Emulsion, High Titania Blast Furnace Slag, Preparation, Unburned Brick

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Mingyu Wang, Xiaohua Liu and Zhitong Sui: Multipurpose Utilization of Mineral Resources Vol. 32, No.3 (2003), pp.28-30 (In Chinese).

Google Scholar

[2] Yatang Dai and Kefeng Tan: Journal of Southwest University of Science and Technology Vol. 18, No.3 (2003), pp.39-42 (In Chinese).

Google Scholar

[3] Rongli Fang and Chengchang Jin: Multipurpose Utilization of Mineral Resources Vol. 19, No.2 (1998), pp.46-48 (In Chinese).

Google Scholar

[4] Bingcheng Meng, Chaohui Zhang and Jiantao Ju: Hydrometallurgy of China Vol. 30, No.1 (2011), pp.6-4 (In Chinese).

Google Scholar

[5] Shuijing Gao and Wenli Zhang: Shandong Ceramics Vol. 29, No.5 (2006), pp.29-31 (In Chinese).

Google Scholar

[6] Junhan Li, Kehui Qiu and Yinchun Gong: Sichuan Chemical Industry Vol. 13, No.2 (2010), pp.21-25 (In Chinese).

Google Scholar

[7] H. Shen and E. Forssberg: Waste Management Vol. 23(2003), pp.933-949.

Google Scholar

[8] Beixing Li, Wenquan Liang and Zhen He: Cement and Concrete Research Vol. 32(2002), pp.1341-1344.

Google Scholar

[9] Pinhua Liu, Fen Yang and Qing Li: Chemical World Vol. 45, No.2 (2004), pp.77-78 (In Chinese).

Google Scholar

[10] Xiwen Sun, Jiantao Zhang, Zhiyuan Yang, Tiancai You and Yun Liu: New Building Materials Vol. 20, No.3 (2003), pp.5-7 (In Chinese).

Google Scholar

[11] Baogui Ma, Yong Li and Hualing Xie: Block-Brick-Tile Vol. 24, No.2 (1995), pp.30-34 (In Chinese).

Google Scholar
