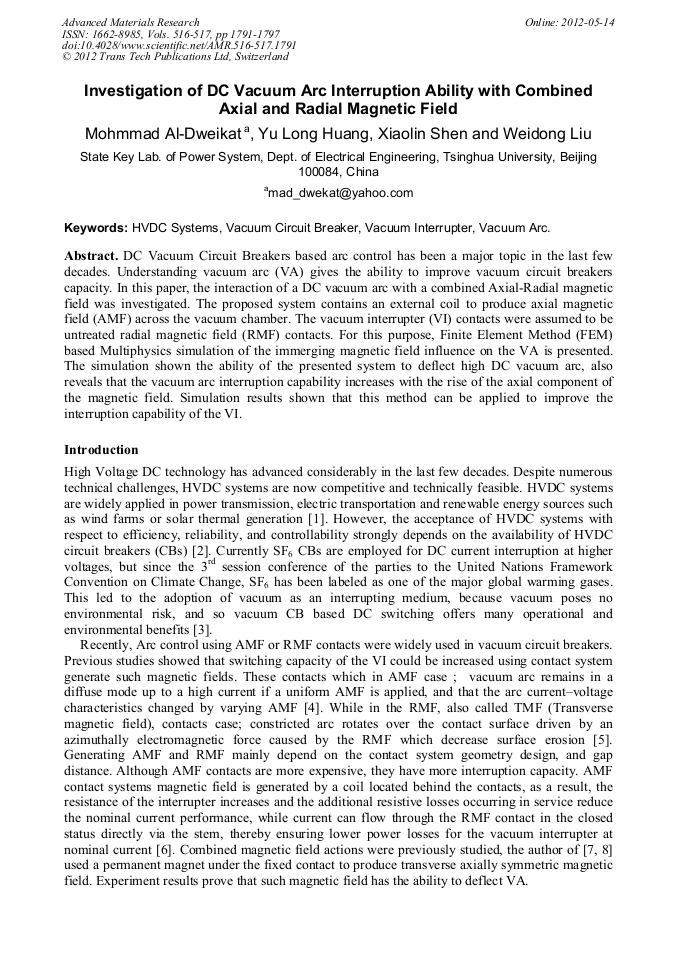

Investigation of DC Vacuum Arc Interruption Ability with Combined Axial and Radial Magnetic Field

Abstract:

DC Vacuum Circuit Breakers based arc control has been a major topic in the last few decades. Understanding vacuum arc (VA) gives the ability to improve vacuum circuit breakers capacity. In this paper, the interaction of a DC vacuum arc with a combined Axial-Radial magnetic field was investigated. The proposed system contains an external coil to produce axial magnetic field (AMF) across the vacuum chamber. The vacuum interrupter (VI) contacts were assumed to be untreated radial magnetic field (RMF) contacts. For this purpose, Finite Element Method (FEM) based Multiphysics simulation of the immerging magnetic field influence on the VA is presented. The simulation shown the ability of the presented system to deflect high DC vacuum arc, also reveals that the vacuum arc interruption capability increases with the rise of the axial component of the magnetic field. Simulation results shown that this method can be applied to improve the interruption capability of the VI.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 1791-1797
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.1791
• Online since: May 2012
• Authors: Mohmmad Al Dweikat, Yu Long Huang, Xiao Lin Shen, Wei Dong Liu
• Keywords: HVDC System, Vacuum Circuit Breaker, Vacuum Interrupter, Vacuum-Arc

References

[1] Chan-Ki Kim, Vijai K. Sood , Gil – Soo Jang , Seong-Joo Lim and Seok-Jin Lee: HVDC Transmission: Power Conversion Applications in Power Systems, IEEE Press, John Wiley & Sons (Asia), Singapore 2009.

DOI: 10.1002/9780470822975

[2] Christian M. Franck in: HVDC Circuit Breakers: A Review Identifying Future Research Needs, IEEE Trans on Power Delivery, Vol. 26, No. 2, April 2011.

DOI: 10.1109/tpwrd.2010.2095889

[3] A.Iturregi, E.Torres, I. Zamora and O. Abarrategui, High Voltage Circuit Breakers: SF6 vs. Vacuum, International Conference on Renewable Energies and Power Quality (ICREPQ'09), Valencia (Spain), 15-17th April, 2009.

DOI: 10.24084/repqj07.458

[4] Dr. Harald Fink, Dr. Markus Heimbach and Dr. Wenkai Shang: Vacuum interrupters with axial magnetic field contacts, ABB Technology Review, 1/2000, pp.59-64

DOI: 10.1109/27.964466

[5] R. Renz: On Criteria of Optimized Application of AMF and RMF Contact Systems in Vacuum Interrupters, Siemens AG, Berlin

DOI: 10.1109/deiv.2000.877279

[6] Philippe Picot: Vacuum Switching, Cahier Technique Schneider Electric no. 198. p.30, March 2000.

[7] Dmitri F. Alferov, Valerii P. Ivanov, and Vladimir A. Sidorov: Characteristics of DC Vacuum Arc in the Transverse Axially Symmetric Magnetic Field, IEEE Transaction on Plasma Science, Vol. 31, No. 5, October 2003, pp.918-922

DOI: 10.1109/tps.2003.818439

[8] Dmitri F. Alferov, Dmitriy V. Yevsin, and Y. I. Londer: Studies of the Stable Stage of the Electric Arc Burning at the Contact Separation in a Vacuum Gap With a Transverse Magnetic Field, IEEE Transactions on Plasma Science, Vol. 35, No. 4, August 2007, pp.953-958

DOI: 10.1109/tps.2007.896754

[9] Hans Schellekens: Arc behavior in axial magnetic field vacuum interrupters equipped with an external coil, IEEE 18th Int. Symp. On Discharges and Electrical Insulation in Vacuum, Eindhoven, I996, pp.514-517

DOI: 10.1109/deiv.1998.738704

[10] Jouya Jadidian, Kaveh Niayesh and Ehsan Hashemi: a Novel Method for High Current Vacuum Arc Interruption Using Externally Applied Ultra High Axial Pulsed Magnetic Field, J. Plasma Fusion Res. SERIES, Vol. 8, 2009, pp.1496-1500

DOI: 10.1109/plasma.2008.4590937

[11] A. Hayati Soloot, A. Gholami, J. Jadidian and K. Niayesh: Dielectric Recovery of Vacuum Circuit Breaker after Interruption of High Current Arcs in Presence of Very Intense AMF, Proceedings of the 16th International Symposium on High Voltage Engineering, SAIEE, Innes House, Johannesburg, (2009)

[12] Jouya Jadidian, Kaveh Niayesh, Ehsan Hashemi, Edris Agheb and Amir A. Shayegani: Numerical Simulation of an Explosively Driven HVDC Circuit Breaker, J. Plasma Fusion Res. SERIES, Vol. 8, 2009, pp.1491-1495

DOI: 10.1109/plasma.2008.4590813

[13] Jouya Jadidian: Multiphysics Simulation of High Current Vacuum Arc in an Intense Pulsed Axial Magnetic Field, Proceedings of the COMSOL Conference, Boston, (2010)

[14] Lijun Wang, Shenli Jia, Ke Liu, Liuhuo Wang and Zongqian Shi: Numerical simulation of high-current vacuum arc characteristics under combined action of axial magnetic field and external magnetic field from bus bar, Phys. Plasmas 16, (2009)

DOI: 10.1063/1.3246006

[15] Ingmar Kleberg and Wenkai Shang: Understanding arcing: Simulation of high current vacuum arcs, ABB Tech. Review, 1/2004, pp.22-27

[16] Jouya Jadidian in: a Compact Design for High Voltage Direct Current Circuit Breaker, IEEE Trans. on Plasma Science, Vol. 37, No. 6, June, 2009, p.1085 – 1091

DOI: 10.1109/tps.2009.2019979

[17] Dong En-yuan, Zou Ji-yan and Cong Ji-yuan: Development of a Novel DC Vacuum Circuit Breaker, IEEE Trans. Power Switchgear, 2004, pp.629-631

DOI: 10.1109/deiv.2004.1422698
