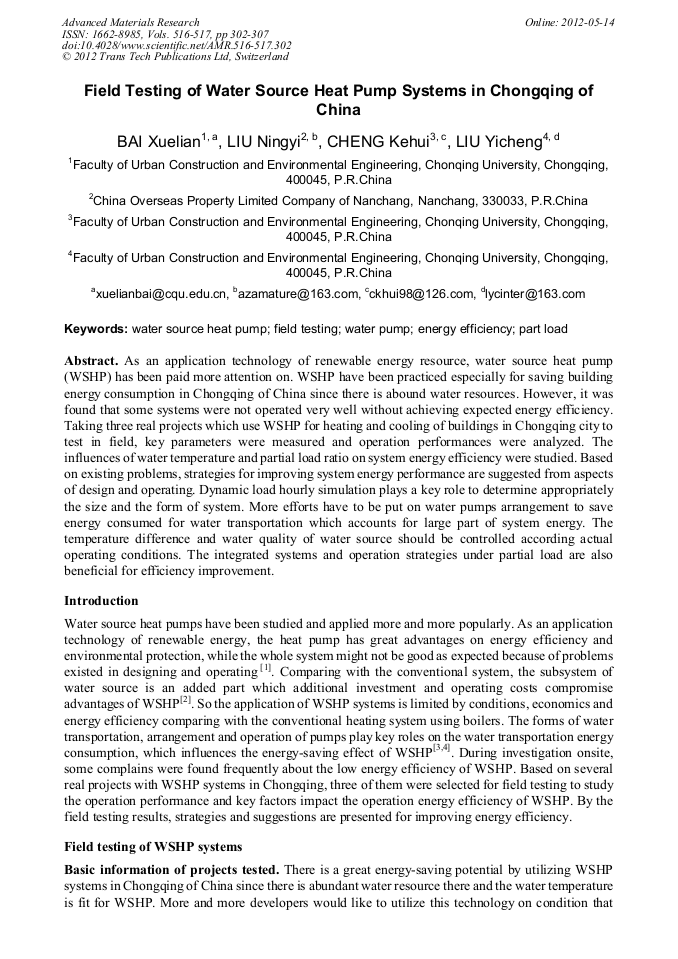

Field Testing of Water Source Heat Pump Systems in Chongqing of China

Abstract:

As an application technology of renewable energy resource, water source heat pump (WSHP) has been paid more attention on. WSHP have been practiced especially for saving building energy consumption in Chongqing of China since there is abound water resources. However, it was found that some systems were not operated very well without achieving expected energy efficiency. Taking three real projects which use WSHP for heating and cooling of buildings in Chongqing city to test in field, key parameters were measured and operation performances were analyzed. The influences of water temperature and partial load ratio on system energy efficiency were studied. Based on existing problems, strategies for improving system energy performance are suggested from aspects of design and operating. Dynamic load hourly simulation plays a key role to determine appropriately the size and the form of system. More efforts have to be put on water pumps arrangement to save energy consumed for water transportation which accounts for large part of system energy. The temperature difference and water quality of water source should be controlled according actual operating conditions. The integrated systems and operation strategies under partial load are also beneficial for efficiency improvement.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 302-307
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.302
• Online since: May 2012
• Authors: Xue Lian Bai, Ning Yi Liu, Ke Hui Cheng, Yi Cheng Liu
• Keywords: Energy Efficiency, Field Testing, Part Load, Water Pump, Water Source Heat Pump (WSHP)

References

[1] Wei Xu. Report on China ground-source heat pump (2008)[M]. Beijing: China Architecture & Building Press, 2008. (in Chinese)

[2] Hepbasli Arif, Tolga Balta M. A study on modeling and performance assessment of a heat pump system for utilizing low temperature geothermal resources in buildings [J]. Building and Environment, 2007 (42): 3747-56.

DOI: 10.1016/j.buildenv.2006.09.003

[3] Chua K J, Chou S K, Yang W M. Advances in Heat Pump Systems: A Review [J].Applied Energy, 2010 (87): 3611-24.

DOI: 10.1016/j.apenergy.2010.06.014

[4] Buyukalaca O, Ekinci F, Yilmaz T. Experimental investigation of Seyhan River and dam lake as heat source-sink for a heat pump[J]. Energy, 2003 (28): 157-69.

DOI: 10.1016/s0360-5442(02)00088-9

[5] WeiYang, JinZhou, WeiXu, etc. Current status of ground-source heat pumps in China [J]. Energy Policy, 38 (2010): 323–32.

[6] LU Jun,WANG Zuo-jun. Feasibility of surface water heat pump system in Xintiandi project in Chongqing[J]. Journal of central south university of technology, 2007,14(s3):240-4.

[7] Zuiliang Ma and Yue Lu. Ground source heat pump system design and application[M]. Beijing: Mechanical Industry Press, 2007 (in Chinese)

[8] Kavanaugh S P. Design considerations for ground and water source heat pumps in southern climates[J]. ASHRAE Transactions,1989,95(1): 1139-49.

[9] Xuelian Bai, Yanjun Zhang, Houhua Wang. Energy efficiency of water transportation system for surface water source heat pump[J]. Journal of Civil, Architectural & Environmental Engineering, 2010, 32(6): 86-91.

[10] Xuelian Bai, Fei Zeng,. Application of Water Source Heat Pump System Combined with Energy Storage[J].Journal of Hunan University, 2009, 36(12):73-8.

[11] Caglar Selcuk Canbay, Arif Hepbasli, Gulden Gokcen, Evaluating performance indices of a shopping centre and implementing HVAC control principles to minimize energy usage, Energy and Buildings, 2004 (36) :587-98.

DOI: 10.1016/j.enbuild.2004.01.031
