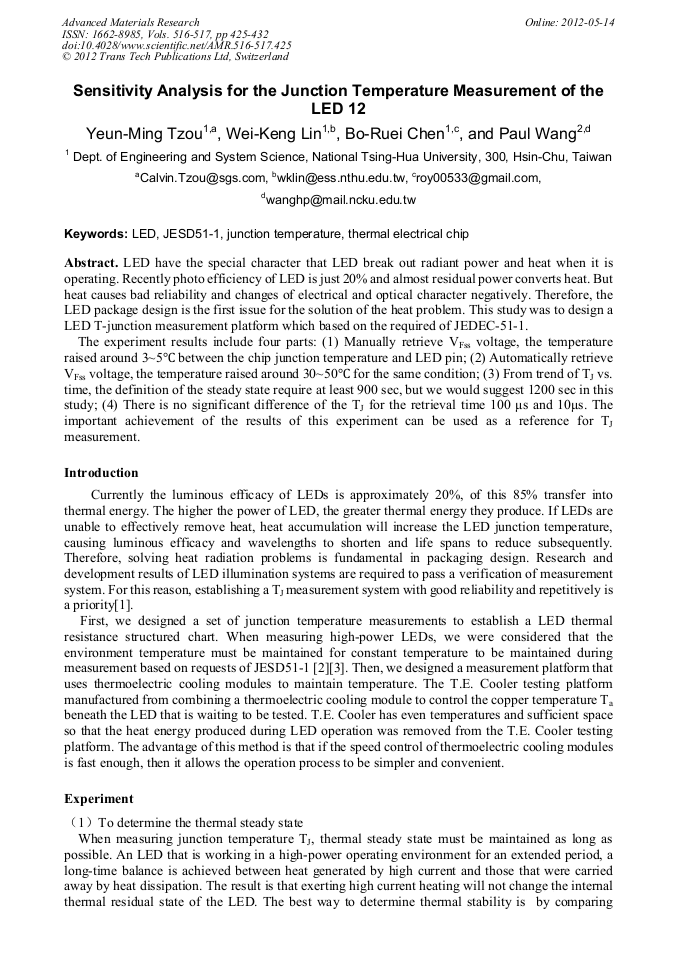

Sensitivity Analysis for the Junction Temperature Measurement of the LED 12

Abstract:

LED have the special character that LED break out radiant power and heat when it is operating. Recently photo efficiency of LED is just 20% and almost residual power converts heat. But heat causes bad reliability and changes of electrical and optical character negatively. Therefore, the LED package design is the first issue for the solution of the heat problem. This study was to design a LED T-junction measurement platform which based on the required of JEDEC-51-1. The experiment results include four parts: (1) Manually retrieve VFss voltage, the temperature raised around 3~5°C between the chip junction temperature and LED pin; (2) Automatically retrieve VFss voltage, the temperature raised around 30~50°C for the same condition; (3) From trend of TJ vs. time, the definition of the steady state require at least 900 sec, but we would suggest 1200 sec in this study; (4) There is no significant difference of the TJ for the retrieval time 100 μs and 10μs. The important achievement of the results of this experiment can be used as a reference for TJ measurement.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 425-432
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.425
• Online since: May 2012
• Authors: Yeun Ming Tzou, Wei Keng Lin, Bo Ruei Chen, Paul Wang
• Keywords: JESD51-1, Junction Temperature, LED, Thermal Electrical Chip

References

[1] V. Sztkely, "A New Evaluation Method of Thermal Transient Measurement Results", Microelectronics Journal, Vol. 28, No. 3, 1997, pp.277-292.

[2] LED lighting and quality standard ,No.003，2008, Taiwan。

[3] JEDEC Standard EIA/JESD51-1, "Integrated Circuits Thermal Measurement Method - Electrical Test Method (Single Semiconductor Device).", (1995)

[4] Eric G. T. Bosch & Clemens J.M. Lasance, "Accurate Measurement of Interface Thermal Resistance By Means of a Transient Method", Philips Research Laboratories, sixteenth IEEE SEMI-THERMTM symposium, 2000, p.167-P. 173.

DOI: 10.1109/stherm.2000.837080

[5] Y. H. Cheng, W. K. Lin, "Geometric optimization of thermoelectric coolers in a confined volume using genetic algorithms", Applied Thermal Engineering, 25, p.2983~2997, (2005)

DOI: 10.1016/j.applthermaleng.2005.03.007

[6] Pen-Cheng Wang , Chen-I Chao, Wei-Keng Lin, Sz-Yuan Hung, "All-Polymer Variable Resistors as Pressure-Responsive Devices Photochemically Assembled Using Porous Composites and Flexible Electrodes Based on Conducting Polymers", Journal of the Chinese Institute of Engineers (JCIE), 2010, Nov.

DOI: 10.1080/02533839.2012.679113
