For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Adsorption of Acid Modified Distillers' Grains for Heavy Metal Ions Pb(II) and Cr(III)
p.647
Concerning the Material Circular Management of the Industrial Enterprise under the 3R Principle
p.651
Cyclic Carbonation Properties of CMA as CO2 Sorbent at High Temperatures
p.655
Effects of Heavy Metals (Copper, Lead, Zinc) Stress on Absorption and Accumulation Characteristics of Sedum aizoon L.
p.659
Porous Alumina Ceramics Fabricated by Freeze Casting Method
p.665
Research Progress on TiO2-Based Visible Light Photocatalyst
p.669
Synthesis and Kinetics of a Green Surfactant Alkyl Glucamines
p.675
A Simple and Nontoxic Ink and Acetic Acid Staining Technique for Arbuscular Mycorrhizal Structures
p.679
Adsorption of a Non-Woven Fabric with Activated Carbon for CO2
p.683

Porous Alumina Ceramics Fabricated by Freeze Casting Method

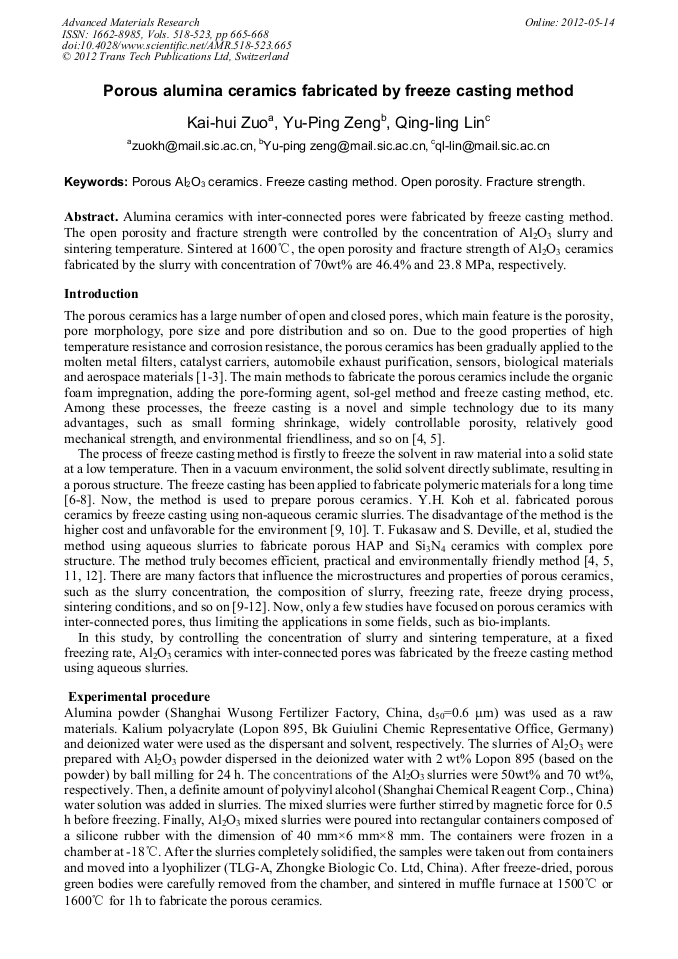

Article Preview

Abstract:

Alumina ceramics with inter-connected pores were fabricated by freeze casting method. The open porosity and fracture strength were controlled by the concentration of Al2O3 slurry and sintering temperature. Sintered at 1600°C, the open porosity and fracture strength of Al2O3 ceramics fabricated by the slurry with concentration of 70wt% are 46.4% and 23.8 MPa, respectively.

You might also be interested in these eBooks
Advances in Environmental Science and Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 518-523)

Pages:

665-668

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.518-523.665

Citation:

Cite this paper

Online since:

May 2012

Authors:

Kai Hui Zuo, Yu Ping Zeng, Qing Ling Lin

Keywords:

Fracture Strength, Freeze Casting Method, Open Porosity, Porous Al2O3 Ceramics

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] O. Lyckfeldt and J.M.F. Ferreis: J. Eur. Ceram. Soc Vol. 18(1998), p.131.

Google Scholar

[2] G.J. Zhang, F.Y. Jian and T. Ohji: J. Am. Ceram. Soc Vol. 84(2001), p.1395.

Google Scholar

[3] J.F. Yang: J. Am. Ceram. Soc Vol. 84(2001), p.1639.

Google Scholar

[4] T. Fukasawa and M. Ando: J. Am. Ceram. Soc Vol. 84(2001), p.230.

Google Scholar

[5] S. Deville, E. Saiz, R. K. Nalla, et al: Science Vol. 311(2006), p.515.

Google Scholar

[6] K. Whang, C.H. Thomas, K. E. Healy, et al: Polymer Vol. 36(1995), p.837.

Google Scholar

[7] Y. S. Nam and T.G. Park: J. Biomed. Mater. Res Vol. 47(1999), p.8.

Google Scholar

[8] M.H Ho, P.Y. Kuo, H.J. Hsieh, et al: Biomaterials Vol. 25(2004), P.129.

Google Scholar

[9] E. J. Lee, Y. H. Koh, B. H. Yoon, et al: Mater. Lett in press.

Google Scholar

[10] Y. H. Koh, E. J. Lee, B.H. Yoon, et al: J. Am. Ceram. Soc Vol. 89(2006), p.3646.

Google Scholar

[11] S. Deville, E. Saiz and A.P. Tomsia: Biomaterials Vol. 27(2006), p.5480.

Google Scholar

[12] T. Fukasawa, Z.Y. Den and M. Ando: J. Am. Ceram. Soc Vol. 85(2002), p.2151.

Google Scholar

[13] R.W. Rice: J. Mater. Sci Vol. 28(1993), p.2187.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
