Study on the Deposition and Characterization of Nanocrystalline Diamond Composite Films

Abstract:

Nanocrystalline diamond composite films were fabricated on the WC-Co substrates using a bias-enhanced hot filament CVD system. Methanol solution pretreatment method for removing the Co in surface of WC-Co substrates was put forward. The composite structure was achieved by regulating the concentration of Ar in a mixture of acetone and a hydrogen gases in different stages. The surface morphologies, nucleation density, diamond films and composition of the nanocrystalline diamond composite films were observed with different techniques. The results showed that the introduction of Ar increased the second nucleation of diamond grains which made the diamond grains finer. Nanocrystallie diamond film can be successfully grown on the microcrystalline diamond films. The two-layer structure has the advantages of good adhesive strength and low surface roughness. Because of nano effects, the hardness of composite films decreases. This is prone to be polished and reduces the work load significantly. It is of great importance for the wide application of diamond films in the precision machining fields.

You might also be interested in these eBooks

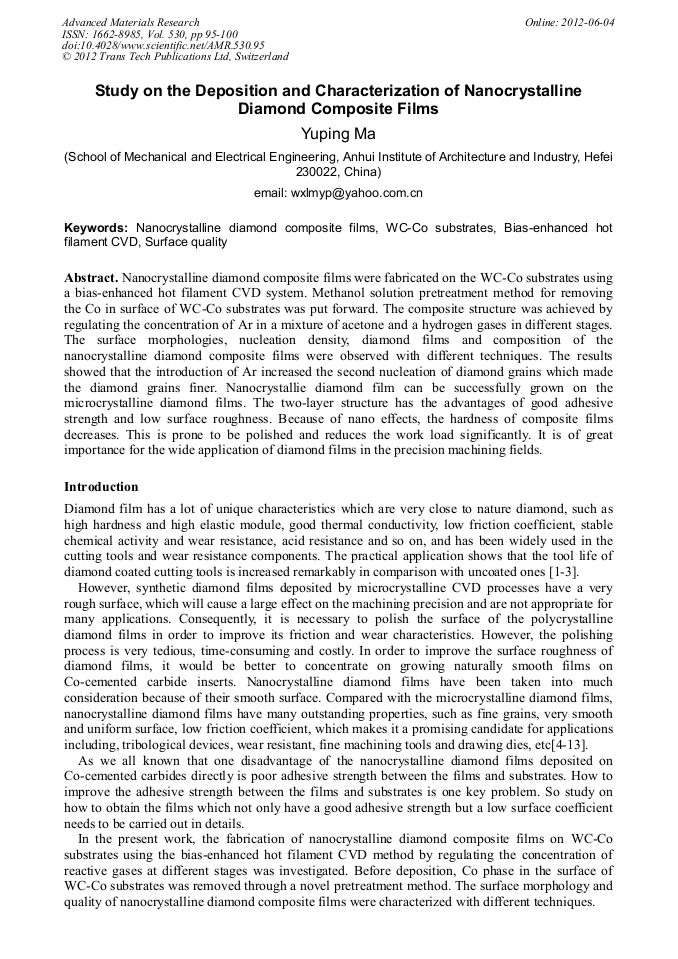

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 530)

Pages:

95-100

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.530.95

Citation:

Cite this paper

Online since:

June 2012

Authors:

Yu Ping Ma

Keywords:

Bias-Enhanced Hot Filament CVD, Nanocrystalline Diamond Composite Films, Surface Quality, WC-Co Substrates

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Dieter M. Gruen: Nanocrystalline diamond films. Annu Rev. Mater. Sci., 1999, (29), pp.211-259.

DOI: 10.1146/annurev.matsci.29.1.211

Google Scholar

[2] F.H. Sun, Z.M. Zhang, M. Chen et al: Fabrication and application of high quality diamond-coated tools. Journal of Materials Proceedings Technology, 2002, 129(1-3), pp.435-440.

DOI: 10.1016/s0924-0136(02)00635-0

Google Scholar

[3] M. Chen, X.G. Jian, F.H. Sun, et al: Development of diamond-coated drills and their cutting performance [J]Journal of Materials Proceedings Technology, 2002, 129(1-3), pp.81-85.

DOI: 10.1016/s0924-0136(02)00580-0

Google Scholar

[4] Z. M. Zhang, H. W. Xin, F. H. Sun, et al: Synthesis of Nanocrytalline diamond films deposited by hot filament CVD. Microfabrication Technology. 2003, (1), pp.27-33.

Google Scholar

[5] R. Haubner , A. Kopf, B. Lux: Diamond deposition on hardmetal substrates after pre-treatment with boron or sulfur compounds. Diamond and Related Materials , 2002, (11), p.555–561.

DOI: 10.1016/s0925-9635(01)00629-x

Google Scholar

[6] T. Wang, H.W. Xin, Z.M. Zhang, et al: The fabrication of nanocrystalline diamond films using hot filament CVD. Diamond and Related Materials, 2004, 13(1), pp.6-13.

DOI: 10.1016/j.diamond.2003.08.014

Google Scholar

[7] J.E. Gerbi, J. Birrell, M., Sardela et al: Macrotexture and growth chemistry in ultrananocrystalline diamond thin films . Thin Solid Films, 2005, 473(1), pp.41-48.

DOI: 10.1016/j.tsf.2004.06.155

Google Scholar

[8] T. Sharda, T. Soga, T.; Jimbo et al: Biased enhanced growth of nanocrystalline diamond films by microwave plasma chemical vapor deposition. Biased enhanced growth of nanocrystalline diamond films by microwave plasma chemical vapor depositionDiamond and Related Materials, 2000, 9(7), pp.1331-1335.

DOI: 10.1016/s0925-9635(00)00247-8

Google Scholar

[9] Huang, Shr-Ming, Hsu, Hsiao-Chiu, You, Min-Sheng et al: Growth of diamond films with high surface smoothness. Growth of diamond films with high surface smoothnessDiamond and Related Materials, 2006, 15(1), pp.22-28.

DOI: 10.1016/j.diamond.2005.06.031

Google Scholar

[10] B. Marcus, L. Fayette, M. Mermoux, et al: Analysis of the structure of multi-component carbon films by resonant Raman scattering . J. Appl. Phys. 1994, 76(6), pp.3463-3470.

DOI: 10.1063/1.357476

Google Scholar

[11] Y.P. Ma, F.H. Sun, H. G. Xue et al: Deposition and Characterization of Nanocrystalline Diamond Films on Co-cemented Tungsten Carbide Insert. Diamond & Related Materials, 2007, 16(3), pp.481-485.

DOI: 10.1016/j.diamond.2006.09.020

Google Scholar

[12] H. Kuzmany, R. Pfeiffer, N. Salk et al: The mystery of the 1140 cm-1 Raman line in nanocrystalline diamond films. Carbon , 2004, 42(5-6), pp.911-917.

DOI: 10.1016/j.carbon.2003.12.045

Google Scholar

[13] H.W. Xin, Z.M. Zhang, X. Ling, et al: Composite diamond films with smooth surface and the structural influence on dielectric properties. Diamond and Related Materials, 2002, 11(2), pp.228-233.

DOI: 10.1016/s0925-9635(01)00651-3

Google Scholar
