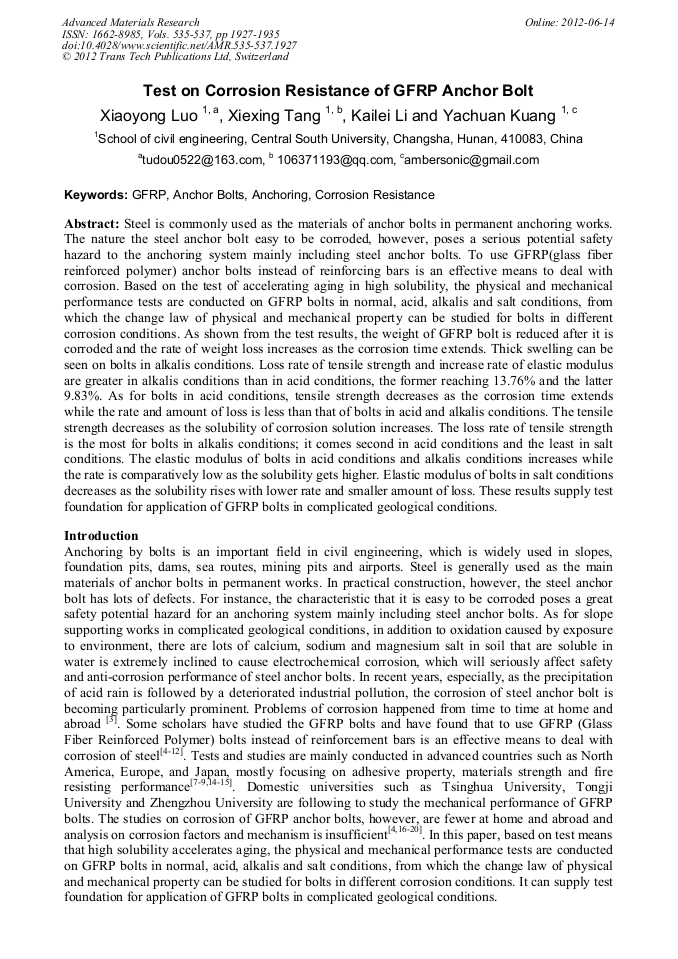

Test on Corrosion Resistance of GFRP Anchor Bolt

Abstract:

Steel is commonly used as the materials of anchor bolts in permanent anchoring works. The nature the steel anchor bolt easy to be corroded, however, poses a serious potential safety hazard to the anchoring system mainly including steel anchor bolts. To use GFRP(glass fiber reinforced polymer) anchor bolts instead of reinforcing bars is an effective means to deal with corrosion. Based on the test of accelerating aging in high solubility, the physical and mechanical performance tests are conducted on GFRP bolts in normal, acid, alkalis and salt conditions, from which the change law of physical and mechanical property can be studied for bolts in different corrosion conditions. As shown from the test results, the weight of GFRP bolt is reduced after it is corroded and the rate of weight loss increases as the corrosion time extends. Thick swelling can be seen on bolts in alkalis conditions. Loss rate of tensile strength and increase rate of elastic modulus are greater in alkalis conditions than in acid conditions, the former reaching 13.76% and the latter 9.83%. As for bolts in acid conditions, tensile strength decreases as the corrosion time extends while the rate and amount of loss is less than that of bolts in acid and alkalis conditions. The tensile strength decreases as the solubility of corrosion solution increases. The loss rate of tensile strength is the most for bolts in alkalis conditions; it comes second in acid conditions and the least in salt conditions. The elastic modulus of bolts in acid conditions and alkalis conditions increases while the rate is comparatively low as the solubility gets higher. Elastic modulus of bolts in salt conditions decreases as the solubility rises with lower rate and smaller amount of loss. These results supply test foundation for application of GFRP bolts in complicated geological conditions.

• Periodical: Advanced Materials Research (Volumes 535-537)
• Pages: 1927-1935
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.535-537.1927
• Online since: June 2012
• Authors: Xiao Yong Luo, Xie Xing Tang, Kai Lei Li, Ya Chuan Kuang
• Keywords: Anchor Bolts, Anchoring, Corrosion Resistance, Glass Fiber Reinforced Polymer (GFRP)

References

[1] Liangkui Cheng, Xiangfan Li: Geotechnical Anchoring, Soil Nail, Shotcreting - Principles, Design and Application, China Architecture and Building Press, (2010) In Chinese

[2] Lewen Zhang: Current Theoretical Research on Geotechnical Anchoring [J], Geotechnical Mechanics, 2002, 23(5):627-631 .In Chinese

[3] Xianming Zeng, Zhiliang Lei, Wenjin Zhang: Discussion on Bolt "Time Bomb"- Response to Professor Yingzhong Guo, Chinese Journal of Rock Mechanics and Engineering, 2002,21(1).143-147. In Chinese

[4] Jingjing Xie: Anchoring Mechanism and Design Methods of Fiber Reinforced Plastics Bolt [D], Zhengzhou University, 2002. In Chinese

[5] Lei Gao: Experimental Study on Tensile Character and Failure Mechanism of GFRP Rebar [Master Dissertation], Zhengzhou, North China Institute of Water Conservancy and Hydroelectric Power, 2007. In Chinese

[6] Guowei Li, Lirui Qiu: Application Test of Frame Beam of GFRP Anchor Bolt for Road Slope, CHES No. 9 Academic Conference of Ground and Foundation Engineering of Water Conservancy and Hydroelectric Power, 2007. In Chinese

[7] American Concrete Institute: Guide for the Design and Construction of Concrete Reinforced with FRP Bars[S], ACI Report 440．IR--O103, Farmington Hills, (2004)

[8] Canadian Standards Association, CAN/CSA-S806-02, Design and Construction of Building Components with Fibre Reinforced PolymersIs], Canadian Stand-ards Association, Rexdale, Ontario, (2002)

[9] Japanese Society of Civil Engineers(JSCE), Recommendations for Design and Construction of Concrete Structures Using Continuous Fibre Reinforced Materials[S], JSCE, Tokyo, Japan, (1997)

[10] Xue Weichen: New Progress on Fiber-Reinforced Plastic Concrete, National Natural Science Foundation of China, 2004, (1): 10-12

[11] Jie Nian, Yu Zhang, Gang Chen: Research on New Anchor Bolt of Glass Fiber Reinforced Plastics [J] Coal Mining, 2001, (4):45-47. In Chinese

[12] Keyuan Zhou: Research on Application of GFRP Anchor Bolt for Slope Support [J], Subgrade Engineering, 2010,151 (4):18-21. In Chinese

[13] Larke JLWaldron P: The reinforcement of concrete structures with advanced composites [J], The Structural Engineer, 1996, 17(3):56-61

[14] Brahim Tighiouart, Brahim Benmokrane, Phalguni Mukhopadhyaya: Bond Strength Of Glass FRP Rebar Splices in Beams under Static Loading[J], Construction and Building Materials 1999(13): 383～392

DOI: 10.1016/s0950-0618(99)00037-9

[15] Dejke V Teppers R, Durability and Service Life Time Prediction of GFRP for Concrete Reinforcement, FRPRCS-5: Durability of Fibre Reinforced Plastics, ed, Thomas Telford, 2001, 505-513

[16] Xiaohui Ma, Xiaodong Huang, Guowei Li, Kang Liang: Deformation Characteristic of GFRP Anchor Bolt Under Tensile Load [J], Chinese Journal of Rock Mechanics and Engineering, 2005, 17(3):33-36. In Chinese

[17] Zhihuai Huang, Guowei Li, Yuqi Li: On-site Contrast Tests on Characteristic of Bearing Capacity of GFRP Anchor Bolts in Different Diameters [J], FRP/CM, 2010, 24(6):31-35. In Chinese

[18] Changdong Zhou, Xilin Lv, Ye Jin: Research on Mechanical Performance of GFRP Bolt Under Fire Temperature [J], Journal of Architecture and Civil Engineering, 2006, 23(6):56-62. In Chinese

[19] Yinghao Liu, Yong Yuan: Experimental Research on Anchorage Performance of Full-Thread GFRP Bonding Anchor Bolts [J], Chinese Journal of Rock Mechanics and Engineering, 2010,26(13):26-34. In Chinese

[20] Changliang Lu, Tingwang Liu: Test and Research on Corrosion Resistance of GFRP Anchor Bolt [J], Journal of China and Foreign Highway, 2009,10: 5-6. In Chinese
