The Microstructure and Characteristic of 410L Stainless Honeycombs Fabricated by Extruding and Sintering

Abstract:

Pure 410L powder is used to mix with an additive to prepare a powder mixed paste. 410L honeycombs are fabricated by extruding the powder mixed paste, then dried and sintered. With sintering temperature increasing from 1120°C to1150°C, the density of sintered honeycombs increasing, powder particles bind together and become grains. The structure parameters and properties of sintered honeycombs were obtained by measuring and calculating. Results show that wall thickness 0.13~0.18mm, cell number (1/in2) 350~385, clear cross section (%) 73~80, specific surface Sv(sq m/cu dm）2.68~2.85； specific heat capacity Cp(J/g.K) 0.50~0.56, heat conductivity κ(W/m.K) 11.2~12.5. SEM/EDS analysis shows that the structure of sintered honeycombs consists of matrix phase α-Fe(Cr) and small particles which are complex compounds of silicon, iron and inclusion elements distributed in matrix. Chromium oxide is formed on surface of sintered honeycombs.

You might also be interested in these eBooks

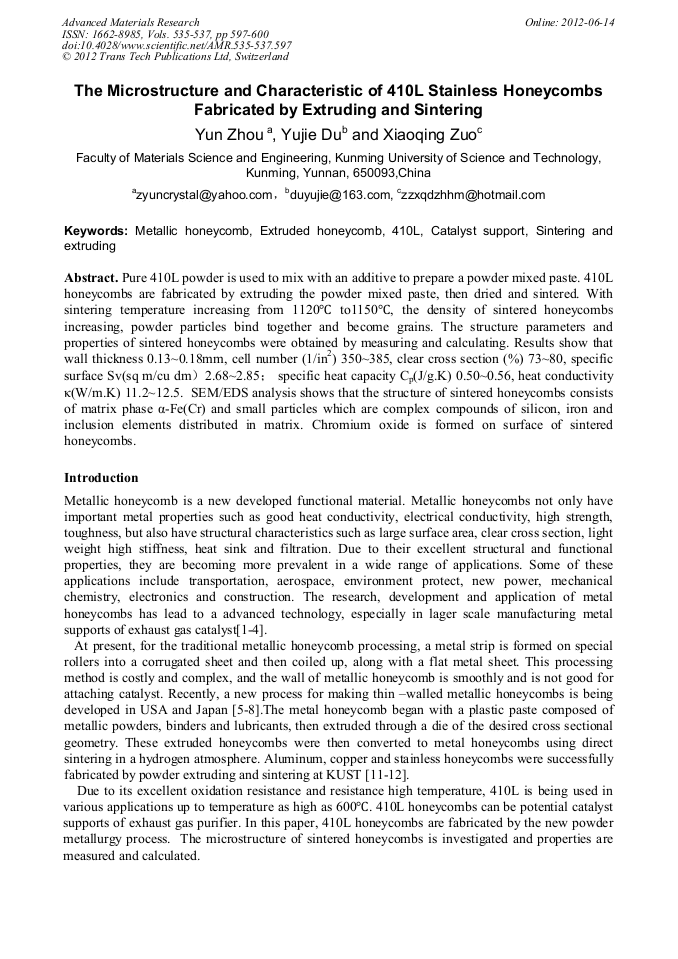

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 535-537)

Pages:

597-600

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.535-537.597

Citation:

Cite this paper

Online since:

June 2012

Authors:

Yun Zhou, Yu Jie Du, Xiao Qing Zuo

Keywords:

410L, Catalyst Support, Extruded Honeycomb, Metallic Honeycomb, Sintering and Extruding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.M. Dempsey, S. Eisele, D.L. McDowell: Int. J. Heat Mass Transfer.Vol. 48 (2005),p.527

Google Scholar

[2] A. M. Hayes, A.J. Wang, B. M. Dempsey, D. L. McDowell: Mech. Mater.Vol. 36 (2004),p.691

Google Scholar

[3] T. Uda, M. Tanaka, K. Munakata: Fusion Engineering and Design, Vol.83 (2008), p.1715

Google Scholar

[4] C. G. Visconti, E. Tronconi, L. Lietti,et al: Applied Catalysis A: General, Vol. 370( 2009), p.93

Google Scholar

[5] Seely, Richard L. Honeycomb extrusion die. US Patent. No 6302679, (2003)

Google Scholar

[6] Cutler, Willard A. Thermally conductive honeycombs for chemical reactors. US Patent. No 6881703 ,(2005)

Google Scholar

[7] J. Cochran, K.J. Lee, , D. McDowell, T.Sanders, H, Multifunctional Metallic Honeycombs by thermal chemical processing. In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A.Ghosh,T.Sanders,D.Claar , TMS，2002, p.127

Google Scholar

[8] J. L.Clark，J Cochran，H. Thomas，K. J. Lee, Metal Honeycomb from Oxide paste: Maraging Steel and Super Invar structure and properties, In: Processing and Properties of Lightweight Cellular Metals and Structures, edited by A.Ghosh,T.Sanders,D.Claar, TMS，2002, p.116

Google Scholar

[9] Y. Zhou, X.Q. Zuo, J.H. Sun, J. Mei, J.L. Sun: Materials Science and Engineering A, Vol. 457 (2007), p.329

Google Scholar

[10] Y.Zhou, X.Q. Zuo, X.Q. Zhang, J. Mei, J.L. Sun: Journal of Materials Science & Engineering (in Chinese),Vol.23(2005),p.504

Google Scholar

[11] Y.Zhou, X.Q. Zuo, T.Zhang: 316L Stainless Honeycombs Fabricated by Extruding and Sintering, Advanced Materials Research, Vols.146-147 (2011), p.1921

DOI: 10.4028/www.scientific.net/amr.146-147.1921

Google Scholar
