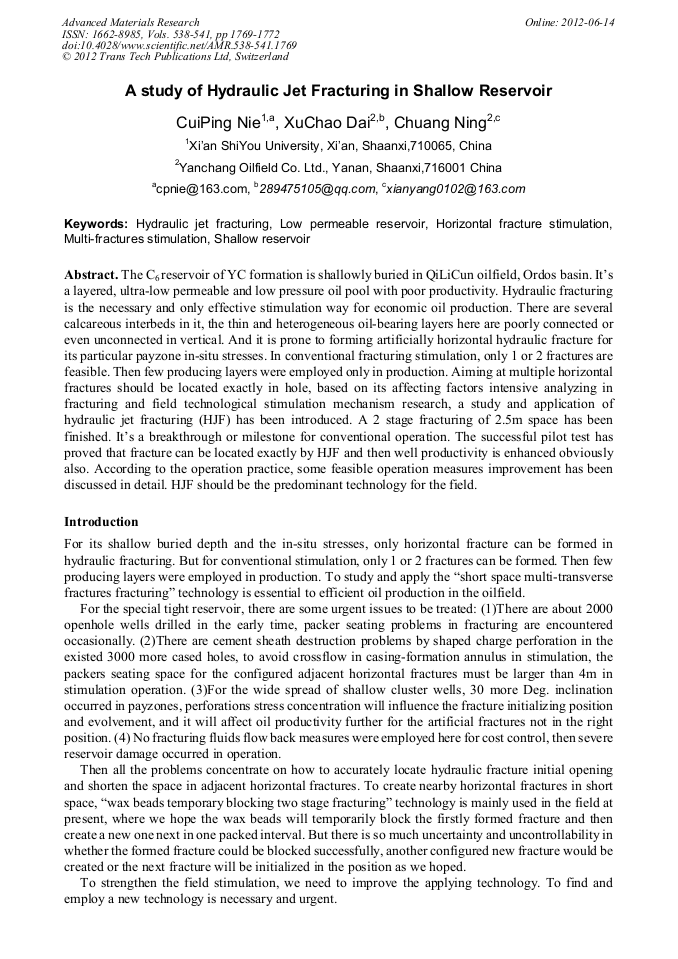

A Study of Hydraulic Jet Fracturing in Shallow Reservoir

Abstract:

The C₆ reservoir of YC formation is shallowly buried in QiLiCun oilfield, Ordos basin. It’s a layered, ultra-low permeable and low pressure oil pool with poor productivity. Hydraulic fracturing is the necessary and only effective stimulation way for economic oil production. There are several calcareous interbeds in it, the thin and heterogeneous oil-bearing layers here are poorly connected or even unconnected in vertical. And it is prone to forming artificially horizontal hydraulic fracture for its particular payzone in-situ stresses. In conventional fracturing stimulation, only 1 or 2 fractures are feasible. Then few producing layers were employed only in production. Aiming at multiple horizontal fractures should be located exactly in hole, based on its affecting factors intensive analyzing in fracturing and field technological stimulation mechanism research, a study and application of hydraulic jet fracturing (HJF) has been introduced. A 2 stage fracturing of 2.5m space has been finished. It’s a breakthrough or milestone for conventional operation. The successful pilot test has proved that fracture can be located exactly by HJF and then well productivity is enhanced obviously also. According to the operation practice, some feasible operation measures improvement has been discussed in detail. HJF should be the predominant technology for the field.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 1769-1772
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.1769
• Online since: June 2012
• Authors: Cui Ping Nie, Xu Chao Dai, Chuang Ning
• Keywords: Horizontal Fracture Stimulation, Hydraulic Jet Fracturing, Low Permeable Reservoir, Multi-Fractures Stimulation, Shallow Reservoir

References

[1] GaoQun Zhang,etal.Hydraulic fracturing application in ZhongYuan oilfield. Drilling & Production Technology. In Chinese, 2010, Vol.33(5):P.65-66,71

[2] Surjaatmadja J B,Grundmann S R,eta1. Hydra jet fracturing: an effective method for placing many fractures in open hole horizontal wells. SPE 48856, 1998.

DOI: 10.2118/48856-ms

[3] FuGuo Xia, etal. Hydraulic fracturing mechanism & application. In Chinese. Abroad Oilfield Engineering; 2010, Vol.26(11); P.16-18

[4] JianZhong Liu, etal. Possibility study on multi-fracture creation during artificial hydraulic fracturing. In Chinese. Petroleum exploration and development. 2002, Vol.29(3), P.104-106

[5] GenSheng Li etal. Study of effect of hydraulic perforating on formation fracturing pressure. In Chinese. Journal of the University of Petroleum, China (Edition of Natural Science); 2002,Vol.26(2), P.31-34
