Control Basis for Cooling Rate of Plates during Roller Quenching in High-Pressure Zone

Abstract:

A basis based on temperature field is developed to control the cooling rate of plates during roller quenching in high-pressure zone. In order to determine the optimal cooling rate of plate during roller quenching, temperature field of SPV490 plate during quenching was calculated. Then a formula for calculating cooling rate of the center for plate at a certain cooling intensity during roller quenching in high-pressure zone was put forward and the control basis for cooling rate of plate during roller quenching in high-pressure zone was suggested. The cooling rates and corresponding heat transfer coefficients of SPV490 plates with different thickness during roller quenching in high-pressure zone were determined with the given basis.

You might also be interested in these eBooks

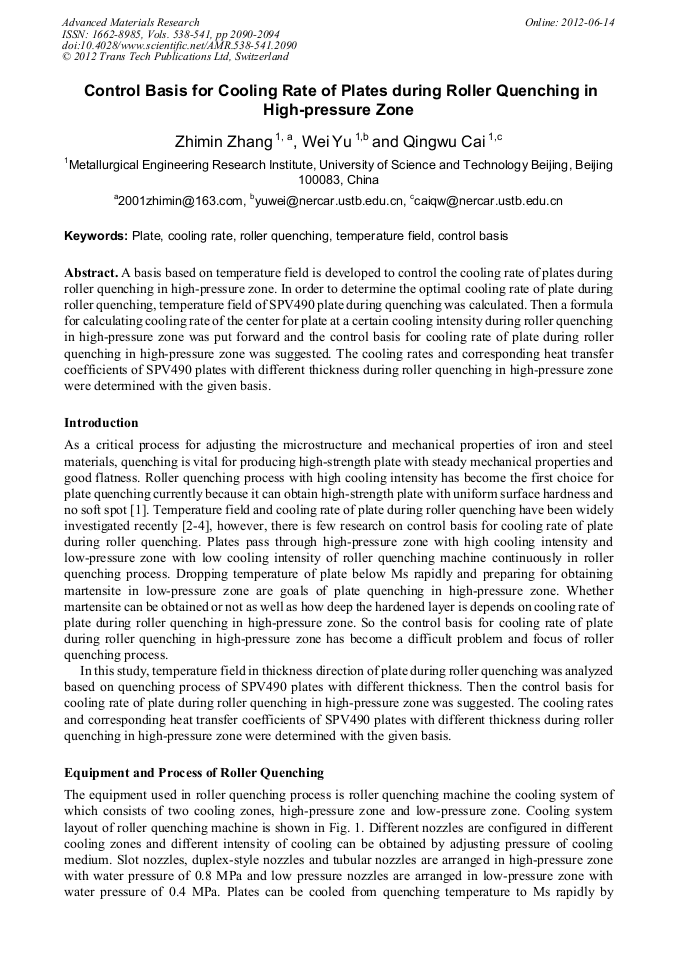

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 538-541)

Pages:

2090-2094

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.538-541.2090

Citation:

Cite this paper

Online since:

June 2012

Authors:

Zhi Min Zhang*, Wei Yu, Qing Wu Cai

Keywords:

Control Basis, Cooling Rate, Plate, Roller Quenching, Temperature Field

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z.W. Shao: Steel Rolling. Vol. 23 (2006), p.37 (in Chinese)

Google Scholar

[2] G. Yuan, G.D. Wang, L.J. Wang and Z.D. Wang: Journal of Northeastern University. Vol. 31 (2010), p.527 (in Chinese)

Google Scholar

[3] C. Wang, G. Yuan, Z.D. Wang and G.D. Wang: Journal of Northeastern University. Vol. 32 (2011), p.968 (in Chinese)

Google Scholar

[4] Q.F. Zhang, S.H. Jiao and Z.H. Ma: Hot Working Technology. Vol. 39 (2010), p.157 (in Chinese)

Google Scholar

[5] Z. Liu, Z.J. Wu, J.Z. Wu and Y. Zhang: Numerical Simulation of Heat Treatment Processing (Science Press, Beijing 1996). (in Chinese)

Google Scholar

[6] S.J. Chen, S.K. Biswas and L.F. Han: Monitoring and Control for Manufacturing Processes. Vol. 44 (1990), p.465

Google Scholar

[7] G. Yuan, Y. Han, C. Wang, Z.D. Wang and G.D. Wang: Transactions of Materials and Heat Treatment. Vol. 31 (2010), p.148 (in Chinese)

Google Scholar

[8] Z.Y. Xu: Martensitic Transformation and Martensite (Science Press, Beijing 1999). (in Chinese)

Google Scholar

[9] J.X. Wu, G.Y. Zhou and Y.M. Xun: Application Techniques of steel hardenability (Mechanical Industry Press, Beijing 1994). (in Chinese)

Google Scholar

[10] K.W. Andrews: JISI. Vol. 203 (1965), p.721

Google Scholar
