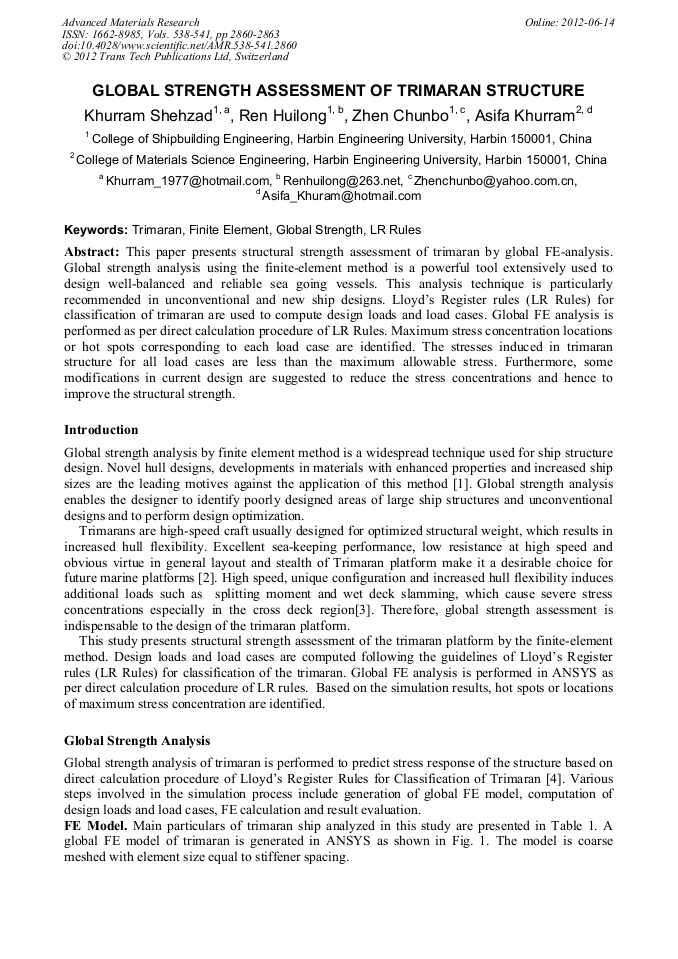

Global Strength Assessment of Trimaran Structure

Abstract:

This paper presents structural strength assessment of trimaran by global FE-analysis. Global strength analysis using the finite-element method is a powerful tool extensively used to design well-balanced and reliable sea going vessels. This analysis technique is particularly recommended in unconventional and new ship designs. Lloyd’s Register rules (LR Rules) for classification of trimaran are used to compute design loads and load cases. Global FE analysis is performed as per direct calculation procedure of LR Rules. Maximum stress concentration locations or hot spots corresponding to each load case are identified. The stresses induced in trimaran structure for all load cases are less than the maximum allowable stress. Furthermore, some modifications in current design are suggested to reduce the stress concentrations and hence to improve the structural strength.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 2860-2863
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.2860
• Online since: June 2012
• Authors: Khurram Shehzad, Hui Long Ren, Chun Bo Zhen, Asifa Khurram
• Keywords: Finite Element, Global Strength, LR Rules, Trimaran

References

[1] H. V. Selle O. Doerk and M. Scharrer: Ana. Des. Marine Struct. Guedes Soares & Das eds. (2009), p.255

[2] F. M. Chung and C.T. yin: J. Ocean Engg. Vol. 35 (2008), p.749

[3] T. Blanchard and C. Ge: J. Nav. Eng. Vol. 44-1 (2007), p.1

[4] Rules for the Classification of Trimarans, Lloyd's Register Rules and Regulations (2006)
