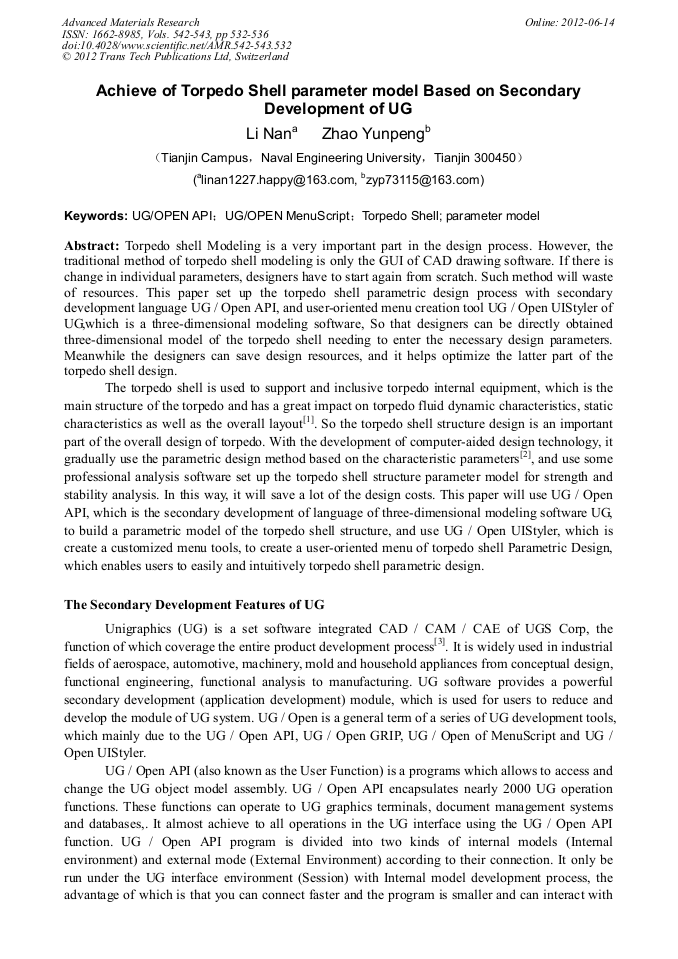

Achieve of Torpedo Shell Parameter Model Based on Secondary Development of UG

Abstract:

Torpedo shell Modeling is a very important part in the design process. However, the traditional method of torpedo shell modeling is only the GUI of CAD drawing software. If there is change in individual parameters, designers have to start again from scratch. Such method will waste of resources. This paper set up the torpedo shell parametric design process with secondary development language UG / Open API, and user-oriented menu creation tool UG / Open UIStyler of UG,which is a three-dimensional modeling software, So that designers can be directly obtained three-dimensional model of the torpedo shell needing to enter the necessary design parameters. Meanwhile the designers can save design resources, and it helps optimize the latter part of the torpedo shell design.

• Periodical: Advanced Materials Research (Volumes 542-543)
• Pages: 532-536
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.542-543.532
• Online since: June 2012
• Authors: Nan Li, Yun Peng Zhao
• Keywords: Parameter Model, Torpedo Shell, UG/OPEN API, UG/OPEN Menuscript

References

[1] Zhang Yuwen. Torpedo shape design (Volume I) [M]. Xi'an: Northwestern Polytechnical University Press, 1998,8: 134 ~ 136.

[2] Hu Peimin, Shi Xiuhua parametric design of the torpedo shell [J]. Beijing: Ship Science and Technology, 1999,: 67 ~ 685.

[3] Huang Yong .UG/OPEN API, MFC and COM Development instance of the refined solution [M] Beijing: National Defence Industry Press, 2009,2:89 ~ 127.

[4] GEOLOGICAL HAZARD. Torpedo the overall design principles and methods [M]. Xi'an: Northwest University Press, 1997:127 ~ 131.

[5] Morong, Chang Zhiyong, Liu Hongjun. Icon Detailed UG NX secondary to the development of [M] Beijing: Electronic Industry Press, 2008,6:145 ~ 158.
