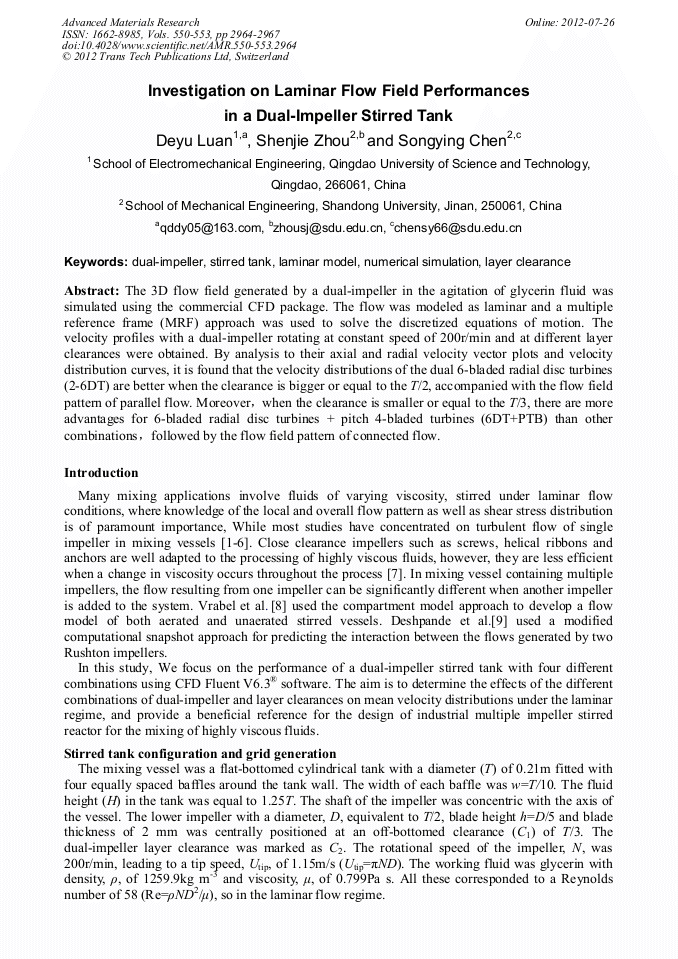

Investigation on Laminar Flow Field Performances in a Dual-Impeller Stirred Tank

De Yu Luan; Shen Jie Zhou; Song Ying Chen

doi:10.4028/www.scientific.net/AMR.550-553.2964

Paper Titles

GIS-Based Emergency Management System for Chemical Industry Park
p.2941

Purification of D-(-)-Lactic Acid from Fermentation Broth Using Nanofiltration, Esterification, Distillation, and Hydrolysis Technique
p.2945

Sintering Behavior and Microwave Dielectric Properties of BaTi₄O₉ Ceramics Prepared from Different Size Powders by Sol-Gel Method
p.2953

Study on Intrinsic Safety and Volume Expansion Ratio of Liquefied Gas Cylinder
p.2958

Investigation on Laminar Flow Field Performances in a Dual-Impeller Stirred Tank
p.2964

Fluidization Behavior of Mixtures of Nanoparticles in Vibrated Fluidized Beds
p.2968

Pore Size Distribution Effect on the Mass Transfer and Reaction in a Cylindrical Porous Gas Sensitive Medium
p.2972

Phase Split of Oil-Water Two-Phase Flows at a T-Junction with a Vertically Downward Branch
p.2977

Formation Mechanism and the Solving Measures of Sediments in Surface Pipelines of ASP Flooding
p.2981

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 550-553Investigation on Laminar Flow Field Performances...

Investigation on Laminar Flow Field Performances in a Dual-Impeller Stirred Tank

Abstract:

Abstract: The 3D flow field generated by a dual-impeller in the agitation of glycerin fluid was simulated using the commercial CFD package. The flow was modeled as laminar and a multiple reference frame (MRF) approach was used to solve the discretized equations of motion. The velocity profiles with a dual-impeller rotating at constant speed of 200r/min and at different layer clearances were obtained. By analysis to their axial and radial velocity vector plots and velocity distribution curves, it is found that the velocity distributions of the dual 6-bladed radial disc turbines (2-6DT) are better when the clearance is bigger or equal to the T/2, accompanied with the flow field pattern of parallel flow. Moreover，when the clearance is smaller or equal to the T/3, there are more advantages for 6-bladed radial disc turbines + pitch 4-bladed turbines (6DT+PTB) than other combinations，followed by the flow field pattern of connected flow.
