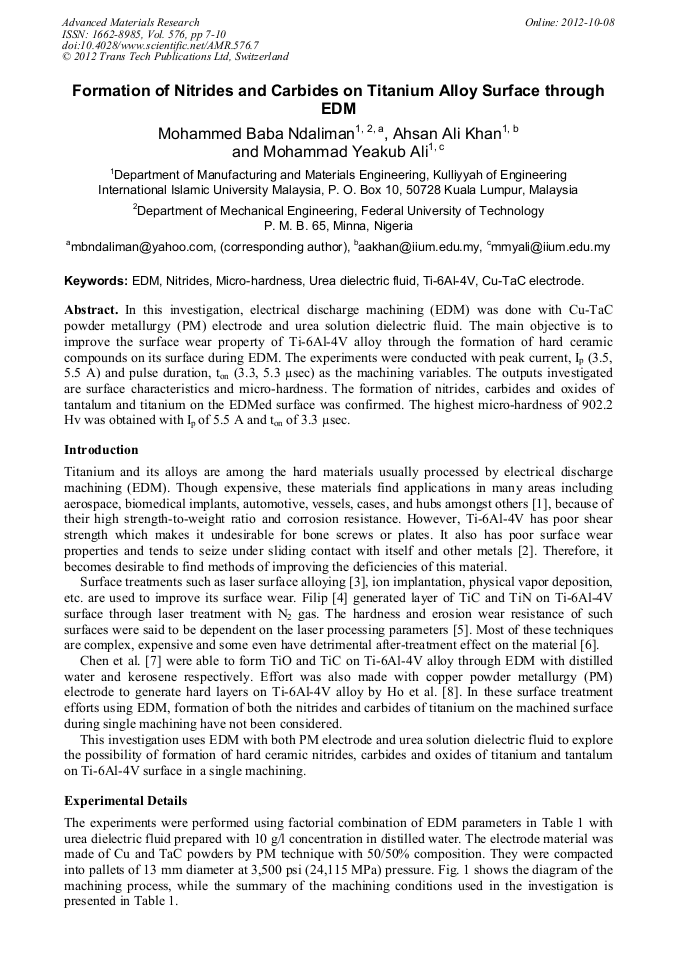

Formation of Nitrides and Carbides on Titanium Alloy Surface through EDM

Abstract:

In this investigation, electrical discharge machining (EDM) was done with Cu-TaC powder metallurgy (PM) electrode and urea solution dielectric fluid. The main objective is to improve the surface wear property of Ti-6Al-4V alloy through the formation of hard ceramic compounds on its surface during EDM. The experiments were conducted with peak current, I_p (3.5, 5.5 A) and pulse duration, t_on (3.3, 5.3 µsec) as the machining variables. The outputs investigated are surface characteristics and micro-hardness. The formation of nitrides, carbides and oxides of tantalum and titanium on the EDMed surface was confirmed. The highest micro-hardness of 902.2 Hv was obtained with I_p of 5.5 A and t_on of 3.3 µsec.

You might also be interested in these eBooks

Advances in Manufacturing and Materials Engineering (ICAMME)

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 576)

Pages:

7-10

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.576.7

Citation:

Cite this paper

Online since:

October 2012

Authors:

Mohammed Baba Ndaliman, Ahsan Ali Khan, Yeakub Ali Mohammad

Keywords:

Cu-TaC Electrode, EDM, Microhardness, Nitrides, Ti6Al4V, Urea Dielectric Fluid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.W. Yan, H.C. Tsai, F.Y. Huang, The effect in EDM of a dielectric of a urea solution in water on modifying the surface of titanium, Int. J. Mach. Tools Manu. 45 (2005) 194–200.

DOI: 10.1016/j.ijmachtools.2004.07.006

Google Scholar

[2] ASM Material Data Sheet, ASM aerospace Specification Metals Inc. http: /asm. matweb. com/search/SpecificMaterial. asp? retrieved on 27/02/(2011).

Google Scholar

[3] P. Jiang, X.L. He, X.X. Li, L.G. Yu, H.M. Wang, Wear resistance of a laser surface alloyed Ti-6Al-4V alloy, Surface and Coating Technology 130 (2000) 24-28.

DOI: 10.1016/s0257-8972(00)00680-0

Google Scholar

[4] R. Filip, Alloying of surface layer of Ti-6Al-4V alloy through the laser treatment, J. Achievements Mater. Manuf. Eng. 15 (2006) 174-180.

Google Scholar

[5] A. Lisiecki, A. Klimpel, Diode laser surface modification of Ti-6Al-4V alloy to improve erosion wear resistance, Archives Mater. Sci. Eng. 32 (2000) 5-12.

Google Scholar

[6] S.D. Cook, F.S. Georgette, H.B. Skinner, R.J. Hadded (Jr), Fatigue properties of carbon and porous-coated Ti-6Al-4V alloy, J. Biomed. Mater. Res. 18 (2004) 497-512.

DOI: 10.1002/jbm.820180504

Google Scholar

[7] S.L. Chen, B.H. Yan, F.Y. Huang, Influence of kerosene and water distilled water as dielectrics on the electric discharge machining characteristics of Ti-6Al-4V, J. Mater. Process. Technol. 87 (1999) 107-111.

DOI: 10.1016/s0924-0136(98)00340-9

Google Scholar

[8] S.K. Ho, D.K. Aspinwall, W. Voice, Use of powder metallurgy (PM) compacted electrodes for electrical discharge surface alloying / modification of Ti-6Al-4V alloy, J. Mater. Process. Technol. 191 (2007) 123-126.

DOI: 10.1016/j.jmatprotec.2007.03.003

Google Scholar

[9] M.B. Ndaliman, A.A. Khan, M.Y. Ali, Surface modification of titanium alloy through electrical discharge machining (EDM), Int. J. Mech. Mater. Eng. 6 (2011) 380-384.

Google Scholar
