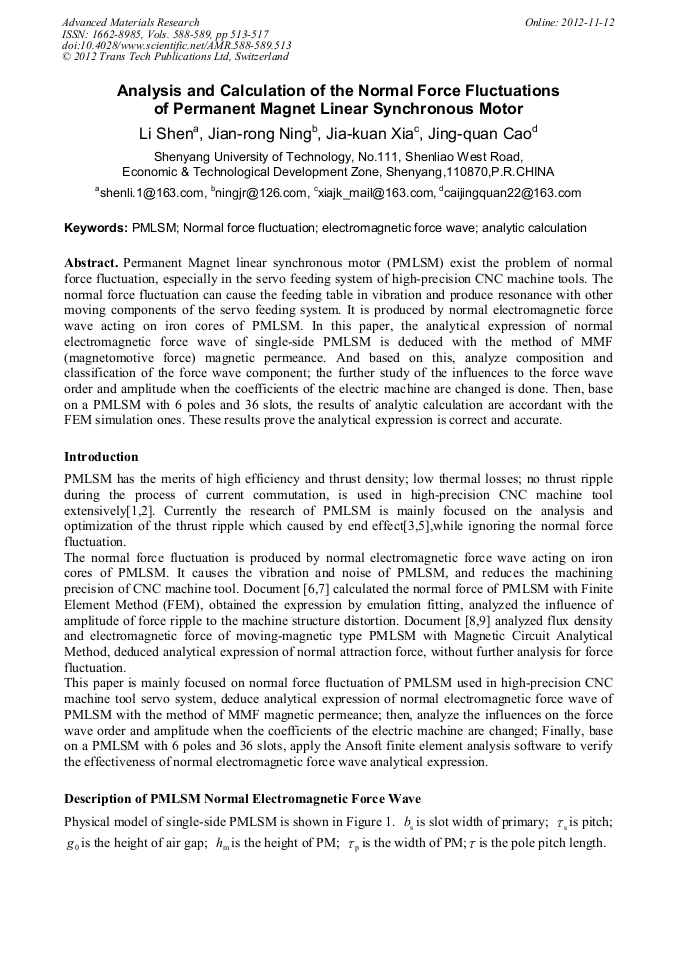

Analysis and Calculation of the Normal Force Fluctuations of Permanent Magnet Linear Synchronous Motor

Abstract:

Permanent Magnet linear synchronous motor (PMLSM) exist the problem of normal force fluctuation, especially in the servo feeding system of high-precision CNC machine tools. The normal force fluctuation can cause the feeding table in vibration and produce resonance with other moving components of the servo feeding system. It is produced by normal electromagnetic force wave acting on iron cores of PMLSM. In this paper, the analytical expression of normal electromagnetic force wave of single-side PMLSM is deduced with the method of MMF (magnetomotive force) magnetic permeance. And based on this, analyze composition and classification of the force wave component; the further study of the influences to the force wave order and amplitude when the coefficients of the electric machine are changed is done. Then, base on a PMLSM with 6 poles and 36 slots, the results of analytic calculation are accordant with the FEM simulation ones. These results prove the analytical expression is correct and accurate.

• Periodical: Advanced Materials Research (Volumes 588-589)
• Pages: 513-517
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.588-589.513
• Online since: November 2012
• Authors: Li Shen, Jian Rong Ning, Jia Kuan Xia, Jing Quan Cao
• Keywords: Analytic Calculation, Electromagnetic Force Wave, Normal Force Fluctuation, Permanent Magnet Linear Synchronous Motor (PMLSM)

References

[1] Cui Jiefan, Xia Jiakuan, Yang Junyou et al. Design and analyses in linear induction motor with moving conductors. CICEM. Xi'an China; (1999).

[2] XU Yue-tong, FU Jian-zhong, CHEN Zi-chen. Thrust ripple optimization and experiment for PMLSM. J Chinese Society for Electrical Engineering 2005; 25 (12): 122-125.

[3] ZHENG Guang-yuan, XIAO Shu-hong, CHEN Shu-quan. Study on the slot effect of permanent magnet synchronous linear motors. J Mechanical and Electronic 2009; 8: 65-67.

[4] JANG Ki-bong, KIM Jee-hyun, AN Ho-jin. Optimal design of auxiliary-teeth to solve circulation current reduction of permanent magnet linear synchronous motor. J Cent. South Univ. Technol 2011; 18: 690−696.

DOI: 10.1007/s11771-011-0749-8

[5] ZHU Yu-wu, LEE Sang-Gun, CHUNG Koon-Seok. Investigation of auxiliary poles design criteria on reduction of end effect of detent force for PMLSM. J IEEE Trans Magnetics 2009; 45(6): 2863−2866.

DOI: 10.1109/tmag.2009.2018778

[6] Guo Yaoyao, Liu Chengying, Wang Xiankui. Study on normal force in permanent magnet linear motor in machine tool feeding system. J Chinese Mechanical Engineering 2007; 18(10): 1174-1177.

[7] XIA J ia-kuan, ZHAO Peng, H UANG Wei. Study on the normal force of a linear servo motor. Electrical Switches 2010; 4: 15-17.

[8] JANG Ki-bong, KIM Jee-hyun, AN Ho-jin. Optimal design of auxiliary-teeth to solve circulation current reduction of permanent magnet linear synchronous motor. J Cent. South Univ. Technol 2011; 18: 690−696.

DOI: 10.1007/s11771-011-0749-8

[9] Miralem H., Viktor G., Tine M. Magnetic field analysis in slotless PM linear motor model: comparison of calculated and measured results. Electrical Review 2011; 87(3): 65-69.

[10] Z.Q. Zhu, et al. Analytical modeling and finite element computation of radial vibration force in fractional-slot permanent magnet brushless machines. IEEE Trans. Industry Applications 2010; 46(5): 1908-(1918).

DOI: 10.1109/tia.2010.2058078
