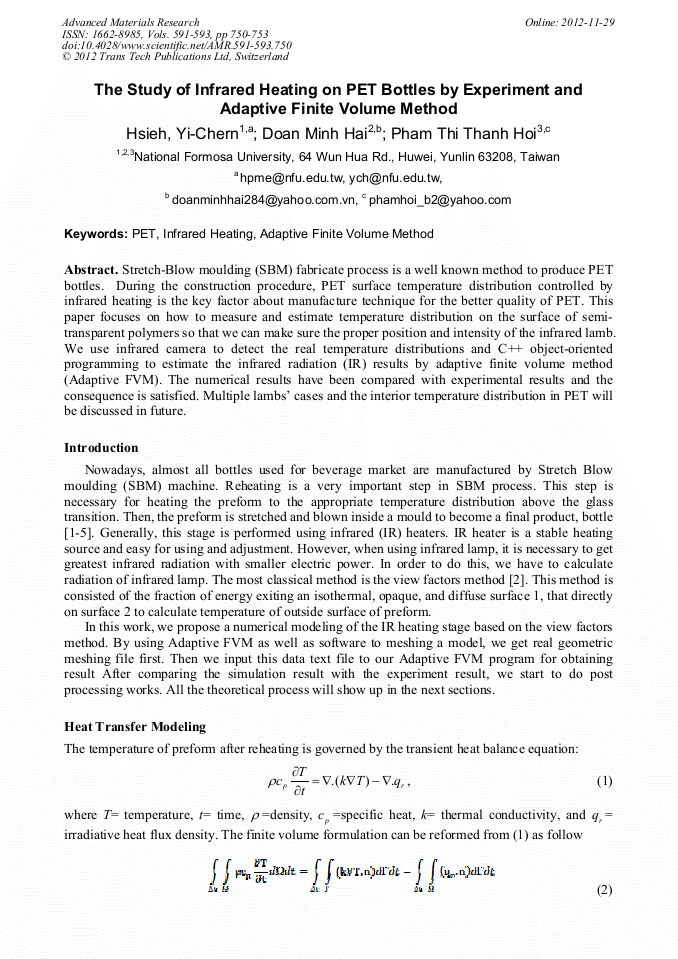

The Study of Infrared Heating on PET Bottles by Experiment and Adaptive Finite Volume Method

Abstract:

Stretch-Blow moulding (SBM) fabricate process is a well known method to produce PET bottles. During the construction procedure, PET surface temperature distribution controlled by infrared heating is the key factor about manufacture technique for the better quality of PET. This paper focuses on how to measure and estimate temperature distribution on the surface of semi-transparent polymers so that we can make sure the proper position and intensity of the infrared lamb. We use infrared camera to detect the real temperature distributions and C++ object-oriented programming to estimate the infrared radiation (IR) results by adaptive finite volume method (Adaptive FVM). The numerical results have been compared with experimental results and the consequence is satisfied. Multiple lambs’ cases and the interior temperature distribution in PET will be discussed in future.

• Periodical: Advanced Materials Research (Volumes 591-593)
• Pages: 750-753
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.591-593.750
• Online since: November 2012
• Authors: Yi Chern Hsieh, Minh Hai Doan, Thi Thanh Hoi Pham
• Keywords: Adaptive Finite Volume Method, Infrared Heating, PET

References

[1] Bordival M., Schmidt F.M., Le Maoult Y., Velay V.: Optimization of Preform Temperature Distribution for the Stretch-Blow Molding of PET Bottles: Infrared Heating and Blowing Modeling. Polym. Eng. Sci. 49: 783-793, (2009).

DOI: 10.1002/pen.21296

[2] Monteix S., Schmidt F., Le Maoult Y., Yedder R.B., Diraddo R.W., Laroche D.: Experimental study and numerical simulation of preform sheet exposed to infrared radiative heating. J. Mater. Proc. Tech., 119: 90-97, (2001).

DOI: 10.1016/s0924-0136(01)00882-2

[3] M. Bordival, , F.M. Schmidt, Y. Le Maoult, B. Cosson, B. Plantamura A ray traing method to simulate the infrared heating of semi-transparent thermoplastic (2010).

DOI: 10.1007/s12289-010-0893-y

[4] Erchiqui F., Hamani I., Charette A.: Modélisation par éléments finis du chauffage infrarouge des membranes thermoplastiques semi-transparentes. International Journal of Thermal Sciences 48: 73-84, (2009).

DOI: 10.1016/j.ijthermalsci.2008.03.007

[5] Frank P. Incropera, David P. Dewitt: Fundamentals of Heat and Mass Transfer, Fourth edition, Chapter 13, pp.718-755.

[6] Jinn-Liang Liu, Ing-Jer Lin, Mao-Chung Hsieh: An outline of adaptive computation: Theory, implementation, and applications, J. Chinese Soci. Mech. Engrg., Vol 19, pp.149-157, (1998).

[7] Jinn-Liang Liu, Ing-Jer Lin, Miin-Zhih Shih, Ren-Chuen Chen, Mao-Chung Hsieh: Object-oriented programming of adaptive finite element and finite volume methods, Applied Numerical Mathematics, Volume 21, Issue 4, Pages 439-467, (1996).

DOI: 10.1016/s0168-9274(96)00044-x
