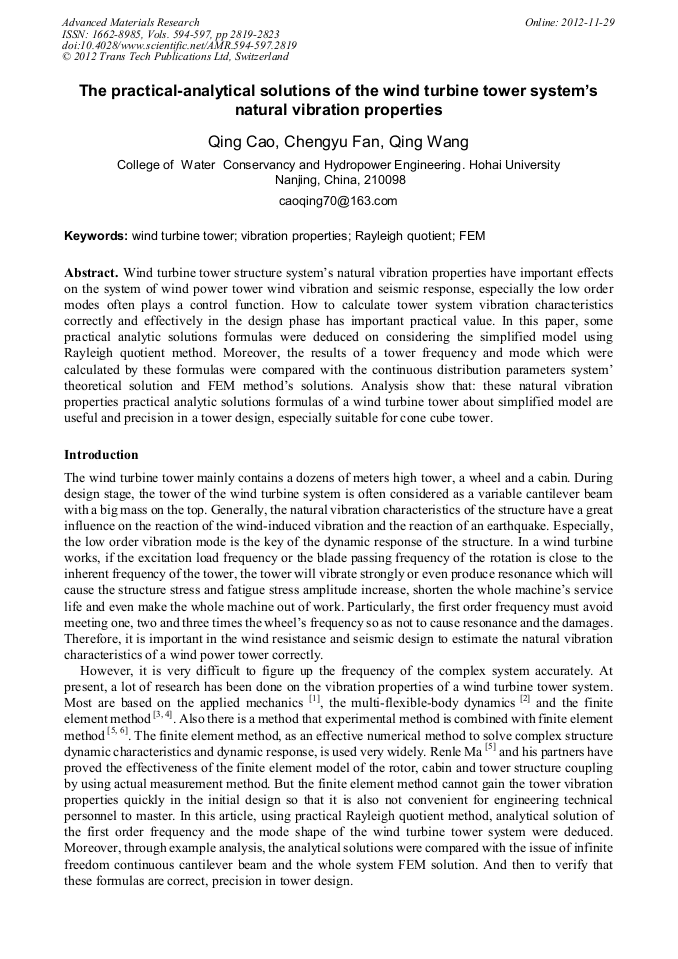

The Practical-Analytical Solutions of the Wind Turbine Tower System’s Natural Vibration Properties

Abstract:

Wind turbine tower structure system’s natural vibration properties have important effects on the system of wind power tower wind vibration and seismic response, especially the low order modes often plays a control function. How to calculate tower system vibration characteristics correctly and effectively in the design phase has important practical value. In this paper, some practical analytic solutions formulas were deduced on considering the simplified model using Rayleigh quotient method. Moreover, the results of a tower frequency and mode which were calculated by these formulas were compared with the continuous distribution parameters system’ theoretical solution and FEM method’s solutions. Analysis show that: these natural vibration properties practical analytic solutions formulas of a wind turbine tower about simplified model are useful and precision in a tower design, especially suitable for cone cube tower.

• Periodical: Advanced Materials Research (Volumes 594-597)
• Pages: 2819-2823
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.594-597.2819
• Online since: November 2012
• Authors: Qing Cao*, Chen Yu Fan, Qing Wang
• Keywords: Finite Element Method (FEM), Rayleigh Quotient, Vibration Properties, Wind Turbine Tower

References

[1] Yanjuan Zhang, Menglin Lou. The modal characteristics analysis of wind turbine. Chinese journal of applied mechanics, 2010, 27(3): 626-629. (In chinese)

[2] Lee D，Hodges D H，Patil M J．Multi-flexible-body dynamic analysis of horizontal axis wind turbines．Wind Energy， 2002， ( 5 ) : 281－ 300．

DOI: 10.1002/we.66

[3] Lobtiz D W． A Nanstran-based computer program of structural dynamic analysis of horizontal axis wind turbine［C］． Proceedings of the Horizontal Axis Wind Turbine Technology Workshop，Department of Energy and NASALewis，Cleveland，1984．

DOI: 10.2514/6.2023-1154.vid

[4] Murtagh P J，Basu B，Broderick B M． Along-wind response of a wind turbine tower with blade coupling subjected to rotationally sampled wind loading． Engineering Structures，2005, 27( 8) : 1209 － 1219．

DOI: 10.1016/j.engstruct.2005.03.004

[5] Thomas G C，Arlo N． Modal testing of a rotating wind turbine［R ］． SAND82 － 0631, Sandia: Sandia National Laboratories，1983．

[6] Ma Renle, Ma Yueqiang , Liu Huiqun. Ambient vibration test and numerical simulation for modes of wind turbine towers. Journal of vibration and shock, 2011,30(5): 152-155. (In chinese)

[7] Clough RayW, Penzien Joseph. Dynamics and structure [M]. Wang guangyuan translation .Beijing:Higher education press,1989. (In chinese)

[8] Jicheng Qian, Daoyuan Xu. Materials mechanics[M]. Nanjing: Hehai university press, 1993(In chinese).
