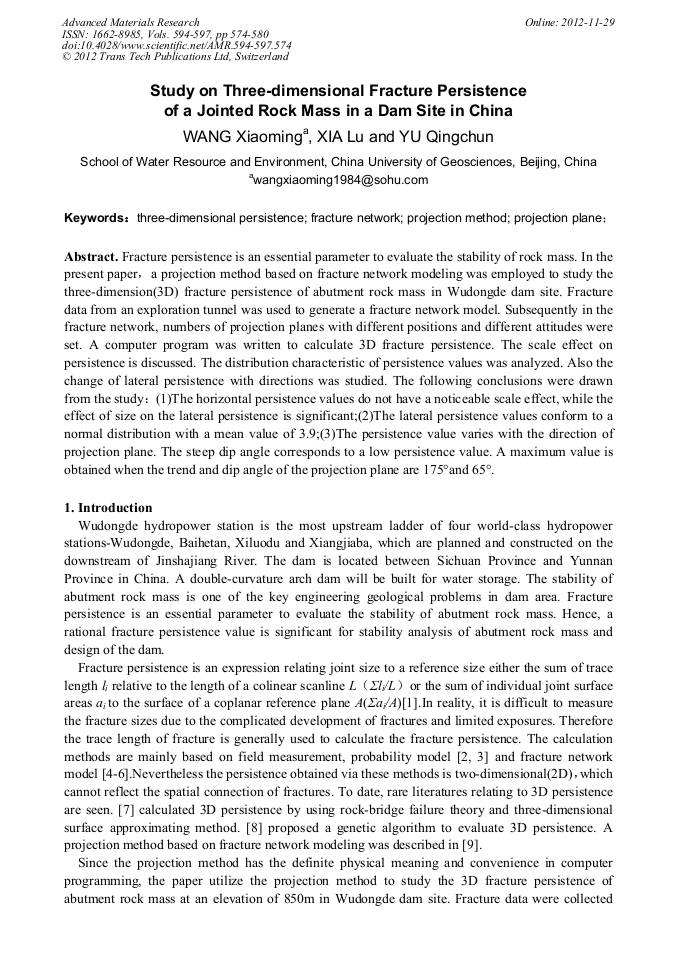

Study on Three-Dimensional Fracture Persistence of a Jointed Rock Mass in a Dam Site in China

Abstract:

Fracture persistence is an essential parameter to evaluate the stability of rock mass. In the present paper，a projection method based on fracture network modeling was employed to study the three-dimension(3D) fracture persistence of abutment rock mass in Wudongde dam site. Fracture data from an exploration tunnel was used to generate a fracture network model. Subsequently in the fracture network, numbers of projection planes with different positions and different attitudes were set. A computer program was written to calculate 3D fracture persistence. The scale effect on persistence is discussed. The distribution characteristic of persistence values was analyzed. Also the change of lateral persistence with directions was studied. The following conclusions were drawn from the study：(1)The horizontal persistence values do not have a noticeable scale effect, while the effect of size on the lateral persistence is significant;(2)The lateral persistence values conform to a normal distribution with a mean value of 3.9;(3)The persistence value varies with the direction of projection plane. The steep dip angle corresponds to a low persistence value. A maximum value is obtained when the trend and dip angle of the projection plane are 175°and 65°.

• Periodical: Advanced Materials Research (Volumes 594-597)
• Pages: 574-580
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.594-597.574
• Online since: November 2012
• Authors: Xiao Ming Wang, Lu Xia, Qing Chun Yu
• Keywords: Fracture Network, Projection Method, Projection Plane, Three-Dimensional Persistence

References

[1] W.S. Dershowitz, H.H. Einstein. Characterizing rock joint geometry with joint system models. Rock mechanics and rock engineering Vol. 21(1988), pp.21-51.

DOI: 10.1007/bf01019674

[2] G.M. Huang, R.Q. Huang. Estimation of connectivity of discontinuities by window method. Hydrogeology and Engineering Geology Vol. 25(1998), pp.27-30.

[3] L.M. Fan, R.Q. Huang. Probability model for estimating connectivity rate of discontinuities and its engineering application. Chinese Journal of Rock Mechanics and Engineering Vol. 22(2003), pp.723-725.

[4] H. Li, X.L. Wu and H.C. Zhu. Calculation of line-connectivity of fissure in rock mass. Rock and Soil Mechanics Vol. 22(2011), pp.350-352.

[5] J.C. Du, Z.Y. Chen and X.G. Wang. Application of optimizing methods in calculating persistence ratio and comprehensive shear strength of jointed rock mass. Chinese Journal of Rock Mechanics and Engineering Vol. 22(2003), pp.1441-1447.

[6] G. Rong, C.B. Zhou, H.C. Zhu, et al. Research on fissures network of jointed rock masses in one section of Three Gorges Reservoir. Rock and Soil Mechanics Vol. 25(2004), pp.1122-1126.

[7] F.M. Zhang, X. G Wang, Z. X Jia, et al. 3D joint persistence calculation through random simulation. Chinese Journal of Rock Mechanics and Engineering Vol. 23(2004), pp.1486-1490.

[8] B. Lu, J.P. Chen, B.F. Shi, et al. Application of genetic algorithm to evaluate 3D persistence of jointed rock mass. Chinese Journal of Rock Mechanics and Engineering Vol. 23(2004), pp.3470-3474.

[9] J.P. Chen, B. Lu, X. M Gu, et al. Determining three-dimensional connectivity of rock mass discontinuity by projection. Chinese Journal of Rock Mechanics and Engineering Vol. 24(2005), pp.2617-2621.

[10] Q.C. Yu, F.S. Liu and Y. Ohnishi. Three-dimensional planar model for fluid flow in discrete fracture network of rock masses. Chinese Journal of Rock Mechanics and Engineering Vol. 24(2005), pp.622-627.

[11] Q. C Yu, Y. Ohnishi. Three-dimensional discrete fracture network model and its inverse method. Earth Science-Journal of China University of Geosciences Vol. 28(2003), pp.522-526.
