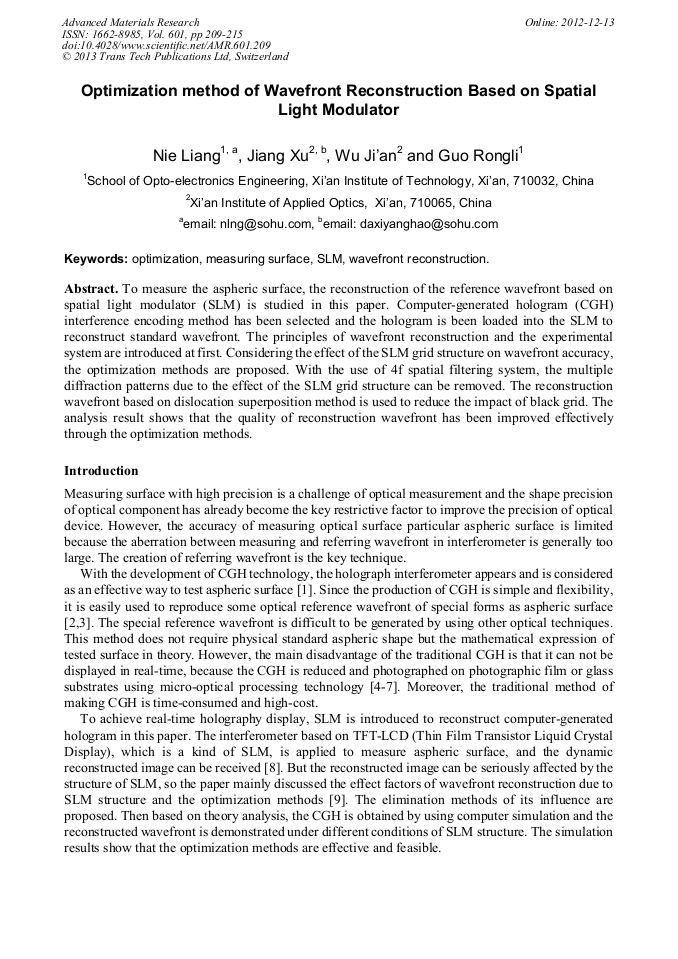

Optimization Method of Wavefront Reconstruction Based on Spatial Light Modulator

Abstract:

To measure the aspheric surface, the reconstruction of the reference wavefront based on spatial light modulator (SLM) is studied in this paper. Computer-generated hologram (CGH) interference encoding method has been selected and the hologram is been loaded into the SLM to reconstruct standard wavefront. The principles of wavefront reconstruction and the experimental system are introduced at first. Considering the effect of the SLM grid structure on wavefront accuracy, the optimization methods are proposed. With the use of 4f spatial filtering system, the multiple diffraction patterns due to the effect of the SLM grid structure can be removed. The reconstruction wavefront based on dislocation superposition method is used to reduce the impact of black grid. The analysis result shows that the quality of reconstruction wavefront has been improved effectively through the optimization methods.

• Periodical: Advanced Materials Research (Volume 601)
• Pages: 209-215
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.601.209
• Online since: December 2012
• Authors: Liang Nie, Xu Jiang, Jian Wu, Rong Li Guo
• Keywords: Measuring Surface, Optimization, SLM, Wavefront Reconstruction

References

[1] Takashi Gemma, Maasyuki Hideshima: Interferometer for testing aspheric surface with electron-beam computer generated holograms, Optical Testing and Metrology III, SPIE, 1990, 1332: 77-84.

DOI: 10.1117/12.51053

[2] Cuche E, Marquet P, Depeursinge C: Spatial filteringfor zero-order and twin-image elimination in digital off　axis holography, Appl Opt, 2000, 39(23): 4070.

DOI: 10.1364/ao.39.004070

[3] Ono A, Wyant J. C.: Aspherical mirror testing using a CGH with small errors, Applied Optics, 1985, 24(4), 560-563.

DOI: 10.1364/ao.24.000560

[4] Zs. Papp: New methods in recording and reconstruction digital holograms, Proceedings of SPIE, 2003, 5144, 170-175.

[5] L. Hu, L. Xuan, Y. Liu: Phase-only liquid crystal spatial light modulator for wavefront correction with high precision, Opt. Express 2004, 12(26), 6403–6409.

DOI: 10.1364/opex.12.006403

[6] Takeda M, ma H, Kobayashi S.: Fourier-transform method of fringe-pattem analysis for computer-based topography and interferometry, J. Opt. Soc. Amer A. , 1982, 72(1) l56-l60.

DOI: 10.1364/josa.72.000156

[7] Keyvan Sayyah, Anson Au, Uzi Efron: High-resolution liquid-crystal based spatial light modulator with a thin crystalline silicon photosubstrate structure, APPLIED OPTICS, 1996, 35(29): 5761-5764.

DOI: 10.1364/ao.35.005761

[8] Hirohisa Kawamoto: The history of liquid crystal displays, IEEE, 2002, 90(4), 460-500.

[9] Y. Liu, L. Xuan, L. Hu: Investigation on the liquid crystal spatial light modulator with high precision and pure phase, Acta Opt. 2005, 25(21), 1682–1686.
