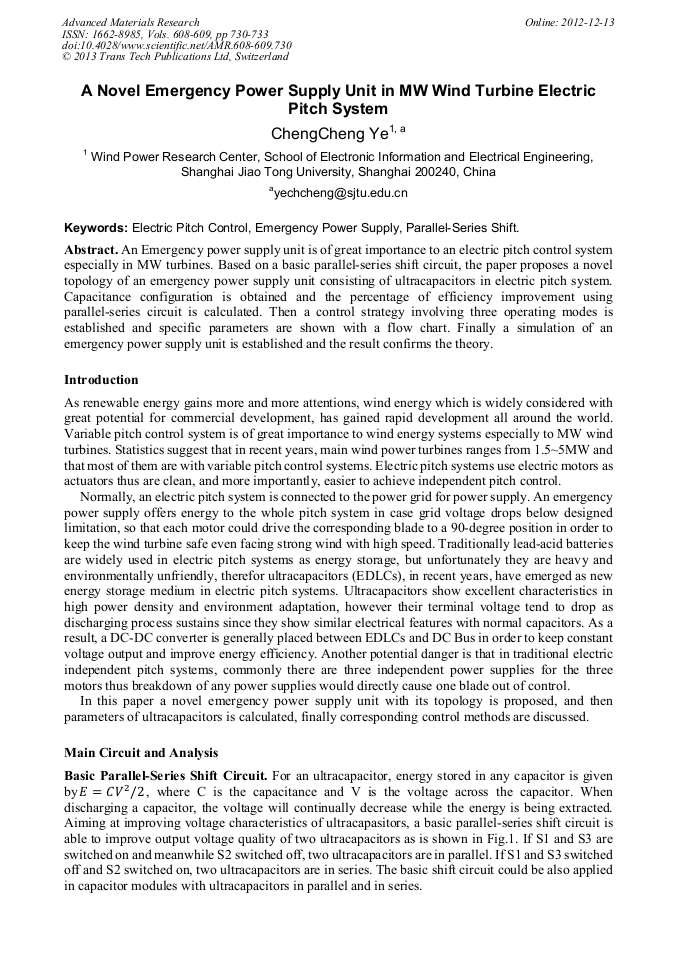

A Novel Emergency Power Supply Unit in MW Wind Turbine Electric Pitch System

Abstract:

An Emergency power supply unit is of great importance to an electric pitch control system especially in MW turbines. Based on a basic parallel-series shift circuit, the paper proposes a novel topology of an emergency power supply unit consisting of ultracapacitors in electric pitch system. Capacitance configuration is obtained and the percentage of efficiency improvement using parallel-series circuit is calculated. Then a control strategy involving three operating modes is established and specific parameters are shown with a flow chart. Finally a simulation of an emergency power supply unit is established and the result confirms the theory.

• Periodical: Advanced Materials Research (Volumes 608-609)
• Pages: 730-733
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.608-609.730
• Online since: December 2012
• Authors: Cheng Cheng Ye
• Keywords: Electric Pitch Control, Emergency Power Supply, Parallel-Series Shift

References

[1] Xiang Fang, Nasser Kutkut, John Shen and Issa Batarseh: Renewable Energy 36 (2011) 2599-2604

DOI: 10.1016/j.renene.2010.05.003

[2] Tongzhen Wei, Sibo Wang, Zhiping Qi: Design of Supercapacitor Based Ride-Through System for Wind Turbine Pitch Systems (ICEMS'07)294-297.

DOI: 10.1109/icems12746.2007.4412243

[3] Technical Requirements of Wind Farm Grid Connection (Revised Version), State Grid Corporation of China, 2009-327 (In Chinese)

[4] Li Hai Dong: Study on Supercapacitor modular Technology [D]. (2006) (In Chinese)

[5] Lifu Xin, Song Yang, Haichun Zhao. China. Patent 200820233828.1 (In Chinese)
