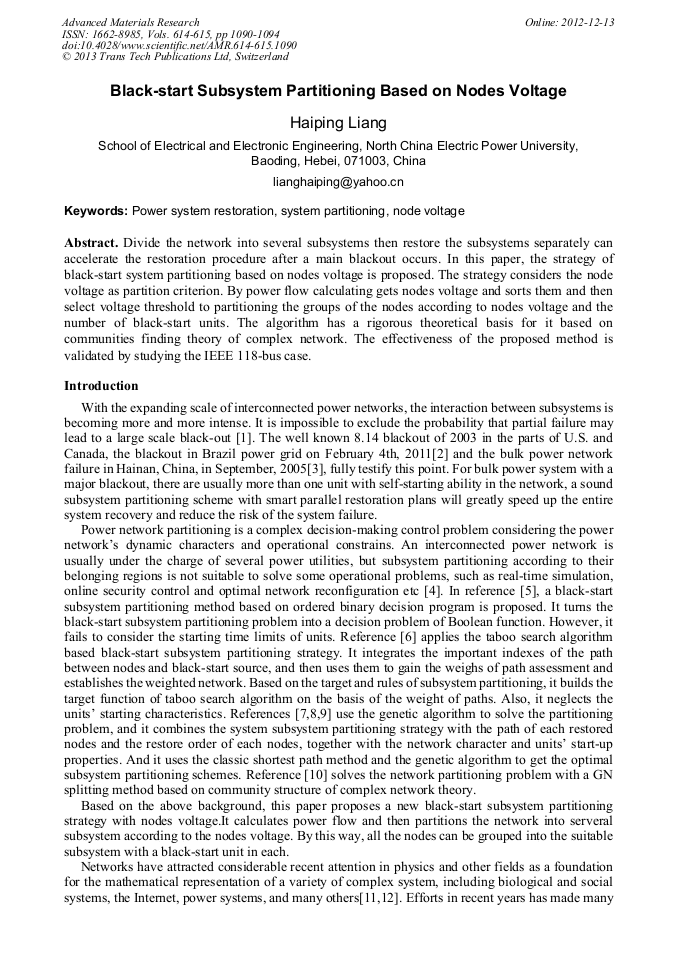

Black-Start Subsystem Partitioning Based on Nodes Voltage

Abstract:

Divide the network into several subsystems then restore the subsystems separately can accelerate the restoration procedure after a main blackout occurs. In this paper, the strategy of black-start system partitioning based on nodes voltage is proposed. The strategy considers the node voltage as partition criterion. By power flow calculating gets nodes voltage and sorts them and then select voltage threshold to partitioning the groups of the nodes according to nodes voltage and the number of black-start units. The algorithm has a rigorous theoretical basis for it based on communities finding theory of complex network. The effectiveness of the proposed method is validated by studying the IEEE 118-bus case.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 1090-1094
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.1090
• Online since: December 2012
• Authors: Hai Ping Liang
• Keywords: Node Voltage, Power System Restoration, System Partitioning

References

[1] H.M. Xiong, X.Y. Fang and W.Y. Yu, The summary of black-start-restoration of electrical power system after blackout, Proceedings of the EPSA, vol. 11(3), pp.12-17, 1999.

[2] W.F. Lin, Y. Tang and H.D. Sun, Blackout in Brazil power grid on February 4, 2011 and inspirations for stable operation of power grid (in Chinese), Automation of Electric Power Systems, vol. 35(9), pp.1-8, 2011.

[3] S.T. Tang, M. Zhang and J.S. Li, Review of blackout in Hainan on September 26th cause and recommendations (in Chinese), Automation of Electric Power Systems, vol. 30(1), pp.1-7, 16, (2006)

[4] I. Kamwa, A.K. Pradhan and G. Joos, Fuzzy partitioning of a real power system for dynamic vulnerability assessment, IEEE Transactions on Power Systems, vol. 24(3), pp.1356-1365, 2009.

DOI: 10.1109/tpwrs.2009.2021225

[5] Y.S. Liu, W.C. Wu and Y.Q. Feng, Black-start zone partitioning based on ordered binary decision diagram method, Proceedings of the CSEE, vol. 28(10), pp.26-31, 2008.

[6] Y. Wu, X.Y. Fang and Y. Zhang, X.F. Yuan, Tabu search algorithm based black-start zone partitioning (in Chinese), Power System Protection and Control, vol. 38(10), pp.6-11, 2010.

[7] S.O. Orero, M.R. Irving, A genetic algorithm for network partitioning in power system state estimation, IEEE Transactions on Power Systems, vol. 45(5), pp.162-165, 1996.

[8] X.P. Gu, Z.H. Han and H.P. Liang, Optimization of parallel restoration through power system partitioning after blackout, Proceedings of the CSEE, vol. 29(10), pp.41-46, 2009.

[9] H.P. Liang, X.P. Gu and D.W. Zhao, Optimization of system partitioning schemes for power system black-start restoration based on genetic algorithms, Power and Energy Engineering Conference (APPEEC), 2010 Aisa-Pacific.

DOI: 10.1109/appeec.2010.5448728

[10] Z.Z. Lin, F.S. Wen and H. Zhou, A new algorithm for restoration subsystems division based on community structure of complex network theory (in Chinese), Automation of Electric Power Systems, vol. 33(12), pp.12-16, 42, 2009.

[11] M. E. J. Newman, The structure and function of complex networks. SIAM Review 45, 167–256 (2003).

[12] S. Boccaletti, V. Latora and Y. Moreno, Complex networks: Structure and dynamics. Physics Reports 424, 175–308 (2006).

DOI: 10.1016/j.physrep.2005.10.009

[13] F. Wu, Finding communities in linear time: a physics approach [J]. European Physical Journal,2004, 38(2): 331-338．

[14] J.A. Huang，L. Audette and S. Harrison, A systematic method for power system restoration planning[J]. IEEE Transactions on Power Systems，1995,10(2).

DOI: 10.1109/59.387928
