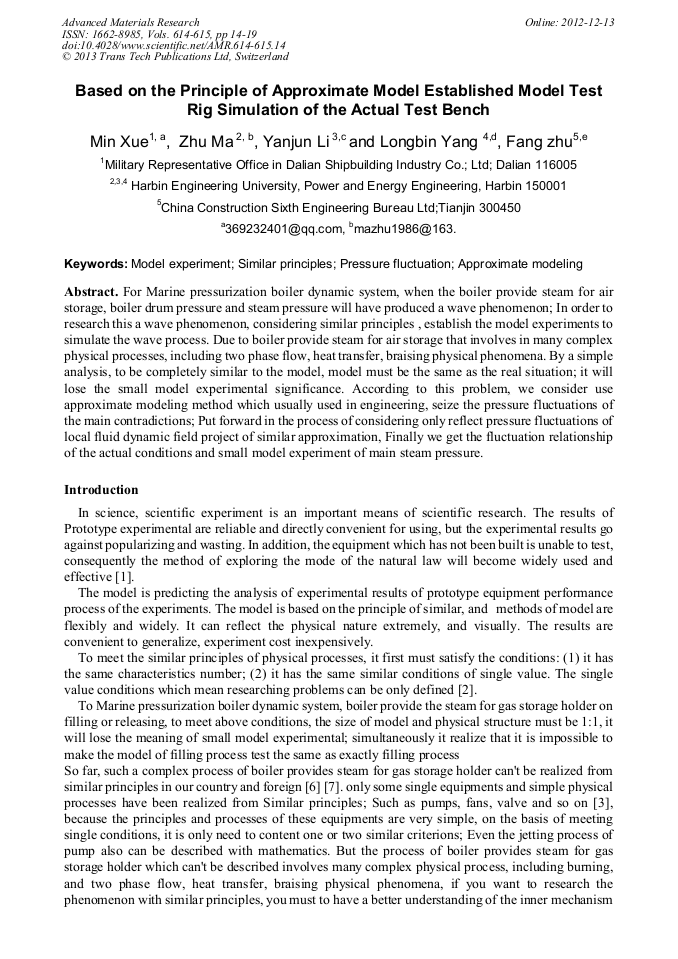

Based on the Principle of Approximate Model Established Model Test Rig Simulation of the Actual Test Bench

Abstract:

For Marine pressurization boiler dynamic system, when the boiler provide steam for air storage, boiler drum pressure and steam pressure will have produced a wave phenomenon; In order to research this a wave phenomenon, considering similar principles , establish the model experiments to simulate the wave process. Due to boiler provide steam for air storage that involves in many complex physical processes, including two phase flow, heat transfer, braising physical phenomena. By a simple analysis, to be completely similar to the model, model must be the same as the real situation; it will lose the small model experimental significance. According to this problem, we consider use approximate modeling method which usually used in engineering, seize the pressure fluctuations of the main contradictions; Put forward in the process of considering only reflect pressure fluctuations of local fluid dynamic field project of similar approximation, Finally we get the fluctuation relationship of the actual conditions and small model experiment of main steam pressure.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 14-19
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.14
• Online since: December 2012
• Authors: Min Xue, Zhu Ma, Yan Jun Li, Long Bin Yang, Fang Zhu
• Keywords: Approximate Modeling, Model Experiment, Pressure Fluctuation, Similar Principles

References

[1] Luo wenquan, Ye shuang Similarity Method of Model Experiment [J]. Thermal Energy Engineering ,1999, 1:17-19.

[2] Yan shi ming，Tao wen quan, Heat Transfer [M]. Beijing:Higher education press 2006, 8: 229-242.

[3] Shen dong，Wang nan gui，Zhang si qing，He shi hua，Xu yi ming. Similar standards in the original design, model jet pump application[J]. Energy Conservation, 1996,4: 14-18.

[4] Li zhi guang，Similar and mode [M]. Beijing:defense industry press,1982,1:109-124.

[5] Jiang shou yi, The model test theory and application[M] Beijing: Science press,1984,1.

[6] Wang, D.Q,Ding, F. Performance analysis of the auxiliary models based multi-innovation stochastic gra-dient estimation algorithm for output error systems .Dig. Signal Process, 2010,20, 20 (3) :750-762 .

DOI: 10.1016/j.dsp.2009.09.002

[7] F. Ding P.X. Liu,G. Liu. Auxiliary model based multi-innovation extended stochastic gradient parameter estimation with colored measurement noises .Signal Process, 2009,89, 89 (10) :1883–1890 .

DOI: 10.1016/j.sigpro.2009.03.020
