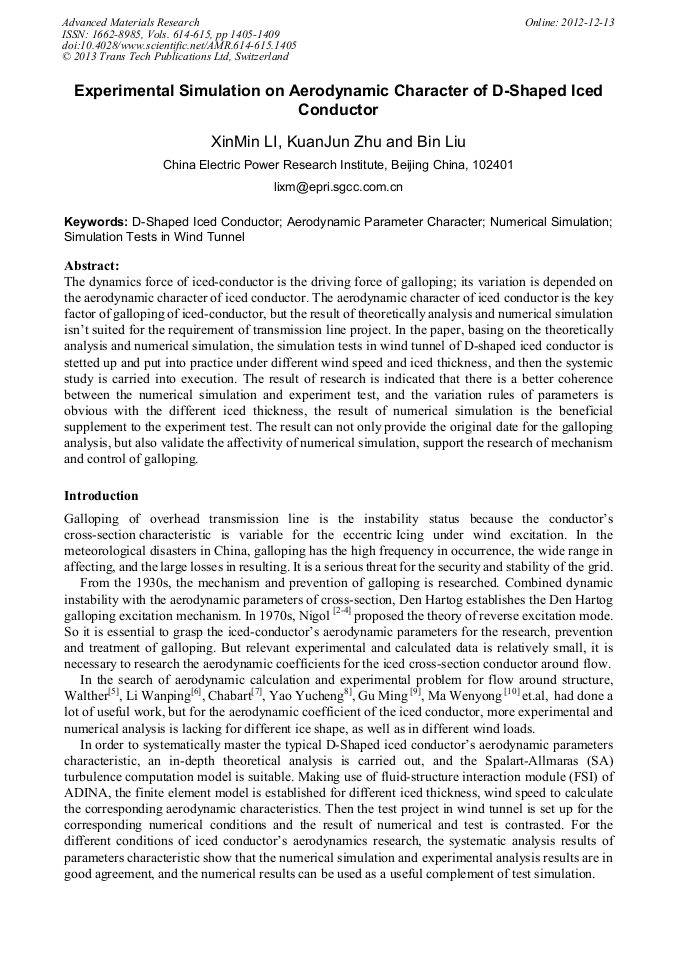

Experimental Simulation on Aerodynamic Character of D-Shaped Iced Conductor

Abstract:

The dynamics force of iced-conductor is the driving force of galloping; its variation is depended on the aerodynamic character of iced conductor. The aerodynamic character of iced conductor is the key factor of galloping of iced-conductor, but the result of theoretically analysis and numerical simulation isn’t suited for the requirement of transmission line project. In the paper, basing on the theoretically analysis and numerical simulation, the simulation tests in wind tunnel of D-shaped iced conductor is stetted up and put into practice under different wind speed and iced thickness, and then the systemic study is carried into execution. The result of research is indicated that there is a better coherence between the numerical simulation and experiment test, and the variation rules of parameters is obvious with the different iced thickness, the result of numerical simulation is the beneficial supplement to the experiment test. The result can not only provide the original date for the galloping analysis, but also validate the affectivity of numerical simulation, support the research of mechanism and control of galloping.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 1405-1409
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.1405
• Online since: December 2012
• Authors: Xin Min Li, Kuan Jun Zhu, Bin Liu
• Keywords: Aerodynamic Parameter Character, D-Shaped Iced Conductor, Numerical Simulation, Simulation Tests in Wind Tunnel

References

[1] Hartog JPD. Transmission Line Vibration Due to Sleet [J]. AIEE, 1932, 51(4):1074-1076.

[2] Nigol PGB. Torsional Stability of Bundle Conductors [J]. IEEE Transactions on Power Apparatus and Systems, Vol. PAS-96, no. 5, September/October 1977,1666-1674

DOI: 10.1109/t-pas.1977.32496

[3] Nigol PGB. Conductor Galloping, Part I: Den Hartog Mechanisim[J]. IEEE Transactions on Power Apparatus and Systems, Vol. PAS-100, No. 2, February 1981Vancouver, Canada, 1981.699-707

DOI: 10.1109/tpas.1981.316921

[4] Nigol PGB. Conductor Galloping, Part II: Torsional Mechanism[J]. EEE Transactions on Power Apparatus and Systems, Vol. PAS-100, No. 2, February 1981Vancouver, Canada, 1981.708-720.

DOI: 10.1109/tpas.1981.316922

[5] Walther J H. Discrete vortex method for two-dimensional flow past bodies of arbitrary shape undergoing prescribed rotary and translation motion [D].Doctoral Dissertation, Technical University of Denmark, DK-2800, Lyngby Denmark, 1994.

[6] Wanping Li, Xinxiang Yang, Lizhi Zhang. Static Aerodynamic Characters of the Galloping of Bundled Iced Power Transmission Lines. [J]. ACTA Aerodynamica Sinica,1995,13(4): 427-434 (in Chinese)

[7] Charbart, J L Lilien. Galloping of electrical lines in wind tunnel facilities [J]. Journal of Wind Engineering, 1998:967—976

DOI: 10.1016/s0167-6105(98)00088-9

[8] YuCheng Yao, Wanping Li, Liangjun Li. Numerical Simulation of Flow over a Bluff Body in High Reynolds Number [J]. Journal of Huazhong University of Science and Technology (Nature Science). 2003,31(2): 106-108 (in Chinese)

[9] Ming Gu, Wenyong Ma, Yong Quan etc.al. Aerodynamic Force Characters and Stability of Two Typical Iced Conductors. [J]. Journal of Tongji University (Nature Science). 2009. 37(10): 1328-1332 (in Chinese)

[10] Wenyong Ma, Ming Gu, Yong Quan etc.al. Testing Study on Aerodynamic Force Characters of Quasi-oval Shaped Iced Conductor. [J]. Journal of Tongji University (Nature Science). 2010.38(10):1409-1413(in Chinese)
