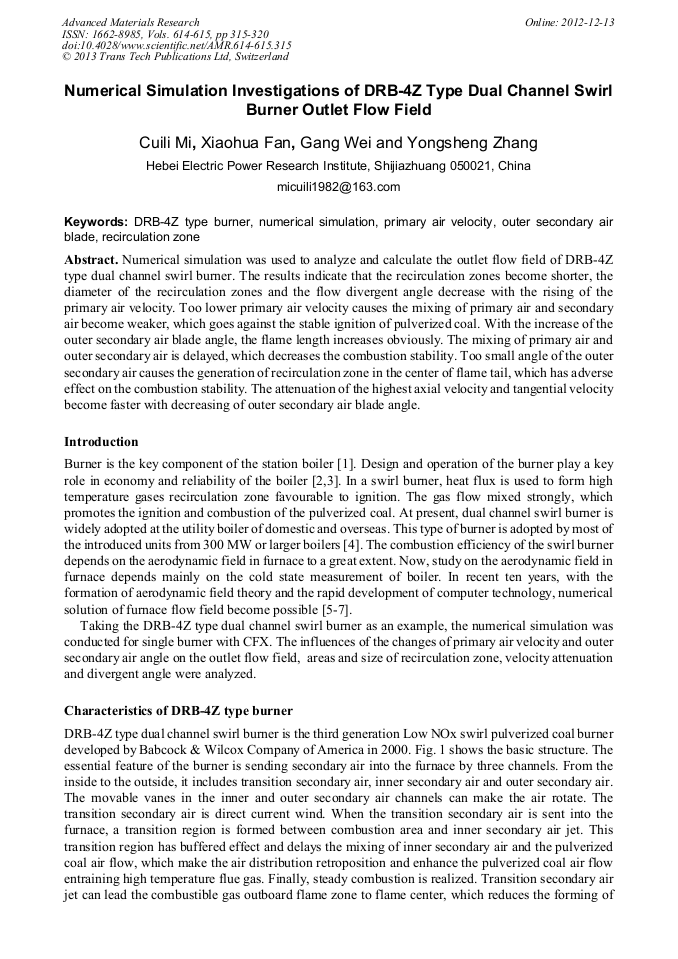

Numerical Simulation Investigations of DRB-4Z Type Dual Channel Swirl Burner Outlet Flow Field

Abstract:

Numerical simulation was used to analyze and calculate the outlet flow field of DRB-4Z type dual channel swirl burner. The results indicate that the recirculation zones become shorter, the diameter of the recirculation zones and the flow divergent angle decrease with the rising of the primary air velocity. Too lower primary air velocity causes the mixing of primary air and secondary air become weaker, which goes against the stable ignition of pulverized coal. With the increase of the outer secondary air blade angle, the flame length increases obviously. The mixing of primary air and outer secondary air is delayed, which decreases the combustion stability. Too small angle of the outer secondary air causes the generation of recirculation zone in the center of flame tail, which has adverse effect on the combustion stability. The attenuation of the highest axial velocity and tangential velocity become faster with decreasing of outer secondary air blade angle.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 315-320
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.315
• Online since: December 2012
• Authors: Cui Li Mi, Xiao Hua Fan, Gang Wei, Yong Sheng Zhang
• Keywords: DRB-4Z Type Burner, Numerical Simulation, Outer Secondary Air Blade, Primary Air Velocity, Recirculation Zone

References

[1] Peiao He, Zhonghu Zhao, Yukun Qin. Design and operation of pulverized coal burner[M]. Beijing: China Machine Press, 1987.

[2] Hai Zhang, Junfu Lv, Kai Cui, et a1. Analysis of design for swirling pulverized coal burners with low NOx emission[J]. Thermal Power Generation, 2010, 39(11): 32-36(in Chinese).

[3] Zhijun Zhou, Congcong Zhou, Jie Shao, et a1. Inflence of secondary air straight flow velocity in the swirl burner upon formation of NOx[J]. Thermal Power Generation, 2010, 39(3): 23-29(in Chinese).

[4] Zhichao Chen, Zhengqi Li, Rui Sun, et a1. Study on fuel bias combustion swirl technology of a 1025 t/h pulverized coal fired boiler[J].Proceedings of the CSEE, 2004, 24(8): 189-194(in Chinese).

[5] Chang Xu, Jianhong Lu, Qingguang Zeng, et a1. Research on aerodynamic field experiments and numerical simulation for the swirling burner of 800MW boiler[J]. Proceedings of the CSEE, 2004, 24(8): 201-204(in Chinese).

[6] Jie Zhang, Rui Sun, Shaohua Wu, et a1. An experim ental and numerical study on swirling combustion process in a 200MW pulverized coal fired boiler[J]. Proceedings of the CSEE, 2003, 23(8): 215-220(in Chinese).

[7] Shouguang Yao, Zheshu Ma, Yumin Sun. Numerical simulation of internal and external aerodynamic field uner cold conditon for dual-passage swirl oil burner with a intake swirler[J]. Chinese Journal of Power Engineering, 2004, 24(3): 323-326(in Chinese).

[8] Wenquan Tao. Fluid flow and heat transfer problems of multiscale numerical simulation[M]. Beijing: Science Press, 2009.
