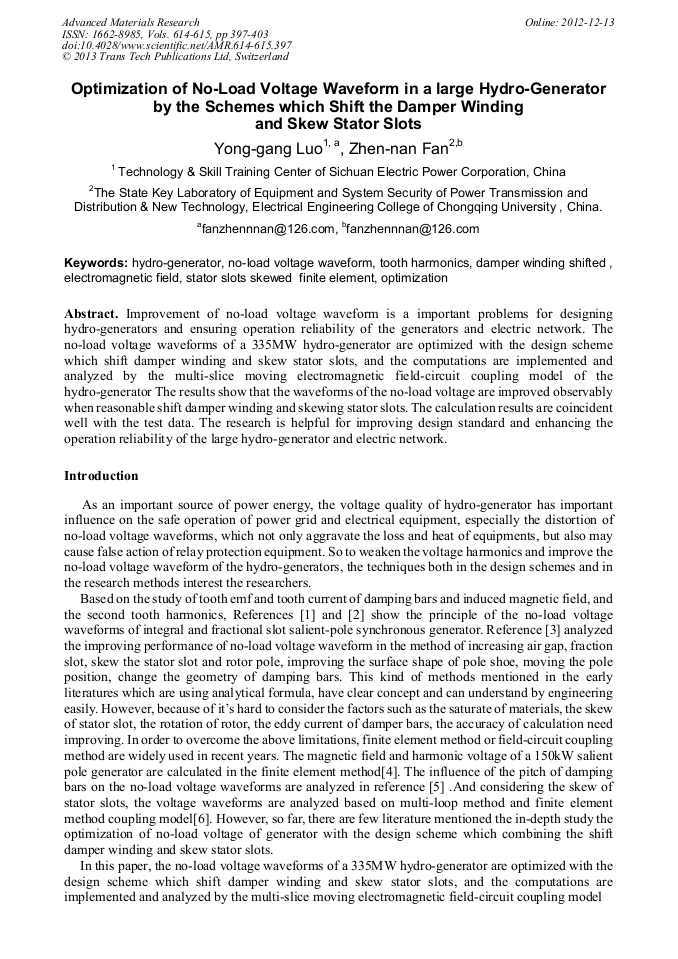

Optimization of No-Load Voltage Waveform in a Large Hydro-Generator by the Schemes which Shift the Damper Winding and Skew Stator Slots

Abstract:

Improvement of no-load voltage waveform is a important problems for designing hydro-generators and ensuring operation reliability of the generators and electric network. The no-load voltage waveforms of a 335MW hydro-generator are optimized with the design scheme which shift damper winding and skew stator slots, and the computations are implemented and analyzed by the multi-slice moving electromagnetic field-circuit coupling model of the hydro-generator The results show that the waveforms of the no-load voltage are improved observably when reasonable shift damper winding and skewing stator slots. The calculation results are coincident well with the test data. The research is helpful for improving design standard and enhancing the operation reliability of the large hydro-generator and electric network.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 397-403
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.397
• Online since: December 2012
• Authors: Yong Gang Luo, Zhen Nan Fan
• Keywords: Damper Winding Shifted, Electromagnetic Field (EMF), Hydro-Generator, No-Load Voltage Waveform, Optimization, Stator Slots Skewed Finite Element, Tooth Harmonics

References

[1] Wang Yudong, Li Xinggen, "Analysis of No-load Tooth Harmonic E.M.F. of Integral-slot Salient-pole Synchronous Generators withDamper Windings," Journal of Zhejiang University, vol.19,no. 6, pp.12-25, November 1985.

[2] Wang Yudong, Li Xinggen, "Analysis of No-load Tooth Harmonic E.M.F. of Fractional-slot Salient-pole Synchronous Generators with Damper Windings," Large Electric Machine, vol. 15, no. 6, pp.19-21, November 1985.

[3] Li Zhesheng, "Measurement of Improving No-load Voltage Waveforms of Salient-pole Synchronous Generator", Journal of Harbin Institute of Electrical Technology, vol.6, no.3, pp.1-16, Sept 1983.

[4] Chang Eob Kim, J.K. Sykulski, "Harmonic Analysis of Output Voltage in Synchronous Generator Using Finite Element Method Taking Account of the Movement", IEEE Trans on Magnetics, vol.38, no.2, pp.1249-1252, March 2002.

DOI: 10.1109/20.996319

[5] Li Huaishu, Li Langru, Rang Yuqi, "The effect of damper winding on the no-load voltage waveform of salient-pole synchronous generator", Electric Machines and Control, vol.7, no.4, pp.267-271, November 2003.

[6] Wang Shanming, Wang Xiangheng, Li Yixiang, Su Pengsheng, Ma Weiming, Zhang Gaifan, "Steady-State Performance of Synchronous Generators With ac and dc Stator Connections Considering Saturation", IEEE Trans. on Energy Conversion, vol.17, no.2, pp.176-182, June 2002.

DOI: 10.1109/tec.2002.1009465

[7] Fu Li-xin, GB/T 1029-2005．The test measures of three phases synchronous machine, Bei Jing: Standards Press of China, 2006．
