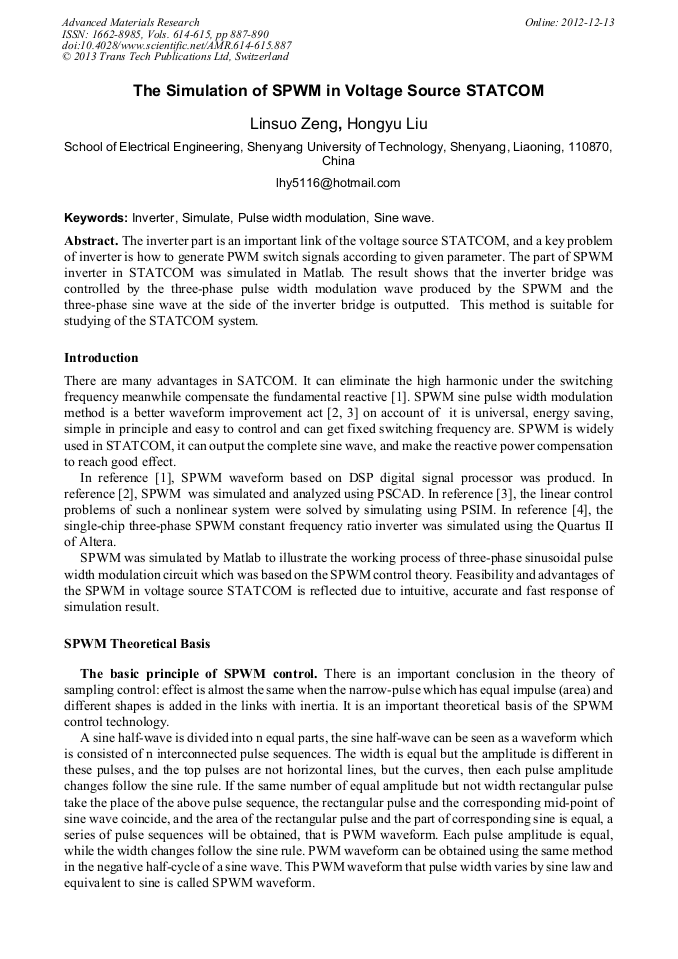

The Simulation of SPWM in Voltage Source STATCOM

Abstract:

The inverter part is an important link of the voltage source STATCOM, and a key problem of inverter is how to generate PWM switch signals according to given parameter. The part of SPWM inverter in STATCOM was simulated in Matlab. The result shows that the inverter bridge was controlled by the three-phase pulse width modulation wave produced by the SPWM and the three-phase sine wave at the side of the inverter bridge is outputted. This method is suitable for studying of the STATCOM system.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 887-890
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.887
• Online since: December 2012
• Authors: Lin Suo Zeng, Hong Yu Liu
• Keywords: Inverter, Pulse Width Modulation (PWM), Simulate, Sine Wave

References

[1] Hongxiang Liu. SPWM control in STATCOM[D]. Yunnan Electric Power. Vol. 39 (2011), pp.80-81.

[2] Xueyin Bai. The research of three-level voltage source STATCOM of SPWM control[J]. Inner Mongolia University of Technology. 2009, pp.3-4

[3] Pengchao Zhang. The research on three phase voltage source PWM inverter[D]. Power electronics. Vol. 44(2010), pp.91-93

[4] Yunyun Ye. The researching and designing on three-phase SPWM controller[D]. China Educational Technology and Equipment.
