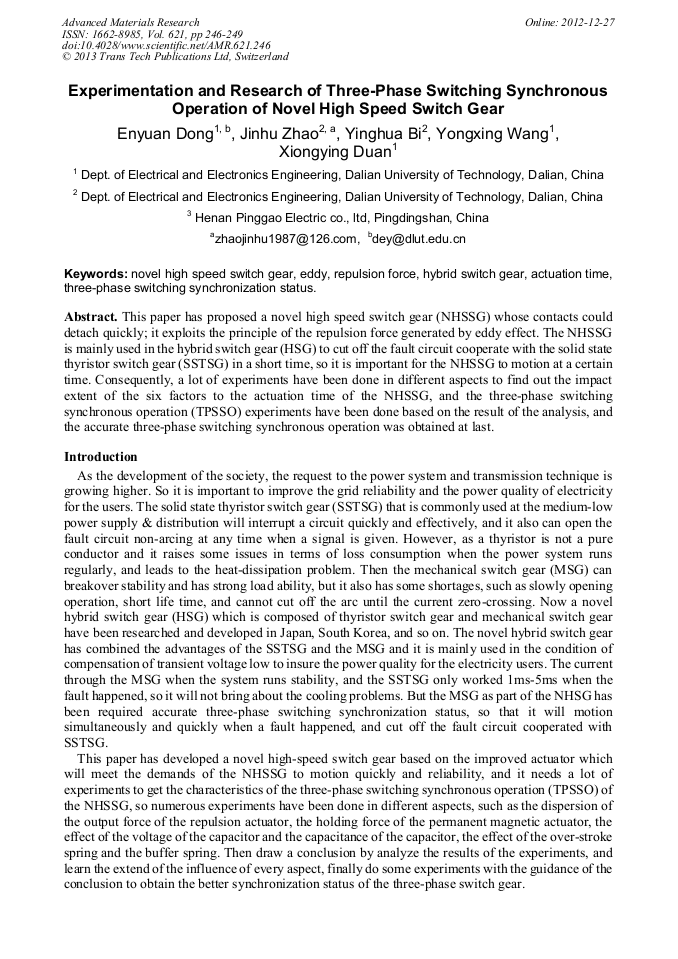

Experimentation and Research of Three-Phase Switching Synchronous Operation of Novel High Speed Switch Gear

Abstract:

This paper has proposed a novel high speed switch gear (NHSSG) whose contacts could detach quickly; it exploits the principle of the repulsion force generated by eddy effect. The NHSSG is mainly used in the hybrid switch gear (HSG) to cut off the fault circuit cooperate with the solid state thyristor switch gear (SSTSG) in a short time, so it is important for the NHSSG to motion at a certain time. Consequently, a lot of experiments have been done in different aspects to find out the impact extent of the six factors to the actuation time of the NHSSG, and the three-phase switching synchronous operation (TPSSO) experiments have been done based on the result of the analysis, and the accurate three-phase switching synchronous operation was obtained at last.

• Periodical: Advanced Materials Research (Volume 621)
• Pages: 246-249
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.621.246
• Online since: December 2012
• Authors: En Yuan Dong, Jin Hu Zhao, Ying Hua Bi, Yong Xing Wang, Xiong Ying Duan
• Keywords: Actuation Time, Eddy, Hybrid Switch Gear, Novel High Speed Switch Gear, Repulsion Force, Three-Phase Switching Synchronization Status

References

[1] Enyuan Dong, Peng Tian, Yongxing Wang and Wei Liu, The Design and Experimental Analysis of High-speed Switch in 1. 14kV Level Based on Novel Repulsion Actuator, DRPT, 2011 4th International Conference on Digital Object Identifier. (2011).

DOI: 10.1109/drpt.2011.5993995

[2] Mitsuru. T, Toshie. T, Kenichi. K, Hajimu. Y, Development of a High-Speed Electromagnetic Repulsion Mechanism for High-Voltage Vacuum Circuit Breakers, Electrical Engineering in Japan, (2008), 163(1), pp.34-39.

DOI: 10.1002/eej.20398

[3] Li Bo, Research on High-Speed Repulsion Driver and Fast Monitoring Apparatus of Fault Current, Master Dissertation of Dalian University of Technology, (2006) , Chapter 2.

[4] Zhanfeng Zheng, Dongen Yuan, Jiyan Zou, Peng Tian, Zhenwei Zhang, Development of a High Speed Vaccum Switch Rated Voltage 3. 6kV, Applied Mechanics and Materials, Vols. 52-54 (2011), pp.2122-2127.

DOI: 10.4028/www.scientific.net/amm.52-54.2122

[5] Tomonori Koyama, Katsuyuke Kaiho, Iwao Yamaguchi, Satoru Yanabu. Study of Superconductor Recovery Time Characteristics and High-speed Reclosing of Electromagnetic Repulsion Switch, Electrical Engineering in Japan, Vol. 175, No. 3, (2011).

DOI: 10.1002/eej.21072

[6] Tian Peng, The Research on a Novel Repulsion Actuator with Permanent Magnetic Holding Structure, Master Dissertation of Dalian University of Technology, (2011) , Chapter 4.
