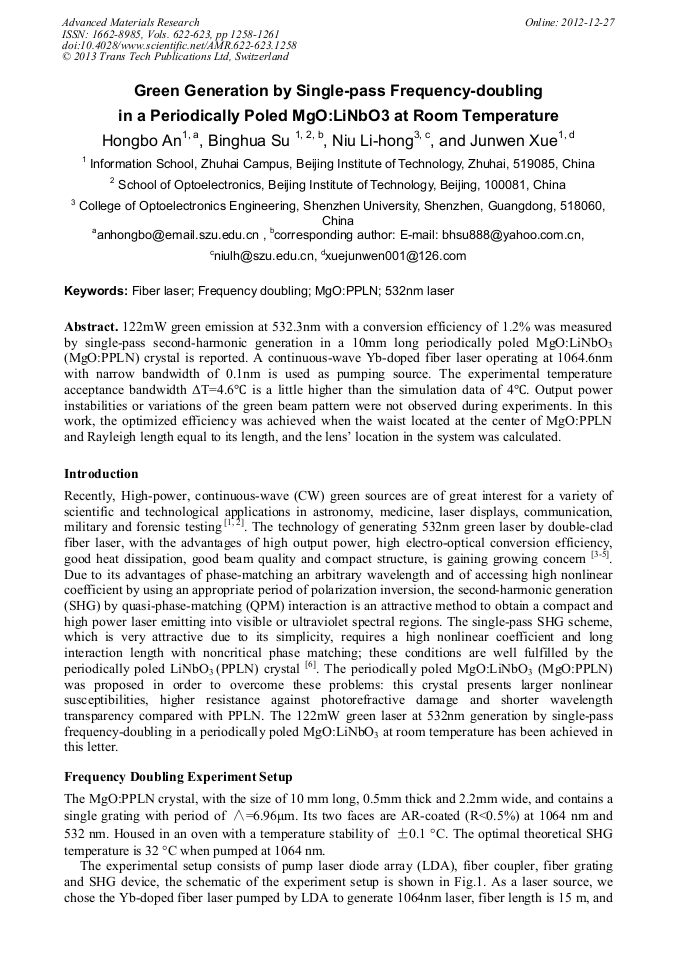

Green Generation by Single-Pass Frequency-Doubling in a Periodically Poled MgO:LiNbO₃ at Room Temperature

Abstract:

122mW green emission at 532.3nm with a conversion efficiency of 1.2% was measured by single-pass second-harmonic generation in a 10mm long periodically poled MgO:LiNbO3 (MgO:PPLN) crystal is reported. A continuous-wave Yb-doped fiber laser operating at 1064.6nm with narrow bandwidth of 0.1nm is used as pumping source. The experimental temperature acceptance bandwidth ΔT=4.6°C is a little higher than the simulation data of 4°C. Output power instabilities or variations of the green beam pattern were not observed during experiments. In this work, the optimized efficiency was achieved when the waist located at the center of MgO:PPLN and Rayleigh length equal to its length, and the lens’ location in the system was calculated.

• Periodical: Advanced Materials Research (Volumes 622-623)
• Pages: 1258-1261
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.622-623.1258
• Online since: December 2012
• Authors: Hong Bo An, Bing Hua Su, Li Hong Niu, Jun Wen Xue
• Keywords: 532nm Laser, Fiber Laser, Frequency Doubling, MgO:PPLN

References

[1] He Jing-liang, Hou Wei, Zhang Heng-li, Wu Ling-an, Xu Zu-yan, Yang Guo-zhen, Wang Jian-ming, Zhao Zong-yuan, Wu Xing and Li Jian. Continuous wave output of 5. 5W at 532nm by intracavity frequency doubling of a Nd: YVO4 Laser[J]. China physics, 1998, 15(6): 418-419.

DOI: 10.1088/0256-307x/15/6/011

[2] Xu Degang, Yao Jianquan, Guo Li, Zhou Rui, Chen Jin, Yu Yizhong, Ding Xin, Zhang Baigang, Wen Wuqi, Wang Peng. 104W Laser Diode -Pumped Intracavity Frequency –Doubled Nd: YAG Green Light Laser[J]. ACTA OPTICA SINICA, 2004, 24(7): 925-928.

DOI: 10.1063/1.36712

[3] G.K. Samanta, S. Chaitanya Kumar, Kavita Devi and M, Ebrahim-Zadeh. 55%-Efficient, 13-W, Single-Pass SHG of a CW Yb-Fiber Laser in a Double-Crystal Scheme[C]. Conference on Lasers and Electro-Optics (2010).

DOI: 10.1364/cleo.2010.cwq7

[4] Zhu Xiaozheng, Zhou Jun, Lou Qihong, Dong Jingxing, Wei Yunrong, Chen Xianfeng, Xia Yuxing, Chen Lijun. Experimental Investigation of Quasi-CW Frequency-Doubling of BroadBand Fiber Laser in Periodically Poled Lithium Niobate[J]. ACTA OPTICA SINICA, 2004, 24(10): 1330-1334.

DOI: 10.1109/aoe.2007.4410854

[5] R. Cieslak, J.K. Sahu, W.A. Clarkson. Efficient Intracavity Frequency Doubling of an Yb-doped Fiber Laser Using an Internal Resonant Enhancement Cavity[C]. Conference on Lasers and Electro-Optics (2010).

DOI: 10.1364/cleo.2010.cmw4

[6] G.D. Miller, R.G. Batchko, W.M. Tulloch, D.R. Weise, M.M. Fejer, and R.L. Byer. 42%-efficient single-pass cw second-harmonic generation in periodically poled lithium niobate[J]. Opt. Lett. 22, 1834-1836 (1997).

DOI: 10.1364/ol.22.001834

[7] Tan Yu, Binghua Su, Hongbo An and Junwen Xue. All-fiber Laser With Narrow Line width at 1064nm[C]. Am. J. Eng. Technol. Res., 2011, 11(12): 3357-3360.

DOI: 10.1109/csip.2012.6308840

[8] Chen Shuang, Wang Ling, Feng Ying. Effects of reflection if fiber end on characteristics of high power fiber amplifier[J]. HIGH POWER LASER AND PARTICLE BEAMS, 2008, 20(12): 1997-(2000).

[9] Boyd G D., Kleinman D A. Parametric interaction of focused Gaussian light beams[J]. Quantum Electronics, IEEE, 1968, 4(5): 353.

DOI: 10.1109/jqe.1968.1075330
