Effect of Natural Antioxidants on Curing Characteristics and Crosslink Density of Natural Rubber Vulcanisate

Abstract:

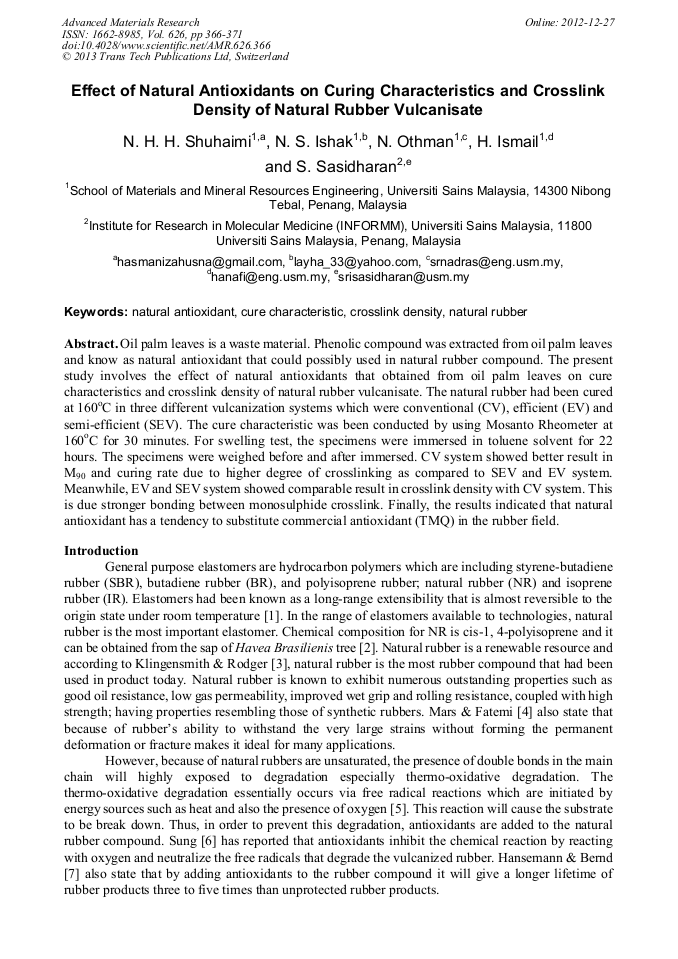

Oil palm leaves is a waste material. Phenolic compound was extracted from oil palm leaves and know as natural antioxidant that could possibly used in natural rubber compound. The present study involves the effect of natural antioxidants that obtained from oil palm leaves on cure characteristics and crosslink density of natural rubber vulcanisate. The natural rubber had been cured at 160°C in three different vulcanization systems which were conventional (CV), efficient (EV) and semi-efficient (SEV). The cure characteristic was been conducted by using Mosanto Rheometer at 160°C for 30 minutes. For swelling test, the specimens were immersed in toluene solvent for 22 hours. The specimens were weighed before and after immersed. CV system showed better result in M₉₀ and curing rate due to higher degree of crosslinking as compared to SEV and EV system. Meanwhile, EV and SEV system showed comparable result in crosslink density with CV system. This is due stronger bonding between monosulphide crosslink. Finally, the results indicated that natural antioxidant has a tendency to substitute commercial antioxidant (TMQ) in the rubber field.

• Periodical: Advanced Materials Research (Volume 626)
• Pages: 366-371
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.626.366
• Online since: December 2012
• Authors: N.H.H. Shuhaimi, N.S. Ishak, Nadras Othman, Ismail Hanafi, S. Sasidharan
• Keywords: Crosslink Density, Cure Characteristic, Natural Antioxidant, Natural Rubber (NR)

References

[1] C.L. Beyler and M.M. Hirschler, in: SFPE Handbook of Fire Protection Engineering, section 1 of Fundamentals, chapter 7: Thermal Decomposition of Polymer, 2nd Edition, Quincy, mass. : National Fire Protection Assoction; Boston (1995).

[2] I. Khan and B.T. Poh: Journal of Polymer and Environment. Vol. 19 (2011), pp.793-811.

[3] W. Klingensmith and B. Rodger, in: Rubber Compounding: Chemistry and Applications, chapter 1 of Natural Rubber and Recycled Materials, Taylor & Francis, USA (2004).

DOI: 10.1201/9781420030464.ch1

[4] W.V. Mars and A. Fatemi: International Journal of Fatigue. Vol. 24 (2002), pp.949-961.

[5] R.P. Brown, in: Practical Guide to the Assessment of the Useful Life of Rubbers, Rapra technology, Marcel Dekker Inc., New York (2001).

[6] W.H. Sung, in: Rubber Compounding: Chemistry and Application, chapter, 10, Crompton Corporation, Uniroyal Chem: USA (2004).

[7] Hansermann and Bernd, in: Phenolic, Non-staining Antioxidants – A Guide to Select the Right Product, Publication: Rubber World (1990).

[8] M.J. Forrest, in: Rubber Analysis-Polymers, Compounds and Products, volume 12, number 7, Rapra Technology Ltd (2001).

[9] D. A. Baeta; J. A. Zattera; M. G. Oliveira and P. J. Oliveira: Brazilian Journal of Chemical Engineering. Vol. 26 (2009).

[10] G.S. Jeon and S.W. Jeong: Journal of Adhesion. Vol. 79: 11 (2003), pp.997-1015.

[11] M. Komethi, N. Othman, H. Ismail and S. Sasidharan: Journal of Applied Polymer Science. Vol. 124: 2 (2011), pp.1490-1500.

[12] A.P. Kuriakose and G. Rajendharan: Iran Polymer Journal. Vol. 9: 2 (2000), pp.89-96.

[13] S.S. Choi: Influence of Internal Strain on Change of Crosslink Density of Natural Rubber Vulcanizates by Thermal Ageing. Polymer International. Vol. 50 (2001), pp.107-112.

DOI: 10.1002/1097-0126(200101)50:1<107::aid-pi593>3.0.co;2-z

[14] B.C. Bag, A.K. Ghosh, B. Adhikari and S. Maiti: Journal of Polymer Degradation and Stability. Vol. 61 (1998), pp.303-307.

DOI: 10.1016/s0141-3910(97)00214-0
