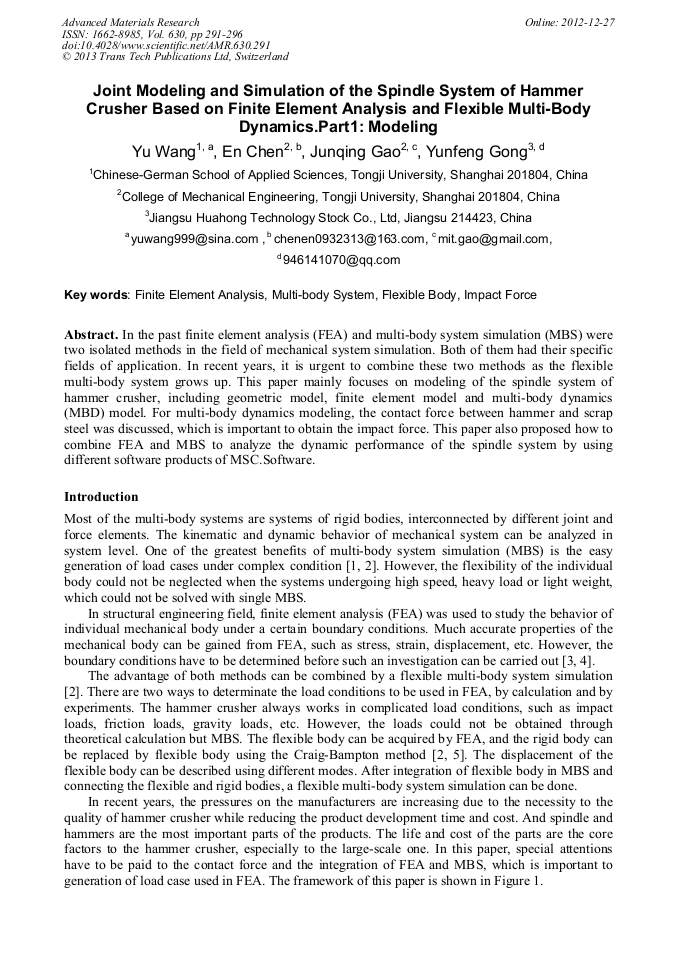

Joint Modeling and Simulation of the Spindle System of Hammer Crusher Based on Finite Element Analysis and Flexible Multi-Body Dynamics. Part1: Modeling

Abstract:

In the past finite element analysis (FEA) and multi-body system simulation (MBS) were two isolated methods in the field of mechanical system simulation. Both of them had their specific fields of application. In recent years, it is urgent to combine these two methods as the flexible multi-body system grows up. This paper mainly focuses on modeling of the spindle system of hammer crusher, including geometric model, finite element model and multi-body dynamics (MBD) model. For multi-body dynamics modeling, the contact force between hammer and scrap steel was discussed, which is important to obtain the impact force. This paper also proposed how to combine FEA and MBS to analyze the dynamic performance of the spindle system by using different software products of MSC.Software.

• Periodical: Advanced Materials Research (Volume 630)
• Pages: 291-296
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.630.291
• Online since: December 2012
• Authors: Yu Wang, En Chen, Jun Qing Gao, Yun Feng Gong
• Keywords: Finite Element Analysis (FEA), Flexible Body, Impact Force, Multi-Body System

References

[1] M. Zaeh and D. Siedl, A New Method for Simulation of Machining Performance by Integrating Finite Element and Multi-body Simulation for Machine Tools, CIRP Annals- Manufacturing Technology, 56, 1 (2007).

DOI: 10.1016/j.cirp.2007.05.089

[2] H. Weule1, J. Fleischer, W. Neithardt, D. Emmrich and D. Just, Structural Optimization of Machine Tools including the static and dynamic Workspace Behavior, The 36th CIRP-International Seminar on Manufacturing Systems, (2003).

[3] O. Müller, P. Häußler, R. Lux, B. Llzhöfer and A, Albers, Automated Coupling of MDI/ADAMS and MSC. Construct for the Topology and Shape Optimization of Flexible Mechanical Systems, 1999 International ADAMS Users' Conference, (1999).

[4] P. Häußler, D. Emmrich, O. Müller, B. Llzhöfer, L. Nowicki and A. Albers, Automated Topology Optimization of Flexible Components in Hybrid Finite Element Multibody Systems using ADAMS/Flex and MSC. Construct, MDI 2001 European Users Conference, (2001).

[5] MSC Inc., ADAMS user manual, Appendix D, Theoretical Background, (2003).

[6] Z. Zhou, G. L. Duan and L. Yue, Research on Rigid-flexible Coupling Model and Dynamic Load Analysis Method of Hammer Crusher, Coal Mine Machinery, 32, 5 (2011).

[7] MSC Inc., MSC ADAMS reference manual.

[8] D. McLean, MD/Nastran Linear Static Analysis User's Guide, version 2010, (2010).
