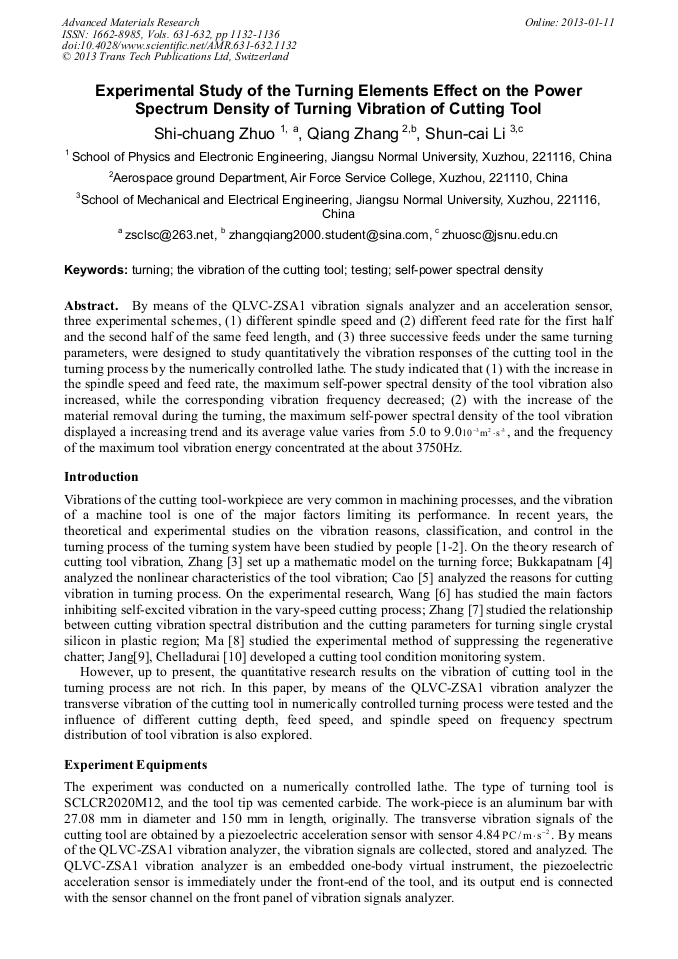

Experimental Study of the Turning Elements Effect on the Power Spectrum Density of Turning Vibration of Cutting Tool

Abstract:

By means of the QLVC-ZSA1 vibration signals analyzer and an acceleration sensor, three experimental schemes, (1) different spindle speed and (2) different feed rate for the first half and the second half of the same feed length, and (3) three successive feeds under the same turning parameters, were designed to study quantitatively the vibration responses of the cutting tool in the turning process by the numerically controlled lathe. The study indicated that (1) with the increase in the spindle speed and feed rate, the maximum self-power spectral density of the tool vibration also increased, while the corresponding vibration frequency decreased; (2) with the increase of the material removal during the turning, the maximum self-power spectral density of the tool vibration displayed a increasing trend and its average value varies from 5.0 to 9.0 , and the frequency of the maximum tool vibration energy concentrated at the about 3750Hz.

• Periodical: Advanced Materials Research (Volumes 631-632)
• Pages: 1132-1136
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.631-632.1132
• Online since: January 2013
• Authors: Shi Chuang Zhuo, Qiang Zhang, Shun Cai Li
• Keywords: Self-Power Spectral Density, Testing, Turning, Vibration of the Cutting Tool

References

[1] Lee Jongkil; Kim Dae-hwan: Experimental modal analysis and vibration monitoring of cutting tool support structure. Int. J. Mech. Sci. 1995, 37, (11), 1133-1146.

DOI: 10.1016/0020-7403(95)00029-w

[2] D.E. Dimla Snr.: The correlation of vibration signal features to cutting tool wear in a metal turning operation.  International Journal of Advanced Manufacturing Technology, 2002, 19, (10), 705-713.

DOI: 10.1007/s001700200080

[3] D. Zhang; J. He; Y. Xu; H. Shen: The study on the relationship between vibration frequency and cutting rotation speed in dynamic cutting process. Journal of Tianjin University, 1994, 27(4), 517-520 (in Chinese).

[4] T.S. Bukkapatnam, Satish; Lakhtakia, Akhlesh;  R.T. Kumara, Soundar; Satapathy, Goutam: Characterization of nonlinearity of cutting tool vibrations and chatter. American Society of Mechanical Engineers, Materials Division (Publication) MD, 1995, 69-2, 1207-1223.

[5] X. Cao: The study on cnc turning of cutting vibration problems. J. Zhangzhou Technical Institute, 2006, 8, (4): 24-27.

[6] L. Wang; Y. Liu; X. Dong: Research on the result of variable-speed cutting suppression to self-excited vibration in the cutting process. Mechanical Engineer, 2004, (3): 39-41 (in Chinese).

[7] J. Zhang; W . Zong; T. Sun: The vibration frequency analysis of silicon tool in ultra-precision turning. Nanotechnology and Precision Engineering, 2010, 8(6), 491-497.

[8] C. Ma; J. Ma; Eiji Shamoto; Moriwaki, Toshimichi: Analysis of regenerative chatter suppression with adding the ultrasonic elliptical vibration on the cutting tool. Precision Engineering, 2011, 35, (2), 329-338.

DOI: 10.1016/j.precisioneng.2010.12.004

[9] J.L. Jang; Y.S. Tarng: Study of the active vibration control of a cutting tool. J. Materials Processing Technology, 1999, 95, (1-3), 78-82.

DOI: 10.1016/s0924-0136(99)00269-1

[10] H. Chelladurai ; V.K. Jain; N.S. Vyas: Development of a cutting tool condition monitoring system for high speed turning operation by vibration and strain analysis. J. Advanced Manufacturing Technology, 2008, 37, (5-6), 471-485.

DOI: 10.1007/s00170-007-0986-z
