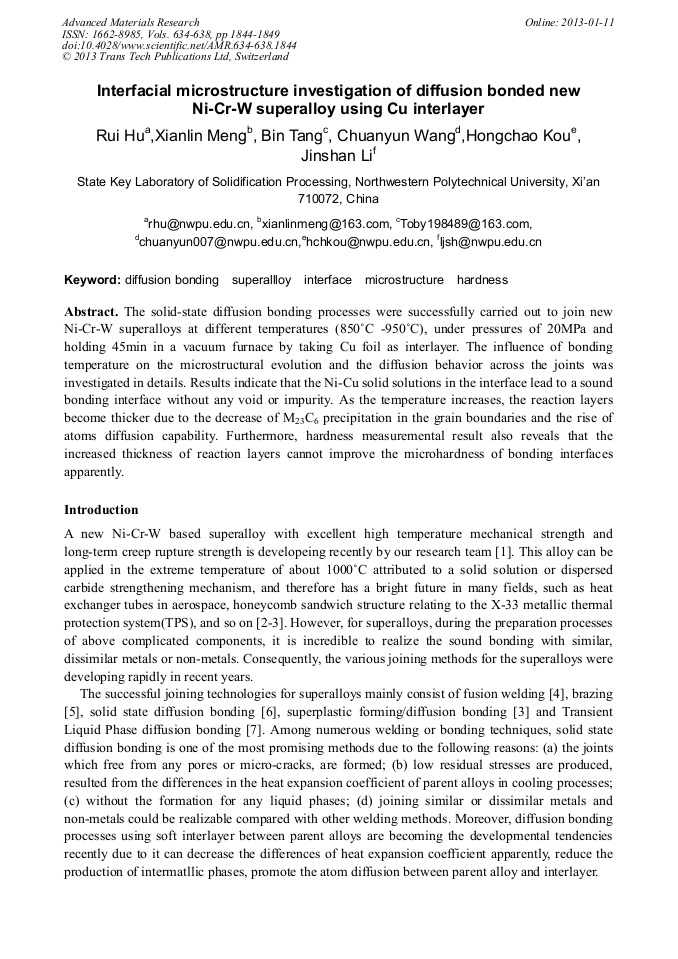

Interfacial Microstructure Investigation of Diffusion Bonded New Ni-Cr-W Superalloy Using Cu Interlayer

Abstract:

The solid-state diffusion bonding processes were successfully carried out to join new Ni-Cr-W superalloys at different temperatures (850°C-950°C), under pressures of 20MPa and holding 45min in a vacuum furnace by taking Cu foil as interlayer. The influence of bonding temperature on the microstructural evolution and the diffusion behavior across the joints was investigated in details. Results indicate that the Ni-Cu solid solutions in the interface lead to a sound bonding interface without any void or impurity. As the temperature increases, the reaction layers become thicker due to the decrease of M23C6 precipitation in the grain boundaries and the rise of atoms diffusion capability. Furthermore, hardness measuremental result also reveals that the increased thickness of reaction layers cannot improve the microhardness of bonding interfaces apparently.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 1844-1849
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.1844
• Online since: January 2013
• Authors: Rui Hu, Xian Lin Meng, Bin Tang, Chuan Yun Wang, Hong Chao Kou, Jin Shan Li
• Keywords: Diffusion Bonding (DB), Hardness, Interface, Microstructure, Superalloy

References

[1] Y. Liu, R. Hu and J.S. Li: Mater. Sci. Eng. A. 141–147 (2009), p.508

[2] R. Watanabe, Y. Chiba and Yasugi, US Patent 4,006,015 (1977)

[3] M. L. Blosser, C. J. Martin, K. Daryabeigi, et al. ESTEC. The Netherlands, 1998.

[4] P. Gao, K. F. Zhang, B. G. Zhang, et al. Transactions of Nonferrous Metals Society of China, 2011, 21(2): s315-s322.

[5] X.G. Yang, C.L. Dong, D.Q. Shi,et al. Materials Science and Engineering:A 7005-7011(2011), p.528.

[6] W.B. Widodo, K.Oliver, A.Jarir,et al. Materials Science and Engineering, 2012,A538: 340–348.

[7] A. Ekrami, S. Moeinifar, A. H. Kokabi, et al. Materials Science and Engineering, 2007, A 456 (1-2): 93–98.

[8] G.H. Bai, J.S. Li and R. Hu: Mater. Sci. Eng. A. 1974–1978 (2011), p.528

[9] H.H. Liu, J.H.Ni, L.H.Wu, et al. Journal of Biomedical Materials Research Part B: Applied Biomaterials, 2010,93(1): 39-50.

[10] A.Elrefaey, W.Tillmann. Journal of Materials Processing Technology, 2009, 209(5): 2746–2752.

[11] H.Sabetghadama Z.A. Hanzakia,A.Araee,et al. Materials Characterization,2010,61(6): 626–634.

[12] J. Zhang, Q. Shen, G. Q. Luo, et al. Materials & Design, 2012, 39: 81-86.

[13] S. H. Chen, L. Q. Li and Y. B. Chen: Journal of Alloys and Compounds. 891-898(2011), p.509
