The Residual Bending Properties after Impact of CFRP Laminates with Voids

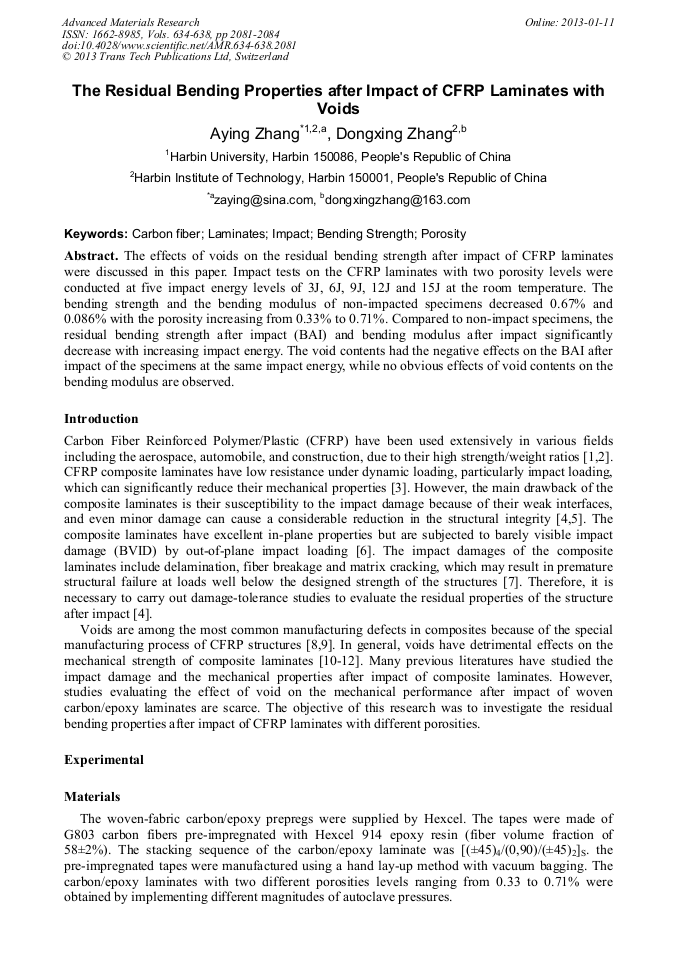

Article Preview

Abstract:

The effects of voids on the residual bending strength after impact of CFRP laminates were discussed in this paper. Impact tests on the CFRP laminates with two porosity levels were conducted at five impact energy levels of 3J, 6J, 9J, 12J and 15J at the room temperature. The bending strength and the bending modulus of non-impacted specimens decreased 0.67% and 0.086% with the porosity increasing from 0.33% to 0.71%. Compared to non-impact specimens, the residual bending strength after impact (BAI) and bending modulus after impact significantly decrease with increasing impact energy. The void contents had the negative effects on the BAI after impact of the specimens at the same impact energy, while no obvious effects of void contents on the bending modulus are observed.

You might also be interested in these eBooks
Advances in Chemical, Material and Metallurgical Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 634-638)

Pages:

2081-2084

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.634-638.2081

Citation:

Cite this paper

Online since:

January 2013

Authors:

A Ying Zhang, Dong Xing Zhang

Keywords:

Bending Strength, Carbon Fiber (CF), Impact, Laminates, Porosity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] O. Asi: Compos Struct. Vol. 90 (2009), p.43

Google Scholar

[2] F. Awaja, B. Arhatari and et al: Polym Degrad Stab. Vol. 94 (2009), p.814

Google Scholar

[3] K. H. Im, C. S. Cha and et al: Compos Part B. Vol. 32 (2001), p.669

Google Scholar

[4] C. Santiuste, S. Sanchez-Saez, and E. Barbero: Compos Struct. Vol. 92 (2010), p.25

Google Scholar

[5] M. F. S. F. Moura, A.T. Marques: Composites: Part A. Vol. 33 (2002), p.361

Google Scholar

[6] T. R. Andrew, B. Richard and W. H Giles: Int J Solids Struct. Vol. 45 (2008), p.4349

Google Scholar

[7] K.W. Kang, H. S Kim. and et al:: Mater Sci Eng. Vol. A483-484 (2008), p.333

Google Scholar

[8] P. D. Puglia, M. A. Sheikh and D. R. Hayhurstb: Composites Part A. Vol. 35(2004), p.223

Google Scholar

[9] E. A. Birt and R. A. Smith: NDT Condition Monitor. Vol. 46(2004), p.681

Google Scholar

[10] M. L. Costa, M.C. Rezende and S.F.M. Almeida: Compos. Sci. Technol. Vol. 61 (2001), p.2101

Google Scholar

[11] M. R. Wisnom, T. Reynolds and et al: Compos. Sci. Technol. Vol. 56(1996), p.93

Google Scholar

[12] A. R. Chambers, J. S. Earl and et al: Int. J. Fatigue. Vol. 28(2006), p.1389

Google Scholar
