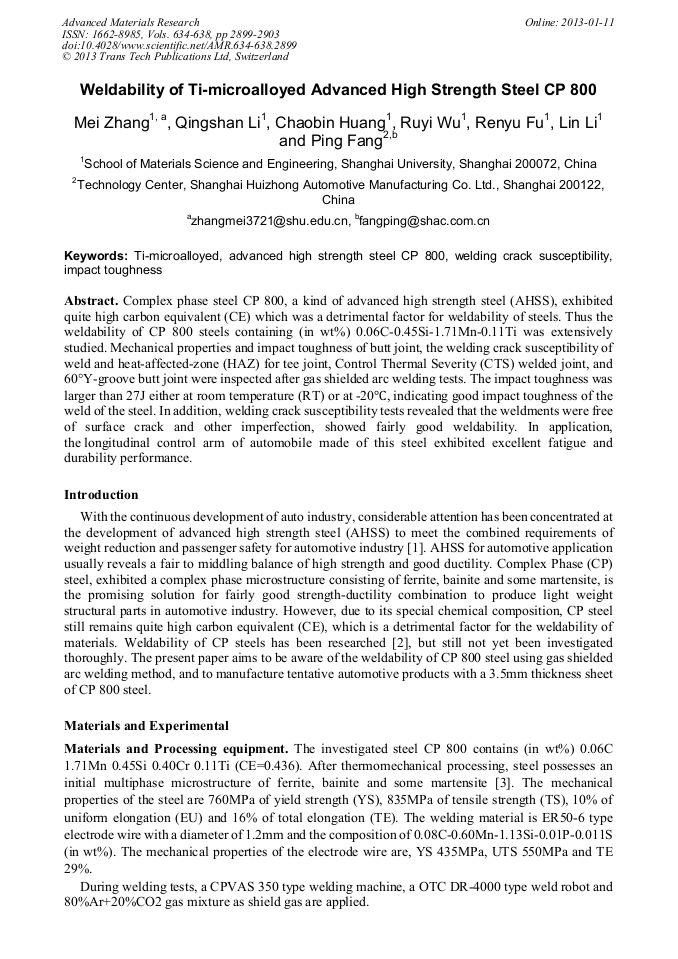

Weldability of Ti-Microalloyed Advanced High Strength Steel CP 800

Abstract:

Complex phase steel CP 800, a kind of advanced high strength steel (AHSS), exhibited quite high carbon equivalent (CE) which was a detrimental factor for weldability of steels. Thus the weldability of CP 800 steels containing (in wt%) 0.06C-0.45Si-1.71Mn-0.11Ti was extensively studied. Mechanical properties and impact toughness of butt joint, the welding crack susceptibility of weld and heat-affected-zone (HAZ) for tee joint, Control Thermal Severity (CTS) welded joint, and 60°Y-groove butt joint were inspected after gas shielded arc welding tests. The impact toughness was larger than 27J either at room temperature (RT) or at -20°C, indicating good impact toughness of the weld of the steel. In addition, welding crack susceptibility tests revealed that the weldments were free of surface crack and other imperfection, showed fairly good weldability. In application, the longitudinal control arm of automobile made of this steel exhibited excellent fatigue and durability performance.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 2899-2903
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.2899
• Online since: January 2013
• Authors: Mei Zhang, Qing Shan Li, Chao Bin Huang, Ru Yi Wu, Ren Yu Fu, Lin Li, Ping Fang
• Keywords: Advanced High Strength Steel CP 800, Impact Toughness, Ti-Microalloyed, Welding Crack Susceptibility

References

[1] B. C. De Cooman: Structure-properties Relationship in TRIP Steels Containing Carbide-free Bainite, Current Opinion in Solid State and Materials Science, 2004, 8, 285-303.

DOI: 10.1016/j.cossms.2004.10.002

[2] K. Han, W. M. Zeng, M. Zhang and L. Li: Welding ability of multiphase steel CP800, Hot Working Technology, 2011, 40, 31-33, 36.

[3] W. M. Zeng, M. Zhang, L. Li, R. Y. Fu: Continuous Cooling Transformation Characteristics of Ultra-high Strength Micro-alloy Complex Phase Steel, Shanghai Metals, 2010, 32, 19-22.

[4] Standards press of China: Weldability testing-Method of Y-groove cracking test, GB4675. 1-1984. (in Chinese).

[5] Standards press of China: Weldability testing-Method of controlled thermal severity cracking test, GB4675. 2-(1984).

[6] Standards press of China: Weldability testing-Method of cracking test of welded tee joint, GB4675. 3-(1984).

[7] M. Zhang, L. Li, R. Y. Fu, J.C. Zhang, and Z. Wan: Weldability of Low Carbon Transformation Induced Plasticity Steel, Journal of Iron & Steel Research, 2008 15, 61-65, 87.

DOI: 10.1016/s1006-706x(08)60250-2
