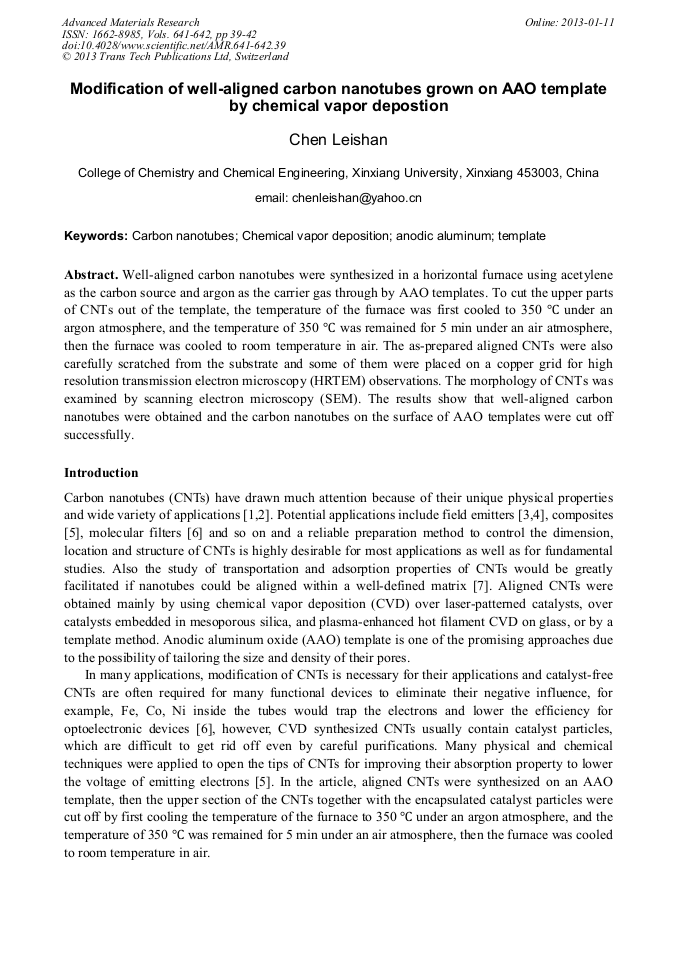

Modification of Well-Aligned Carbon Nanotubes Grown on AAO Template by Chemical Vapor Depostion

Lei Shan Chen

doi:10.4028/www.scientific.net/AMR.641-642.39

Paper Titles

Photosynthetic Responses of Four Urban Tree Species Exposed to Elevated CO₂ and/or Elevated O₃
p.22

Effect of Coal Dust on Coalbed Methane Wells Productivity
p.26

Heterogeneous Fenton System Dynamic Decolorization of Simulated Dye Wastewater
p.30

Action of Flow Rate of Mobile Phase in Chromatography
p.35

Modification of Well-Aligned Carbon Nanotubes Grown on AAO Template by Chemical Vapor Depostion
p.39

Synthesis of Carbon Onions with High Purity by Chemical Vapor Deposition
p.43

Controlled Synthesis of Carbon Spheres Using Iron Catalyst Supported on Aluminum Hydroxide
p.47

Controlled Growth of Nao-Carbon Metarials Based on Anodic Aluminum Oxide Nanotemplate
p.51

Sythesis of Molecularly Imprinted Polymers for the Binding and Recognition of Nonylphenol
p.55

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 641-642Modification of Well-Aligned Carbon Nanotubes...

Modification of Well-Aligned Carbon Nanotubes Grown on AAO Template by Chemical Vapor Depostion

Abstract:

Well-aligned carbon nanotubes were synthesized in a horizontal furnace using acetylene as the carbon source and argon as the carrier gas through by AAO templates. To cut the upper parts of CNTs out of the template, the temperature of the furnace was first cooled to 350 °C under an argon atmosphere, and the temperature of 350 °C was remained for 5 min under an air atmosphere, then the furnace was cooled to room temperature in air. The as-prepared aligned CNTs were also carefully scratched from the substrate and some of them were placed on a copper grid for high resolution transmission electron microscopy (HRTEM) observations. The morphology of CNTs was examined by scanning electron microscopy (SEM). The results show that well-aligned carbon nanotubes were obtained and the carbon nanotubes on the surface of AAO templates were cut off successfully.
