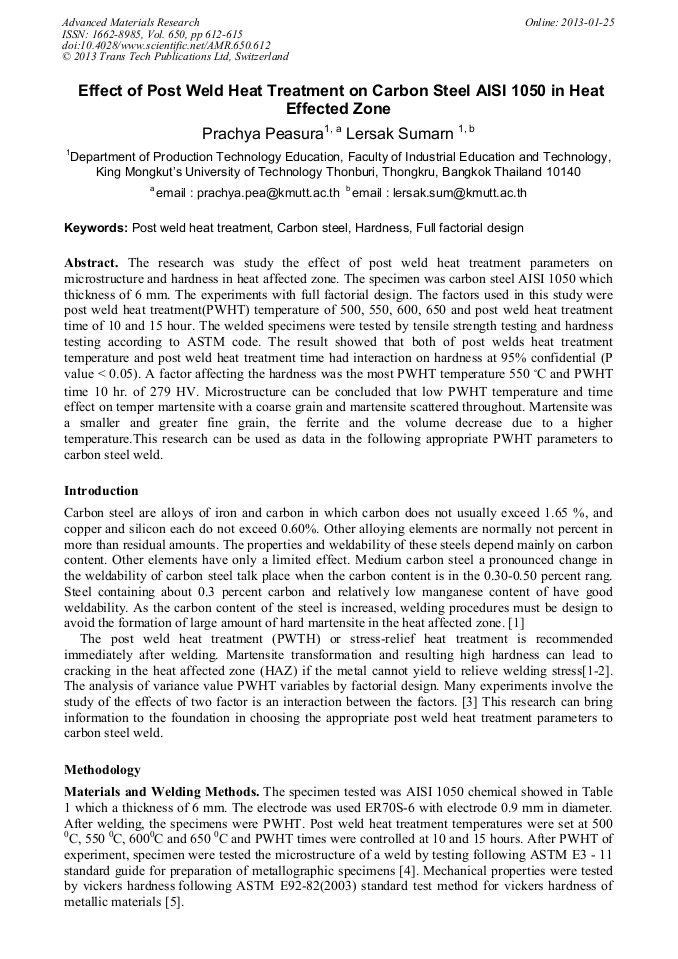

Effect of Post Weld Heat Treatment on Carbon Steel AISI 1050 in Heat Effected Zone

Abstract:

The research was study the effect of post weld heat treatment parameters on microstructure and hardness in heat affected zone. The specimen was carbon steel AISI 1050 which thickness of 6 mm. The experiments with full factorial design. The factors used in this study were post weld heat treatment(PWHT) temperature of 500, 550, 600, 650 and post weld heat treatment time of 10 and 15 hour. The welded specimens were tested by tensile strength testing and hardness testing according to ASTM code. The result showed that both of post welds heat treatment temperature and post weld heat treatment time had interaction on hardness at 95% confidential (P value < 0.05). A factor affecting the hardness was the most PWHT temperature 550 ๐C and PWHT time 10 hr. of 279 HV. Microstructure can be concluded that low PWHT temperature and time effect on temper martensite with a coarse grain and martensite scattered throughout. Martensite was a smaller and greater fine grain, the ferrite and the volume decrease due to a higher temperature.This research can be used as data in the following appropriate PWHT parameters to carbon steel weld.

• Periodical: Advanced Materials Research (Volume 650)
• Pages: 612-615
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.650.612
• Online since: January 2013
• Authors: Prachya Peasura, Lersak Sumarn
• Keywords: Carbon Steel, Full Factorial Design (FFD), Hardness, Post Weld Heat Treatment

References

[1] American Welding Society, Welding Handbook seventh edition, Volume4 Metals and Their Weldability, American welding society, (1982), p.14.

[2] H. Granjon, Fundamentals of Welding metallurgy, Abington publishing, (1991), pp.178-183.

[3] Douglas C. Montgomery, Design and analysis of experiments, John Wiley and son, (1991), p.197.

[4] The American society of testing and materials, ASTM E3 - 11 Standard Guide for Preparation of Metallographic Specimens, The American society of testing and materials, (2012).

[5] The American society of testing and materials, ASTM E92-82 standard test method for vickers hardness of metallic materials, The American society of testing and materials, (2003).

[6] American society for metal, Metals hand book ninth edition volume 9, American society for metal, (1985), pp.170-183.

[7] G.M. Evans and N. Bailey., Metallurgy of basic weld metal, Abington publishing, (1997), pp.108-117.
