Full-Scale Fatigue Test of Trough-to-Deck Plate Joints in Steel Orthotropic Deck

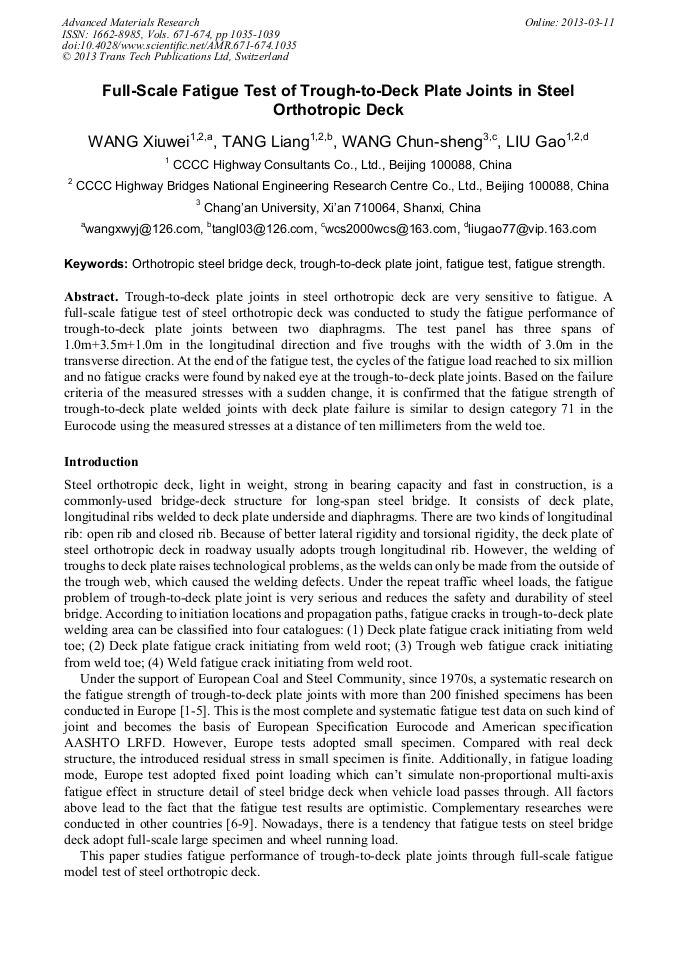

Abstract:

Trough-to-deck plate joints in steel orthotropic deck are very sensitive to fatigue. A full-scale fatigue test of steel orthotropic deck was conducted to study the fatigue performance of trough-to-deck plate joints between two diaphragms. The test panel has three spans of 1.0m+3.5m+1.0m in the longitudinal direction and five troughs with the width of 3.0m in the transverse direction. At the end of the fatigue test, the cycles of the fatigue load reached to six million and no fatigue cracks were found by naked eye at the trough-to-deck plate joints. Based on the failure criteria of the measured stresses with a sudden change, it is confirmed that the fatigue strength of trough-to-deck plate welded joints with deck plate failure is similar to design category 71 in the Eurocode using the measured stresses at a distance of ten millimeters from the weld toe.

• Periodical: Advanced Materials Research (Volumes 671-674)
• Pages: 1035-1039
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.671-674.1035
• Online since: March 2013
• Authors: Xiu Wei Wang, Liang Tang, Chun Sheng Wang, Gao Liu
• Keywords: Fatigue Strength, Fatigue Test, Orthotropic Steel Bridge Deck, Trough-to-Deck Plate Joint

References

[1] Maddox S J: The fatigue behaviour of trapezoidal stiffener to deck plate welds in orthotropic bridge decks. Supplementary Report 96UC, Transport and Road Research Laboratory, Structures Department, Bridges Division, Crowthorne, Berkshire, United Kingdom (1974).

[2] Janss J: Fatigue of welds in orthotropic bridge deck panels with trapezoidal stiffeners: submitted to Journal of Constructional Steel Research, 9 (1988), pp.147-154.

DOI: 10.1016/0143-974x(88)90005-3

[3] Bruls A: Assessment of fatigue life of orthotropic steel decks. Proceedings IABSE Workshop Remaining Fatigue Life of Steel Structures, Lausanne, Switzerland (1990), pp.259-269.

[4] Bignonnet A, Jacob B, Caracilli J, et al : Fatigue resistance of orthotropic steel decks. Proceedings IABSE Workshop Remaining Fatigue Life of Steel Structures, Lausanne, Switzerland (1990), pp.227-236.

[5] Tim Gurney: Fatigue of steel bridge decks. TRL State of the Art Review 8 (1992).

[6] Ya S, Yamada K, Ishikawa T: Fatigue: Evaluation of Rib-to-Deck Welded Joints of Orthotropic Steel Bridge Deck. Journal of Bridge Engineering 16(4) (2008), pp.492-499.

DOI: 10.1061/(asce)be.1943-5592.0000181

[7] Paul A. Tsakopoulos, John W. Fisher, et al: Full-Scale Fatigue Tests of Steel Orthotropic Decks for the Williamsburg Bridge: submitted to Journal of Bridge Engineering, ASCE 11(6) (2003), pp.323-333.

DOI: 10.1061/(asce)1084-0702(2003)8:5(323)

[8] Zhi-Gang Xiao，Kentaro Yamada，Samol Ya, et al: Stress analysis and fatigue evaluation of rib-to-deck joints in steel orthotropic decks : submitted to International Journal of Fatigue 30 (2008), pp.1387-1397.

DOI: 10.1016/j.ijfatigue.2007.10.008

[9] C.S. Wang, B.N. Fu: Full-scale fatigue test of orthotropic steel deck . Proceedings of Seventh International Conference on Advances in Steel Structures, Nanjing, China (2012), pp.710-716.

[10] EN 1993-1-9 Eurocode 3: Design of steel structures – Part 1-9: Fatigue . European Committee for Standardization, Brussels, Belgium (2005).

[11] EN 1993-2 Eurocode 3: Design of steel structures – Part 2: Steel bridges . European Committee for Standardization, Brussels, Belgium (2006).

[12] Kolstein M H, Wardenier J: Laboratory tests of the deck plate weld at the intersection of the trough and the crossbeam of steel orthotropic bridge decks . Proceedings 2nd Eurosteel Conference, Prague, Czech (1999), pp.411-414.
