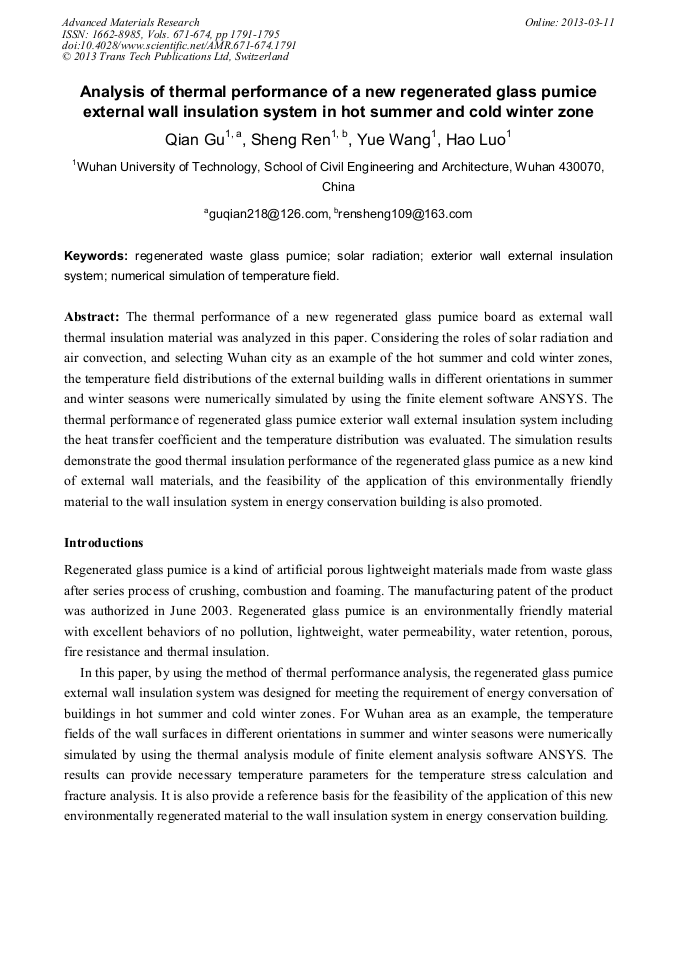

Analysis of Thermal Performance of a New Regenerated Glass Pumice External Wall Insulation System in Hot Summer and Cold Winter Zone

Abstract:

The thermal performance of a new regenerated glass pumice board as external wall thermal insulation material was analyzed in this paper. Considering the roles of solar radiation and air convection, and selecting Wuhan city as an example of the hot summer and cold winter zones, the temperature field distributions of the external building walls in different orientations in summer and winter seasons were numerically simulated by using the finite element software ANSYS. The thermal performance of regenerated glass pumice exterior wall external insulation system including the heat transfer coefficient and the temperature distribution was evaluated. The simulation results demonstrate the good thermal insulation performance of the regenerated glass pumice as a new kind of external wall materials, and the feasibility of the application of this environmentally friendly material to the wall insulation system in energy conservation building is also promoted.

• Periodical: Advanced Materials Research (Volumes 671-674)
• Pages: 1791-1795
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.671-674.1791
• Online since: March 2013
• Authors: Qian Gu, Sheng Ren, Yue Wang, Hao Luo
• Keywords: Exterior Wall External Insulation System, Numerical Simulation of Temperature Field, Regenerated Waste Glass Pumice, Solar Radiation

References

[1] Design standard for energy efficiency of residential buildings in hot summer and cold winter zone (In Chinese)[S]. Beijing: China Architecture & Building PRESS, (2010).

[2] Thermal design code for civil building (In Chinese)[S]. Beijing: China Architecture & Building PRESS, (1993).

[3] Hongmei Li, Weiliang Jin, Jiachun Ye. Temperature field simulation of building envelopes (In Chinese)[J]. Journal of Building Structures, 2004, 25(6): 93-98.

[4] Zhilei Li, Gang Gan, Jingchun Tang. Numerical simulation of temperature field of building structures considering radiation (In Chinese)[J]. Journal of Zhejiang University (Engineering Science), 2004, 38(7): 122-127.

[5] Jun Zhang, Zhenli Huang, Zhi-hua Li. Temperature fields of external walls of different thermal insulation placements (In Chinese)[J]. Journal of Harbin Engineering University, 2009, 30(12): 1356-1365.

[6] Qinyuan Zhang, Hongxing Yang. Typical meteorological database handbook for buildings (In Chinese)[M]. Beijing: China Architecture & Building PRESS, (2011).
