Elastic Modulus Reduction Method Based Limit Analysis of Steel Lined Reinforced Concrete Penstocks Containing Flaws

Abstract:

In the context of ultimate bearing capacity of steel lined reinforced concrete penstock (SLRCP) containing flaws, the use of the elastic modulus reduction method (EMRM) in conjunction with curve beam based internal force calculation is presented. The corrosion models for steel bar and lining are introduced from the literature. The SLRCP is considered bearing load together with lining and reinforced concrete, and its internal force is determined based on a simplified curve beam model. The element bearing ratio of SLRCP is given through the internal force and sectional strength, and is employed by the EMRM. The change of ultimate bearing capacity of some typical SLRCP within their operating life is then evaluated.

You might also be interested in these eBooks

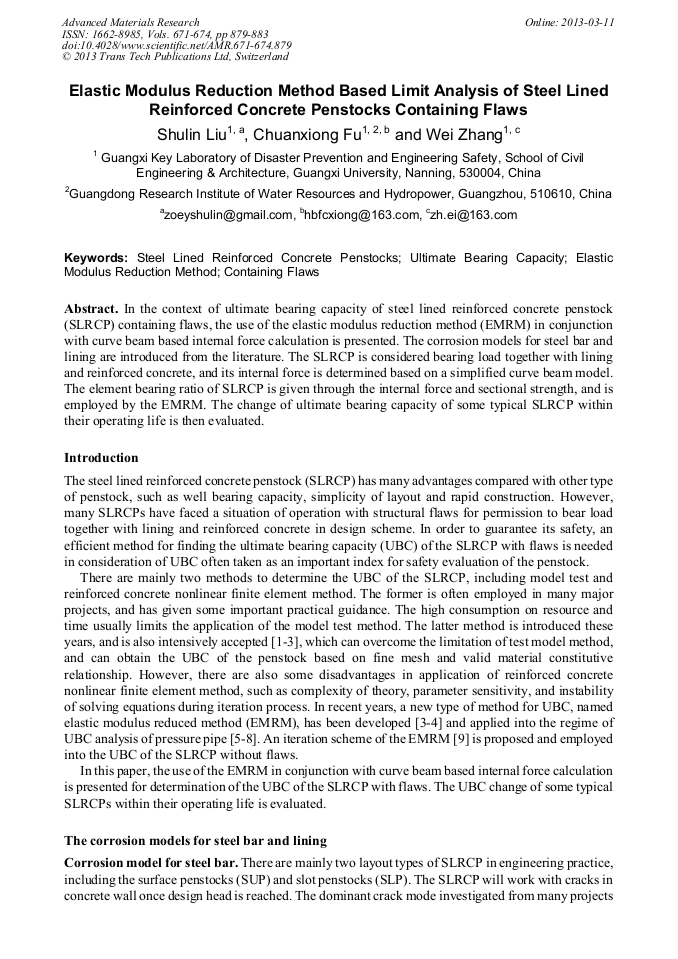

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 671-674)

Pages:

879-883

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.671-674.879

Citation:

Cite this paper

Online since:

March 2013

Authors:

Shu Lin Liu, Chuan Xiong Fu, Wei Zhang

Keywords:

Containing Flaws, Elastic Modulus Reduction Method, Steel Lined Reinforced Concrete Penstocks, Ultimate Bearing Capacity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Don ZR, Zhao QF and Song CC: Journal of Pressure Vessel Technology, Vol. 112 (1990), pp.57-64.

Google Scholar

[2] Wei Zhang, Hegao Wu, Kai Su: Journal of Hydroelectric Engineering, Vol. 24(2005), pp.70-74, in Chinese.

Google Scholar

[3] Wei Zhang, Hegao Wu: Journal of Hydroelectric Engineering, 27(2008), pp.73-78, in Chinese.

Google Scholar

[4] Yang L., Yu B. and Qiao Y: Acta Mechanica Solida Sinica, Vol. 22 (2009), pp.109-115.

DOI: 10.1016/s0894-9166(09)60095-1

Google Scholar

[5] Wei Zhang, Lufeng Yang and Wensheng Lu: Engineering Mechanics, Vol. 28(2011), pp.30-38, in Chinese.

Google Scholar

[6] Wei Zhang, Lufeng Yang and Xiaofeng Han: Journal of Hydraulic Engineering, Vol. 29(2010), pp.176-184, in Chinese.

Google Scholar

[7] Wei Zhang, Lufeng Yang and Xiaofeng Han: Journal of Hydroelectric Engineering, Vol. 30(2011), pp.149-156, in Chinese.

Google Scholar

[8] Lufeng Yang, Wei Zhang, Bo Yu, et al: Journal of Pressure Vessel Technology, Vol. 134(2012), pp.680-686.

Google Scholar

[9] Chuanxiong Fu, Wei Zhang, Lufeng Yang, et al: Water Power, Vol. 38(2012), pp.17-20, in Chinese.

Google Scholar

[10] Ou Geng: Steel corrosion and degradation rate of the concrete member (China Railway Publishing House, China 2010).

Google Scholar

[11] Safety assessment for in-service pressure vessels containing defect, GB/T19624-2004(2005).

Google Scholar
