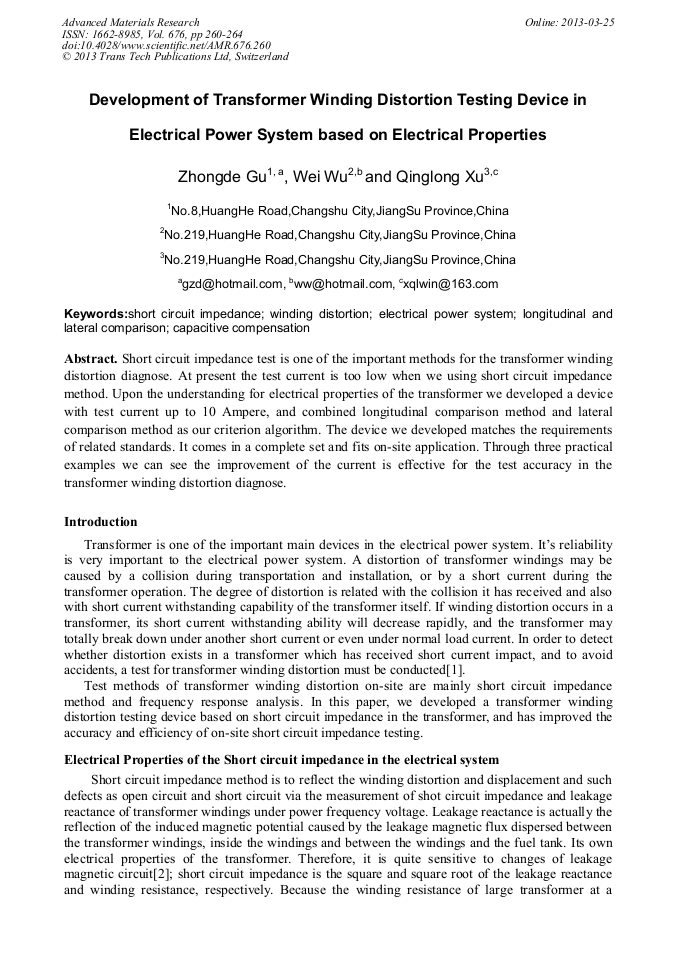

Development of Transformer Winding Distortion Testing Device in Electrical Power System Based on Electrical Properties

Abstract:

Short circuit impedance test is one of the important methods for the transformer winding distortion diagnose. At present the test current is too low when we using short circuit impedance method. Upon the understanding for electrical properties of the transformer we developed a device with test current up to 10 Ampere, and combined longitudinal comparison method and lateral comparison method as our criterion algorithm. The device we developed matches the requirements of related standards. It comes in a complete set and fits on-site application. Through three practical examples we can see the improvement of the current is effective for the test accuracy in the transformer winding distortion diagnose.

• Periodical: Advanced Materials Research (Volume 676)
• Pages: 260-264
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.676.260
• Online since: March 2013
• Authors: Zhong De Gu, Wei Wu, Qing Long Xu
• Keywords: Capacitive Compensation, Electrical Power System, Lateral Comparison, Longitudinal Comparison, Short Circuit Impedance, Winding Distortion

References

[1] Discussion on testing technology of wingding deformation in transformer using short impedance.

[2] Experiment and analysis for condition tested electrical transformer windings using impedance method, north china electric power, 46-49，No.12,(1999)

[3] Diagnosis of Winding Deformation of Transformer by Impedance Method and FRA,High voltage engineering, Vol.25 No.2 1999.7

[4] Sun Xiongfei et al. "Research on On-line Monitoring Devices of the Transformer Winding Distortion based on the SCM" Jiangsu Salt Science & Technology 2006.3.

[5] Liu Rui et al. "The Design of Transformer Winding Distortion On-line Monitoring System based on the DSP" High and New Technology, 1-2, 2010, No.19

[6] Zhang Shuchang "Tester of Transformer Winding Distortion based on LabVIEW" Jiangxi Electric Power, 33,2009No.5, 38-41

[7] Design method of virtual instrument software based on industrial control computer,electronic measurement technology, 2006.8，Vol29,No.4

[8] The research on testing winding deformation of transformers by manifold ways and means

[9] Application of lateral comparison approach in testing transformer winding deformation,Guangdong electric power, vol.13No.4,2000.8

[10] The Condition-based Maintenance and Testing Code of Power Transmission and Transformation Equipment" and formulation explanations Q/GDW168-(2008)
