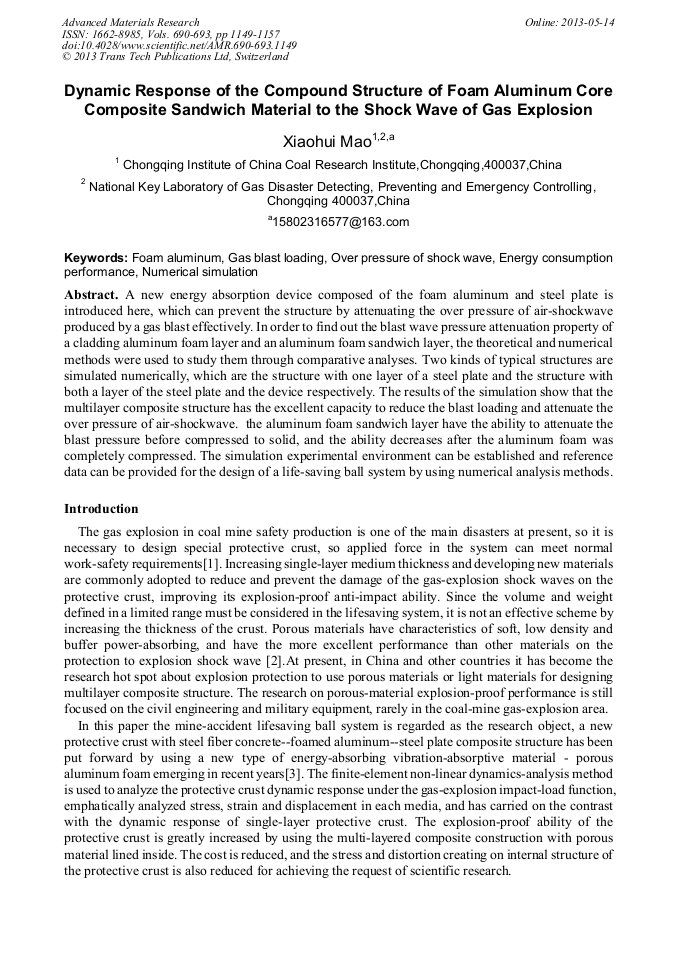

Dynamic Response of the Compound Structure of Foam Aluminum Core Composite Sandwich Material to the Shock Wave of Gas Explosion

Abstract:

A new energy absorption device composed of the foam aluminum and steel plate is introduced here, which can prevent the structure by attenuating the over pressure of air-shockwave produced by a gas blast effectively. In order to find out the blast wave pressure attenuation property of a cladding aluminum foam layer and an aluminum foam sandwich layer, the theoretical and numerical methods were used to study them through comparative analyses. Two kinds of typical structures are simulated numerically, which are the structure with one layer of a steel plate and the structure with both a layer of the steel plate and the device respectively. The results of the simulation show that the multilayer composite structure has the excellent capacity to reduce the blast loading and attenuate the over pressure of air-shockwave. the aluminum foam sandwich layer have the ability to attenuate the blast pressure before compressed to solid, and the ability decreases after the aluminum foam was completely compressed. The simulation experimental environment can be established and reference data can be provided for the design of a life-saving ball system by using numerical analysis methods.

• Periodical: Advanced Materials Research (Volumes 690-693)
• Pages: 1149-1157
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.690-693.1149
• Online since: May 2013
• Authors: Xiao Hui Mao
• Keywords: Energy Consumption Performance, Foam Aluminum, Gas Blast Loading, Numerical Simulation, Over Pressure of Shock Wave

References

[1] LIN Bai-quan, CHANG Jian-hua, ZHAI Cheng. Analysis on coal mine safety situation in China and its countermeasures [J]. China Safety Science Journal, 2006, 16(5):42-46.

[2] WANG Yu-xin, GU Yuan-xian, SUN Ming. Blast-resistant calculation of compound structure with porous material under impact load [J]. Acta Armamentarii, 2006, 27 (2): 375-379.

[3] ZHANG Yu-zhou, YAO Bin,YE Jun-jun. Dynamic response of a life-saving ball system to the shock wave of gas explosion [J]. China Safety Science Journal,2008,18(10):92-97.

[4] ZHOU Xin-quan, WU Bin, XU Jin-jun. Basic characters of gas explosion in underground coal mines [J]. Chinese Coal, 2003, 28(9): 8-11.

[5] XU Jin-jun. The study on gas explosion wave propagation law and affected factors in mine [D]. Beijing: China University of Mining & Technology, 2003.

[6] JIA Zhi-wei, JING Guo-xun, CHENG Lei etal. Study on propagation rules about gas explosion shock wave in the laneway with abrupt change of sectional area [J]. China Safety Science Journal, 2007, 17(3): 92-94.

[7] SI Rong-jun. Study on the propagation laws of gas and coal dust explosion in coal mine [D].Qingdao: Shandong University of Science and Technology, 2007.

[8] SI Rong-jun, WANG Chun-qiu. Experimental research on the influence of gas on the character of coal dust explosion [J]. China Safety Science Journal, 2006,16(12):86-91.

[9] ZHAO Kai. The attenuation and dispersion effects on explosive wave of layered protective engineering [D].Hefei: University of Science and Technology of China,2007.

[10] CHEN Wang-hua, ZHU Wui-huaa, PENG Jin-hua etal. Gap test investigation of rigid polyurethane foam plastics [J]. Explosion and Shock Waves,1997,17(3): 281-284.

[11] Mines R A W. A one-dimensional stress wave analysis of a lightweight composite armour [J].Composite Structures, 2004,64: 55-62.

DOI: 10.1016/s0263-8223(03)00213-7

[12] Bathe K J. ADINA users'manual [M]. Watertown: ADINA R and D Inc., 2004:452-483.

[13] Hanssen A G, Enstock L, Langseth M. Close-range blast loading of aluminum foam panels [J]. International Journal of Impact Engineering, 2002, 27(6): 593- 618.

DOI: 10.1016/s0734-743x(01)00155-5

[14] ZUO Xiao-qing, ZHAO Yong, ZHANG Xi-qiu etal. On the fabricating and compressive property of aluminum foam [J].Powder Metallurgy Technology, 2006, 24(3): 203-208.

[15] JIAO Chu-jie, SUN Wei, GAO Pei-zheng. Study on steel fiber reinforced high strength concrete subject to blast loading [J]. Engineering Mechanics, 2008,25(3):158-165.
